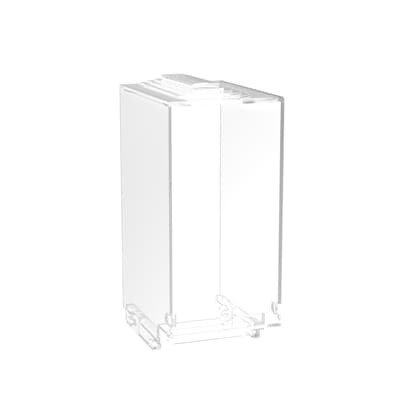

ABB 1SCA022732R1880 OSS250T1L/3 Terminal Shroud - RoHS
Part Number: 1SCA022732R1880
Quick Summary
ABB 1SCA022732R1880 terminal shroud protects OSS250T1L/3 terminals in ABB LV switchgear. Maintenance teams often confront exposed terminations during commissioning and routine service, risking electric shock and downtime. This accessory carries CMRT, Reach declarations, and RoHS compliance, ensuring materials meet global sustainability and regulatory requirements. The compact, lightweight design fits neatly into existing panels, reducing installation time and eliminating extra hardware. With a 1 piece minimum order, it supports efficient procurement for high-mix, low-volume configurations. Compatible with OS and OSM switches and the OS1GB catalog ecosystem, it delivers reliable protection without sacrificing accessibility or serviceability. In short, it helps engineering teams improve safety, compliance, and uptime while keeping total cost of ownership in check.
Product Information
Extended Description
1SCA022732R1880 ABB: OSS250T1L/3 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
No Instructions and Manuals needed
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
53 mm
Product Net Height
121.6 mm
Product Net Depth / Length
74.7 mm
Product Net Weight
0.008 kg
Package Level 1 Units
bag 3 piece
Package Level 1 Width
200 mm
Package Level 1 Depth / Length
100 mm
Package Level 1 Height
100 mm
Package Level 1 Gross Weight
0.008 kg
Package Level 1 EAN
6417019237268
Special Functions
L/3
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
Feature: The terminal shroud has precise dimensions of 53 mm width, 121.6 mm height and 74.7 mm depth with a net weight of 0.008 kg, enabling a compact fit within crowded control panels. Business Impact: Reduces panel footprint and weight, improving overall installation efficiency and easing panel routing. Application: Ideal for OSS250T1L/3 configurations in ABB OS/OSM systems. Feature: CMRT, Reach declarations, and RoHS compliance ensure regulatory alignment across supply chains. Business Impact: Simplifies supplier audits and compliance reporting, reducing risk and potential delays. Application: Suitable for industries with strict material and sourcing standards. Feature: Minimum Order Quantity of 1 piece and packaging as bag-level units (3 pieces per bag) streamline procurement and stocking for project-based manufacturing. Business Impact: Improves inventory planning, lowers procurement lead times, and supports high-mix, low-volume production. Application: Fits procurement workflows for panel builders and system integrators. Feature: Country of Origin listed as Finland (FI) and compatibility with OS/OSM family enhances supply reliability and traceability. Business Impact: Strengthens supplier collaboration and traceability throughout the lifecycle. Application: Useful for global projects requiring consistent origin data. Feature: Compatibility with OS switches and OS1GB catalog ecosystem ensures straightforward installation without additional adapters. Business Impact: Reduces installation complexity and service downtime, improving uptime. Application: Applicable to ABB OS/OSM installations in motor drives and switchgear panels. Feature: ETIM, eClass, and WEEE classifications support cataloging, procurement, and regulatory reporting. Business Impact: Improves data quality for ERP and procurement systems, aiding compliance and lifecycle management. Application: Integrates with enterprise data models in industrial automation projects.
Get a Quick Quote for a ABB 1SCA022732R1880
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022732R1880?
Enquire Now
FAQs
Install the shroud over the OSS250T1L/3 terminal block after confirming the OS/OSM mounting orientation. Align the shroud edges with the terminal layout, gently press until seating is secure, and verify there is no obstruction to terminal access. The unit ships in a bag containing three pieces, which supports quick stocking and panel revisions.
The shroud measures 53 mm in width, 121.6 mm in height, and 74.7 mm in depth, with a net weight of 0.008 kg per piece. Plan for these dimensions in enclosure clearances and ensure no interference with neighboring components to maintain safe clearance and service access.
Yes. It is designed for ABB OSS250T1L/3 terminals and is compatible with the OS/OSM family and OS1GB catalog ecosystem. This ensures straightforward integration into existing ABB low-voltage switchgear panels without needing extra adapters.
The shroud includes CMRT (Conflict Minerals Reporting Template), Reach Declaration, and RoHS compliance, with RoHS status aligned to EU Directive 2011/65/EU and 2015/863 amendments. It is also classified under ETIM EC002498 and eClass V11.1 27371392, and WEEE category indicates product not in the WEEE scope.
Minimum Order Quantity is 1 piece, with packaging described as bag 3 piece. The country of origin is Finland (FI), and customs tariff is 85389099., enabling straightforward import and predictable lead times for global projects. This supports efficient stocking for high-mix, low-volume assemblies.
