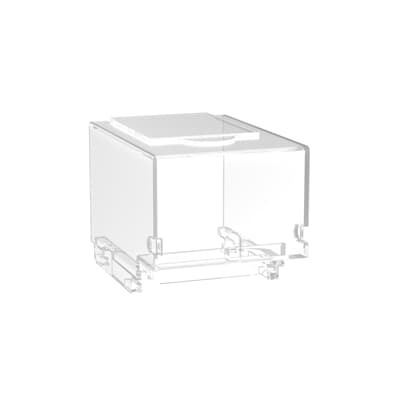

ABB 1SCA022732R2180 Terminal Shroud - CMRT/RoHS
Part Number: 1SCA022732R2180
Quick Summary
ABB 1SCA022732R2180 Terminal Shroud is a protective accessory for ABB OS switches, enabling safe, reliable wiring in panel assemblies. Engineers often face exposed terminals that slow installation and increase risk during maintenance; this shroud mitigates that by providing a secure, compliant enclosure. The solution carries CMRT, Reach, and RoHS declarations, supporting responsible sourcing and regulatory alignment while staying compatible with ABB OS and OS1GB catalogs. By simplifying installation and reducing rework, it helps minimize downtime in high-mix, low-volume environments. Overall, the terminal shroud delivers safety, compliance, and procurement efficiency as part of a robust low-voltage switch technology ecosystem.
Product Information
Extended Description
1SCA022732R2180 ABB: OSS250T1S/4 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
No Instructions and Manuals needed
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
53 mm
Product Net Height
51.8 mm
Product Net Depth / Length
74.7 mm
Product Net Weight
0.012 kg
Package Level 1 Units
bag 4 piece
Package Level 1 Width
200 mm
Package Level 1 Depth / Length
100 mm
Package Level 1 Height
100 mm
Package Level 1 Gross Weight
0.012 kg
Package Level 1 EAN
6417019237299
Special Functions
S/4
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Finland)
3642476
Feature → Business Impact → Application: The OSS250T1S/4 terminal shroud delivers robust protection for live terminals, reducing contact risk and contamination, which translates to safer maintenance and longer component life in panel assemblies. This protection supports faster commissioning and fewer rework cycles, lowering overall project cost while improving safety metrics on site. The design integrates with ABB OS and OS1GB lineups, enabling seamless retrofits in existing installations without major rework, saving time and material costs. Feature → Business Impact → Application: CMRT, Reach, and RoHS declarations provide regulatory assurance for global supply chains, reducing risk in audits and supplier qualification. This enables procurement teams to meet sustainability and compliance objectives while maintaining steady stock of essential spare parts. Feature → Business Impact → Application: Dimensions and weight (53 mm width, 51.8 mm height, 74.7 mm depth, 0.012 kg) support compact mounting in crowded panels, improving cable routing and reducing enclosure footprint. These physical specs also simplify packaging, shipping, and on-site handling, ultimately lowering logistics costs. Feature → Business Impact → Application: Compatibility with manufacturer data (OS and OSM catalog references) and availability in bag packaging (4 pieces per bag) streamline stocking, picking, and kitting for maintenance teams performing routine replacements and spares.
Get a Quick Quote for a ABB 1SCA022732R2180
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022732R2180?
Enquire Now
FAQs
Yes. The OSS250T1S/4 is designed to fit ABB OS switches and fusegear as part of the OS and OS1GB catalog family. It enables quick retrofits and clean wiring harness routing, helping minimize downtime during installation and maintenance.
Key dimensions are 53 mm width, 51.8 mm height, and 74.7 mm depth, with a net weight of 0.012 kg. These compact specs support dense panel layouts and easier handling during assembly and field replacements.
The shroud is ideal for low-voltage switchgear assemblies in industrial panels, especially where safety, reliable wiring, and regulatory compliance are priority. It aligns with CMRT, Reach, and RoHS requirements for global deployments.
The product carries CMRT, Reach Declaration, and RoHS Information, with RoHS Status indicating compliance with EU Directive 2011/65/EU and Amendment 2015/863. WEEE and E-number Finland details are also documented when relevant for regional reporting.
By protecting terminals from dust and accidental contact, the shroud reduces unplanned maintenance and rework. This improves mean time between failures (MTBF), shortens commissioning time, and lowers lifecycle costs for panel assemblies.
