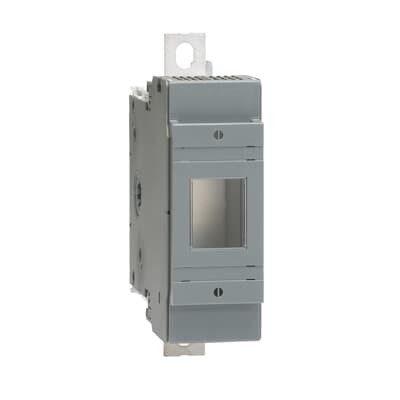

ABB 1SCA022735R9260 OSP250N Fourth Pole - RoHS Status

Feature → Business Impact → Application: Screw mounting provides a secure, vibration‑resistant installation in demanding environments, reducing loose connections and maintenance downtime. This translates to improved equipment uptime and safer panel assemblies in automotive, packaging, and process industries where OS switches are used. Feature → Lug terminals enable rapid, low‑resistance terminations, cutting field wiring time and minimizing thermal buildup in crowded control cabinets. Application: Machine tools and conveyors benefit from faster installation and dependable current paths for multi‑pole configurations. Feature → Main Circuit 690 V AC rating expands applicability to standard LV distribution in industrial facilities, enabling one part to serve diverse machines without rework. Feature → Power loss of 13 W at rated current lowers heat generation and cooling loads, contributing to cooler panels and reduced cooling costs over the life of the installation. Feature → Dimensions 44 mm width, 199 mm height, 130 mm depth offer a compact footprint ideal for slim enclosures and tight panel layouts. Feature → Weight 1.2 kg supports robust field installation without adding excessive payload to switchgear assemblies. Feature → Country of Origin Finland provides supply‑chain transparency and traceability for regulated markets. Feature → Data sheets and mechanical drawings (osp250_.stp) accelerate engineering validation and cross‑team collaboration, reducing design iteration time. Feature → Minimum Order Quantity of 1 piece offers procurement flexibility for spare parts and incremental upgrades in seasonally adjusted production lines. Compatibility and installation advantages: This fourth pole is designed to integrate with ABB OS series devices, ensuring consistent mechanical fit and electrical compatibility across OS200–OS250 configurations, with documented torque range (30 … 44 N·m) to secure reliable connections. Industry context: For panel builders and end users, the combination of authoritative documentation, RoHS/REACH compliance, and CMRT transparency supports audit readiness and sustainability targets while reducing risk during commissioning and long‑term operation.
