ABB 1SCA022741R8960 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA022741R8960
Quick Summary
The ABB 1SCA022741R8960 switch-disconnector isolates four-pole power with front-operation for reliable panel isolation in industrial control environments. Engineers often struggle with limited space, wiring complexity, and the need to meet evolving compliance documentation during panel builds. This device carries IEC 60947-3, UL 98, and CSA C22.2 NO.4 certifications, with CE conformity, ensuring global applicability. Designed for base mounting with lug terminals, the unit excludes the handle and shaft while including a terminal bolt kit to streamline installation. By combining robust isolation, straightforward mounting, and proven standards compliance, it delivers safer, more maintainable motor feeders and distribution topologies while supporting faster commissioning and lower lifecycle costs.
Product Information
Extended Description

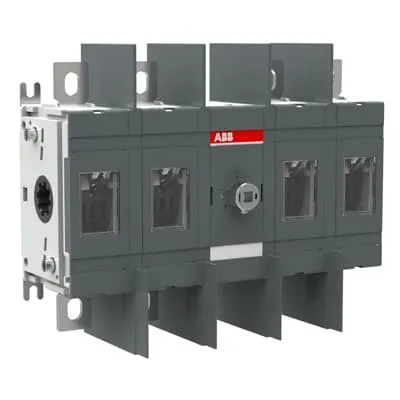

1SCA022741R8960 ABB: 4-pole, front operated, base mounted non-fusible diconnect switch, handle and shaft are not included, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200U22, dwg-file | OT200U22, dxf-file
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
217.5 mm
Product Net Height
170 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.9 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
190 mm | 7.5 in
Package Level 1 Depth / Length
290 mm | 11.4 in
Package Level 1 Height
110 mm | 4.3 in
Package Level 1 Gross Weight
2 kg | 4.5 lb
Package Level 1 EAN
6417019240374
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism Between the Poles | 22 (Between the Poles)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
200 A
Horsepower Rating UL/CSA
(acc. to UL 200 V) 60 Hp | (acc. to UL 208 V) 60 Hp | (acc. to UL 240 V) 75 Hp | (acc. to UL 480 V) 150 Hp | (acc. to UL 600 V) 200 Hp
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Tightening Torque UL/CSA
275 in·lb
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
UL Certificate
cULus certificate OT200-400
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Four-pole, front-operated, base-mounted design. Benefit: Provides immediate, guaranteed isolation across all poles, reducing downtime risk during maintenance and enabling simpler interconnection in control panels. Application: Ideal for motor feeders and switchgear in MCCs and panel boards. Feature: High current capability with 200 A Ita/250 A Ie and AC-23A ratings at multiple voltages. Benefit: Supports demanding loads up to 250 A with reliable performance, improving panel throughput and reducing redundant components. Application: Used in 380–415 V, 500 V, and 690 V circuits across industrial drives. Feature: Rated insulation voltage of 1000 V and Icm up to 30 kA. Benefit: Enables safe operation in higher-energy systems without frequent device replacements, lowering total cost of ownership. Application: Suitable for medium-voltage switchgear and electrical rooms. Feature: Lug-terminal construction with a terminal bolt kit included. Benefit: Simplifies wiring, ensures secure connections, and minimizes field modification time. Application: Fast, compliant installation in new builds or retrofits. Feature: Mechanical durability rated at 20,000 cycles. Benefit: Longer service life reduces maintenance intervals and supports predictable maintenance planning. Application: Frequent switching scenarios in manufacturing lines. Feature: Front IP00 protection with base mounting. Benefit: Requires appropriate enclosure in clean environments while enabling compact layouts and neat internal wiring. Application: Panel-mounted installations in controlled factory floors. Feature: Fourth pole configuration (Right Side) with switched - simultaneous function. Benefit: Ensures synchronized isolation of all poles, improving safety during service and alignments with IEC 60947-3 requirements. Application: Motor control and multi-pole distribution schemes. Feature: Compliance and documentation footprint including CE Declaration of Conformity and RoHS/CMRT/Reach statements. Benefit: Eases regulatory submissions and supplier audits, reducing procurement risk. Application: Environments with strict supplier compliance expectations.
