ABB 1SCA022744R3130 Switch-Disconnectors IEC 60947-3
Part Number: 1SCA022744R3130
Quick Summary
ABB 1SCA022744R3130 Switch-Disconnectors is a 4-pole front-operated device designed for reliable isolation in control panels and machine applications. Engineers often face space constraints and mounting challenges when integrating isolators into compact panels; this solution balances size, access, and safety. It carries IEC 60947-3 compliance with CE declarations and BV/DNV GL certifications, ensuring global regulatory alignment and traceable quality. The 4-pole design with a black IP65 handle enhances operator safety in harsh environments, while a wide phase distance reduces wiring errors. For manufacturers, the OT200E04WP's base mounting and included terminal bolt kit simplify installation and future maintenance. ABB EcoSolutions documentation supports easier maintenance and lifecycle management.
Product Information
Extended Description

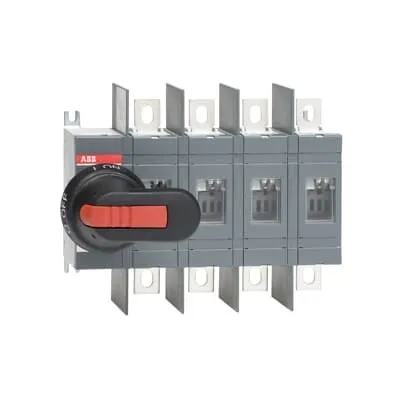

1SCA022744R3130 ABB: 4-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, wide phase distance, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
38c7f0e2-afdb-437f-bade-e99da7597d4a Finland (FI)
Simplified SCIP
13ef30fb-8f17-44e1-97ee-eca47022b2b0 Germany (DE) | b52ab488-d178-48a0-9be2-190579665b92 Bulgaria (BG) | 25b682b1-f2b9-4d49-9b75-6e6c90cdb808 Sweden (SE) | c7da4c6c-577c-41d8-8952-8f33230ab414 France (FR) | 3d1a096f-2fac-4f4f-920a-a708015be157 Germany (DE) | 4c5fa768-6999-4cd0-8664-706bdc4eb983 Belgium (BE) | 7b26ef58-78dc-4b7b-809f-0ba986f1e1c6 Estonia (EE) | 9e91db4e-54ab-446a-a754-52af98a3b52b Denmark (DK) | dfc42749-58ad-4fa0-845a-2863c121d2b9 France (FR) | 1740113b-d32b-4b3d-9bec-1f04900f6591 Poland (PL) | 74b2dac4-8074-493f-9bcc-d7c2caa6a991 Hungary (HU) | 079064e7-b493-49e3-bd30-58f791906f19 Italy (IT) | 57074ea9-b786-416b-b988-36adcf209ed7 Germany (DE) | c3888305-fb1f-4d12-94c6-d9624edded58 Netherlands (NL) | 52d8fe1c-c655-49fd-9d94-2488588d16df Hungary (HU) | 5ef355d7-4470-43d7-bbc4-12848042572d Norway (NO) | 368714d4-fd78-4479-813c-4f235bb14f2b Sweden (SE) | bbe8c4fa-dd14-4427-80d2-812bfb6d2fc8 Czech Republic (CZ) | 884cee89-0ee6-4d9e-a472-44ed52ef965a Poland (PL) | e6d202d7-b157-4381-9dec-249db8e8c200 Germany (DE) | 1bbf9cfe-9618-48d6-8492-2572f678b5c0 Croatia (HR) | 1eac861d-ee08-4e06-9ca8-c9166db2e3ea Germany (DE) | 1626d49b-6c31-4962-8a94-c52ea37ff8de Belgium (BE) | 3d9bd5f9-d4dc-408c-9ee2-61b989554c12 Spain (ES) | b28db08f-faf1-4bac-a1a0-0a249febc7b5 Poland (PL) | bc5a05eb-e246-4c20-89e3-6c4ba1114022 Portugal (PT) | ce18a56b-9708-4efa-9020-c768ca8cfe41 Greece (GR)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200...OT250E04W, dwg-file | OT200...OT250E04W, dxf-file | OT200-250E04W.stp | OT200-250E04W.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
212.5 mm
Product Net Height
170 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
2.075 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
190 mm
Package Level 1 Depth / Length
110 mm
Package Level 1 Height
290 mm
Package Level 1 Gross Weight
2.245 kg
Package Level 1 EAN
6417019241371
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Wide phase distance
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4.0 W
Rated Conditional Short-Circuit Current (Inc)
(315 A fuse, 500 V) 100 kA | (355 A fuse, 690 V) 80 kA | (250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 60 kW | (400 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
Wide phase distance
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 04 (Left Side)
Terminal Type
Lug terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
ATEX Certificate
No certification needed
BV Certificate
1SCC301103D0201
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
GL Certificate
1SCC301139D0201
LR Certificate
1SCC301144D0201
UL Certificate
No certification needed
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3661320
E-Number (Norway)
4337881
E-Number (Sweden)
3171187
The device delivers a 4-pole configuration with a front-operated mechanism, enabling rapid isolation with minimal panel depth. This design reduces downtime during maintenance and simplifies wiring, which translates to higher line availability in production lines. It is particularly suited for switchgear assemblies and panel-build projects where space is tight and predictable isolation is essential. The IP65-rated handle and shaft provide robust protection against dust and moisture, decreasing nuisance faults and maintenance visits in outdoor or wash-down environments. A wide phase distance simplifies routing and lowers arcing risk, improving overall system reliability in power distribution applications. The included terminal bolt kit and lug terminals (20 mm width) accelerate wiring and ensure secure, vibration-resistant connections. Compliance with IEC 60947-3 and a 200 A rated current provide confidence for large motor and feeder schemes, while 4P operation supports coordinated disconnections. Base mounting, lockable mechanism, and 20000 mechanical durability cycles support long service life and straightforward field servicing, reducing lifecycle costs for manufacturers and system integrators.
