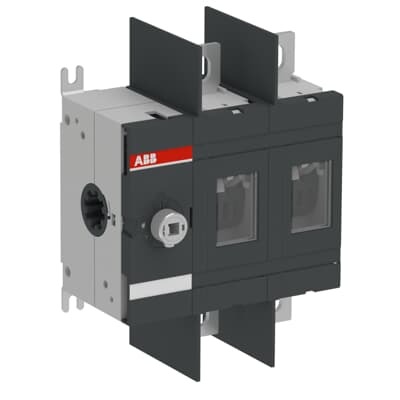

ABB 1SCA022749R3660 Switch-Disconnectors - IEC 60947-3 / UL 98
Part Number: 1SCA022749R3660
Quick Summary
ABB 1SCA022749R3660 is a front-operated, 2‑pole switch-disconnector designed for isolating main circuits in control panels and switchgear. This unit addresses common maintenance pain points by delivering reliable mechanical durability and a clear isolation path, reducing downtime during servicing. It complies with IEC 60947-3 and UL 98, CSA C22.2 NO.4 standards, and features a CE declaration to streamline procurement and audits. With base mounting and a compact footprint, it integrates smoothly into existing assemblies while the option to source a separate handle and shaft supports flexible configurations for OEMs and integrators. The product pairs with ABB EcoSolutions materials and ensures RoHS/EPD-compliant environmental handling, aligning with modern sustainability goals.
Product Information
Extended Description
1SCA022749R3660 ABB: Handle and shaft must be ordered separatly.
Lead Time
28 day
Made To Order
No
Product Sales Status
Active
Quote Only
No
Stocked At Warehouses
USSVCEXPU
Warranty Return
Product under warranty must be returned
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200...OT250U02, dwg-file | OT200...OT250U02, dxf-file | OT200-250U02.stp | OT200-250U02.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
126.5 mm
Product Net Height
170 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
190 mm | 7.5 in
Package Level 1 Depth / Length
290 mm | 11.4 in
Package Level 1 Height
110 mm | 4.3 in
Package Level 1 Gross Weight
1.2 kg | 2.6 lb
Package Level 1 EAN
6417019243313
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
2P
Operating Mode
Front operated
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism at the End of the Switch | 02 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
200 A
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
UL Certificate
cULus certificate OT200-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
