ABB 1SCA022750R5000 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA022750R5000
Quick Summary
ABB 1SCA022750R5000 switch-disconnector is designed for safe isolation of single-pole circuits in industrial control panels. Engineers often struggle with finding a compact, front-operable device that installs quickly and minimizes wiring complexity. This unit delivers IEC 60947-3 compliance along with RoHS, REACH, and TSCA declarations, while offering front IP00 protection for controlled environments. The 1P base-mounted design supports straightforward mounting, reducing panel space and enabling faster service windows. With a robust 200 A rating and clear terminal access, it provides dependable isolation in modern automation setups, helping you meet uptime targets and regulatory requirements without sacrificing footprint or compatibility.
Product Information
Extended Description

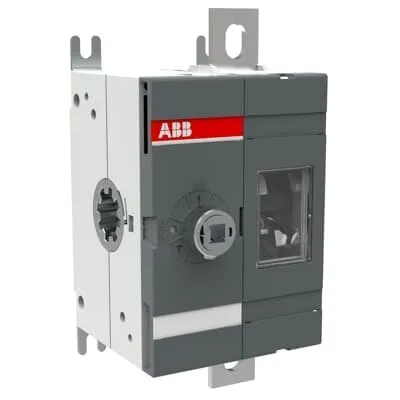

1SCA022750R5000 ABB: 1-pole, front operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
75.5 mm
Product Net Height
150 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
0.7 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm | 6.7 in
Package Level 1 Depth / Length
190 mm | 7.5 in
Package Level 1 Height
145 mm | 5.7 in
Package Level 1 Gross Weight
0.8 kg | 1.7 lb
Package Level 1 EAN
6417019243870
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
1P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4.0 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A | (1000 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 60 kW | (400 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 01 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: Front-operated 1P base-mounted switch-disconnector enables quick front access for maintenance, reducing downtime and improving safety during isolation procedures in control cabinets. This directly translates to faster repair cycles and lower labor costs in low- to mid-voltage automation panels. Application: suitable for compact electrical distribution in packaging lines or machine enclosures where space is at a premium. Feature → Business Impact → Application: 200 A rated operational current at up to 1000 V supports main circuit isolation for high-demand feeds, enabling reliable protection for motors and drives while keeping wiring simple. Application: ideal for manufacturing automation and process lines requiring robust power segmentation. Feature → Business Impact → Application: Short-circuit making capacity of 30 kA and short-time withstand current of 8 kA for 1 s provide strong fault tolerance, reducing arc-flash exposure and equipment damage. Application: critical in distribution panels facing potential fault events. Feature → Business Impact → Application: 1P design with lug terminals and standard tightening torque (15–22 N·m) ensures straightforward installation and secure terminations. Application: retrofit or new-build panels where ABB OT200-250 family components are preferred. Feature → Business Impact → Application: RoHS, REACH, CMRT, and EPD/DoC declarations ensure regulatory compliance and sustainability tracking, supporting green procurement and supplier audits. Application: regulated industries such as food and beverage, pharmaceuticals, and chemical processing where compliance is mandatory.
Get a Quick Quote for a ABB 1SCA022750R5000
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022750R5000?
Enquire Now
FAQs
This device uses base mounting with 1P configuration and lug terminals, allowing a compact footprint suitable for dense panels. Front-operated access simplifies servicing, while the included terminal bolt kit facilitates quick, secure terminations during installation.
Yes. It complies with IEC 60947-3 and provides 200 A rated current, 1000 V insulation voltage, 30 kA short-circuit making capacity at 690 V, and 8 kA for 1 s short-time withstand current, all with front IP00 protection for basic environmental performance.
The unit is designed for 1P panel installations with Lug terminals and base mounting. It includes CMRT, REACH, RoHS declarations, and an Environmental Product Declaration (EPD), supporting regulatory compliance and sustainable procurement.
Product net width is 75.5 mm, height 150 mm, depth 82.5 mm, and net weight 0.7 kg. Packaging info shows compact footprint and light weight (0.8 kg gross) for easy handling, reduced shipping costs, and straightforward enclosure fit checks.
Mechanical durability is rated at 20000 cycles, supporting long service life in continuous operation environments. Combined with front operation and simple lug-terminal wiring, this minimizes maintenance intervals and reduces long-term ownership costs.
