ABB 1SCA022750R5180 Switch-Disconnecter - IEC 60947-3
Part Number: 1SCA022750R5180
Quick Summary
ABB 1SCA022750R5180 is a switch-disconnecter used to safely isolate electrical circuits in industrial control panels. In fast-paced environments, engineers need dependable front-operated devices that simplify maintenance and minimize downtime. This product aligns with IEC 60947-3 standards, carries a CE Declaration of Conformity, and supports RoHS/REACH compliance for modern facilities. Its compact base-mount design, 1-pole configuration, and robust mechanical features enable quick installation and reliable locking in service. By pairing proven ABB EcoSolutions processes with clear environmental data and life-cycle transparency, it provides predictable performance, easier spares management, and reduced total-cost-of-ownership for panel builders and system integrators.
Product Information
Extended Description

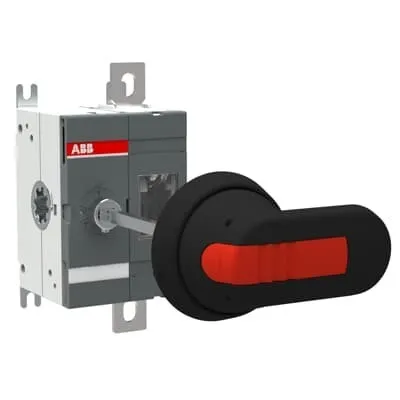

1SCA022750R5180 ABB: 1-pole, front operated, base mounted switch-diconnector with black IP65 handle and shaft, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
051cfd5e-3bd8-4ab5-9bed-265c78360604 Finland (FI)
Simplified SCIP
4c8f6744-0d46-4c23-b61c-9464ea15a9f9 Germany (DE) | ba577a28-eb72-4a4d-8596-3abb9e9bfe93 Denmark (DK) | 56f68811-43a2-443f-9fd9-e24a39ee82be Germany (DE) | fdd6543c-599d-4b06-8720-cd8f9d5a6508 Germany (DE) | be736e1e-e148-45bf-8471-00bfdb6f3bc1 Croatia (HR) | 97ac324c-c409-4476-bc9e-4b9967f7a43d Czech Republic (CZ) | 6880b374-e418-4dfe-b8a7-6d16630fb574 Poland (PL) | bcdfeaf5-7921-4a2b-afd1-3dd03ee5e855 Germany (DE) | e9127255-0384-4bae-b0d0-c0a06c72984d Germany (DE) | 41b5e407-a3f3-48f9-a7c6-68d49452e5e6 France (FR) | 27b2d52f-6c59-4170-8daa-407db8f2dbcb Poland (PL) | a4ebd199-6a0b-431b-b906-d0919ec58a5f Hungary (HU) | 4d5ca86b-44c9-496e-96f6-60a609efaed1 France (FR) | 97ab078f-6aa6-417d-8c56-298bbea731d8 Italy (IT) | 507a06bb-1e02-4375-bc32-dc140c17d506 Belgium (BE) | 405cbda9-f07f-40de-86b3-9ed9e520d42f Estonia (EE) | d9d49dce-0995-4539-8f11-92042fcfa32b Netherlands (NL) | 599d075d-7a58-453d-b09b-1648a327a7fd Hungary (HU) | 094f7ec3-7bf9-4075-a484-87c3ec1eec7a Sweden (SE) | 1de27282-9a00-4dfc-bdbe-3824e124885f Greece (GR) | 9e018556-d5b2-444a-8eb0-6be0625190fa Bulgaria (BG) | f2c85ea6-7be9-4394-8d7a-2b0c2f29729a Portugal (PT) | 1a4de548-583e-4d87-8de0-0b6c9a54b8f6 Sweden (SE) | dd4e0bca-e709-40b2-af4d-c8d6fe95b06d Poland (PL) | 36a63155-8f42-49bf-be1e-1dcf72a40aed Spain (ES) | 35463692-e4b3-47c9-b841-01218244e925 Belgium (BE) | 4a374a7a-0603-49f1-853b-fb688bd334d8 Norway (NO)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
75.5 mm
Product Net Height
150 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
0.8 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm | 6.7 in
Package Level 1 Depth / Length
190 mm | 7.5 in
Package Level 1 Height
145 mm | 5.7 in
Package Level 1 Gross Weight
1 kg | 2.1 lb
Package Level 1 EAN
6417019243887
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
1P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4.0 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A | (1000 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 60 kW | (400 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 01 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: One-pole, front-operated design with base mounting; Benefit: simplifies front-access installation and servicing, reduces footprint, and enables fast top-side or bottom-up wiring in tight control panels; Application: suitable for single-circuit isolation in industrial cabinets and MCCs. Feature: 200 A nominal operating current with 30 kA short-circuit making capacity at 690 V; Benefit: robust protection for motor and process circuits, lower risk of nuisance tripping, and greater system reliability; Application: motor control centers and high-load feeder panels. Feature: 1000 V rated insulation voltage and 12 kV impulse withstand; Benefit: enhanced insulation margins for mixed-voltage installations and storm-proof panel layouts; Application: cross-vacuum process lines and electrical distribution. Feature: Lug terminals with torque specification 15–22 N·m; Benefit: secure, vibration-resistant connections that reduce maintenance calls; Application: service-friendly disconnections in harsh environments. Feature: 1P configuration with locking capability; Benefit: straightforward isolation with safe lockout for maintenance tasks; Application: safety-conscious plant shutdowns and routine testing. Feature: Compliance with IEC 60947-3 and CE Declaration of Conformity plus RoHS/REACH data; Benefit: regulatory certainty, simplified vendor audits, and lower risk for regulated industries; Application: compliant installation across global facilities. Feature: Mechanical durability rated at thousands of operations (approx. 20,000 cycles); Benefit: longer service life, lower replacement costs, and improved total cost of ownership; Application: long-term infrastructure projects and OEM panel builds.
Get a Quick Quote for a ABB 1SCA022750R5180
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022750R5180?
Enquire Now
FAQs
This unit is designed for base mounting with lug terminals. Install by aligning the device on the mounting surface, connect conductors to the lug terminals, and tighten to 15–22 N·m using a calibrated torque wrench. Ensure wiring follows the terminal orientation specified by the catalog to maintain correct line and load sequencing and to preserve front-operated accessibility for maintenance.
The switch-disconnector provides a rated operational current of 200 A (I_e). It offers a rated short-circuit making capacity of 30 kA at 690 V and a short-time withstand current (I_cw) of 8 kA for 1 s, supporting reliable protection for high-load industrial circuits and minimizing fault impacts on downstream equipment.
Ideal for panel builders, motor control centers, and process equipment, the ABB 1SCA022750R5180 is well-suited for isolating single-phase circuits in control panels. Its front-operated action, base mounting, and high-current capability make it a strong fit for machine isolation, safety interlocks, and routine maintenance in manufacturing environments.
This device complies with IEC 60947-3 and carries a CE Declaration of Conformity. It also aligns with RoHS and REACH requirements, with additional product environmental data and lifecycle information available, supporting compliance audits and responsible sourcing for regulated industries.
With mechanical durability rated around 20,000 operating cycles and secure locking, the unit provides long service life and reduced maintenance frequency. The lug-terminal design and clear torque requirements help ensure reliable connections, lowering the risk of electrical faults and downtime during routine servicing and inspections.
