ABB 1SCA022751R1310 Switch-Disconnector - IEC 60947-3
Part Number: 1SCA022751R1310
Quick Summary
ABB 1SCA022751R1310 is a 2-pole, front-operated switch-disconnector designed for base mounting in control panels and switchgear. In busy panel environments, safe isolation must be quick, predictable, and compliant with minimal space impact. This device aligns with IEC 60947-3 and CE declarations, backed by RoHS information and ABB EcoSolutions environmental disclosures, helping you meet regulatory and sustainability targets. With 200 A rated current and 1000 V insulation, it delivers reliable performance across common industrial voltages, while its compact 110.5 mm width fits constrained enclosures. The design supports compatibility with ABB accessories and standard lug-terminals, reducing installation time and lifecycle costs for OEMs and end-users alike.
Product Information
Extended Description

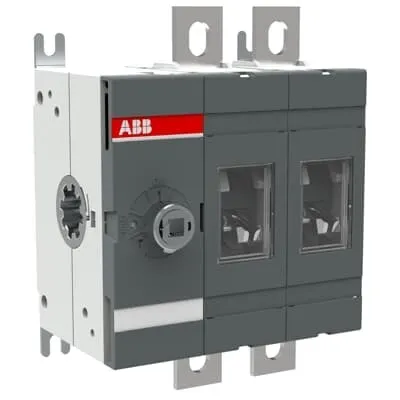

1SCA022751R1310 ABB: 2-pole, front operated, base mounted switch-diconnector, handle and shaft are not included, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200-250E02, dwg-file | OT200-250E02, dxf-file
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
110.5 mm
Product Net Height
150 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
0.8 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm | 6.7 in
Package Level 1 Depth / Length
190 mm | 7.5 in
Package Level 1 Height
145 mm | 5.7 in
Package Level 1 Gross Weight
1 kg | 2.1 lb
Package Level 1 EAN
6417019244266
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
2P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4.0 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A | (1000 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 60 kW | (400 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 02 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature 1: 2-pole, front-operated switch-disconnector → Business Impact: Enables quick, predictable isolation with reduced arc exposure in control panels. Application: Main circuit disconnection in ABB-compatible switchgear and automation cabinets. Feature 2: Base mounting design → Business Impact: Simplifies installation in tight enclosures and minimizes panel depth, saving assembly time. Application: OEM panel builds and retrofit projects where space is limited. Feature 3: 200 A rated current and 1000 V insulation → Business Impact: Supports high-power industrial circuits with robust dielectric strength, reducing voltage-related risk. Application: Main feeders in industrial plants and machine centers. Feature 4: Mechanical durability of 20000 cycles → Business Impact: Improves lifecycle reliability and reduces maintenance downtime in high-use environments. Application: Frequent isolation scenarios in process lines. Feature 5: Terminal lug connections with bolt kit included → Business Impact: Streamlines wiring and ensures secure terminations, lowering field rework. Application: Field installs and service upgrades. Feature 6: Compliance and environmental data (IEC 60947-3, RoHS, CMRT, EPD) → Business Impact: Supports audit readiness, sustainability reporting, and regulator-facing documentation. Application: Procurement and compliance workflows for regulated industries. Feature 7: ABB EcoSolutions and documentation access → Business Impact: Simplifies end-of-life planning and disassembly, reducing total cost of ownership. Application: Asset lifecycle management in electronics-heavy installations.
