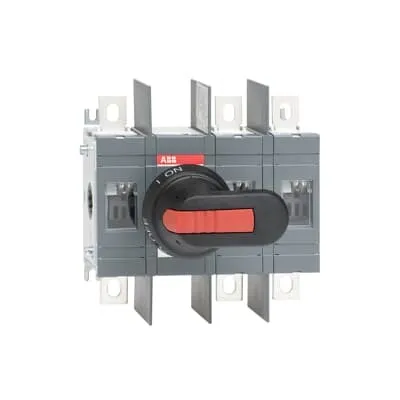

ABB 1SCA022752R2010 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA022752R2010
Quick Summary
ABB 1SCA022752R2010 Switch-Disconnectors provide safe isolation for three-phase motor circuits in industrial control panels. This design reduces downtime by delivering clear front operation and secure lock functionality, addressing common maintenance delays. Certifications and declarations—IEC 60947-3, UL/CSA listings, CE conformity, and RoHS/REACH compliance—underscore compliance and sustainability. The combination of robust performance and modular mounting supports fast retrofits, cost control, and consistent safety in demanding environments. Secondary benefits include compatibility with lug terminals and base mounting, enabling seamless integration into existing panels and new builds alike, while meeting global electrical protection standards across industries.
Product Information
Extended Description
1SCA022752R2010 ABB: Including handle: NEMA 1, 3R, 12, IP65 and shaft
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
a8b8e640-06a9-4f00-8dcf-1401e66b0599 Finland (FI)
Simplified SCIP
58843525-8e46-4986-97c8-a6c427cccd51 Germany (DE) | 1ad5bf58-0c9c-4fc7-b496-5d0eb9009ab1 Netherlands (NL) | faac3558-5eb5-4c4c-b218-cdd9f4f24705 Belgium (BE) | 8edbdd6d-ccb9-4fb1-907b-76a5179b0d36 Germany (DE) | a71560c2-2ae9-4cd6-8a77-127465b560b4 Estonia (EE) | cc905ed4-291f-4270-92a0-2e7c51e0aadb Portugal (PT) | 7b368679-a3ea-41be-a894-062ffaa91247 Greece (GR) | 52ecf241-417d-4f41-8064-5f50cb814342 Norway (NO) | 83672e87-5a82-4022-b91d-b9e94fbf0297 Belgium (BE) | 70172030-dfa4-43f7-af68-23f0fd2e0899 Italy (IT) | 34c187cd-0891-4f35-ad80-74e841ad82b0 Poland (PL) | b1497bda-778d-46d2-b3d8-f59034efc7ca Poland (PL) | 617189b5-d261-4428-b2e5-ccd53da9765e Sweden (SE) | f4e0b3a9-b636-4517-bf87-e8fa3f3fc5d9 Poland (PL) | e6ee4131-58b7-4238-a8f6-2864ee4c6e20 Germany (DE) | 001b4f6b-ca2e-4b29-b2e2-78dec4ba0a8d Sweden (SE) | 00c8cd12-a2d0-4a5e-b5b1-147126bd4810 France (FR) | 12281cb3-5aaa-44c0-9f96-853cf23d3bfc Bulgaria (BG) | a524b84a-ec06-4b82-bd4f-3e709b6c94e3 Hungary (HU) | 7374e5db-8425-440c-88dd-f17dd1a0a033 Spain (ES) | 8a941017-2110-424a-bae4-f70aff01b1c4 Czech Republic (CZ) | 07fb0eaa-af51-4dc7-9be1-60548be186ec Croatia (HR) | ac59510b-e455-42d2-9f4a-fa7a9185efcb Denmark (DK) | a21038f0-f8d7-44cd-9494-898a7cc0b175 Germany (DE) | d6ad6b24-c23d-43e1-98a1-f2661c3e8997 France (FR) | 9758b6e6-b7a4-4697-8c41-b691ee833d1d Germany (DE) | be676752-da84-4e62-9c68-7860480cce3f Hungary (HU)
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200U12, dwg-file | OT200U12, dxf-file | OT200-250U12-121.stp | OT200U12.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
174.5 mm
Product Net Height
170 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1.4 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
190 mm | 7.5 in
Package Level 1 Depth / Length
290 mm | 11.4 in
Package Level 1 Height
110 mm | 4.3 in
Package Level 1 Gross Weight
1.6 kg | 3.5 lb
Package Level 1 EAN
6417019244419
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism Between the Poles | 12 (Between the Poles)
Terminal Type
Lug terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
200 A
Horsepower Rating UL/CSA
(acc. to UL 200 V) 60 Hp | (acc. to UL 208 V) 60 Hp | (acc. to UL 240 V) 75 Hp | (acc. to UL 480 V) 150 Hp | (acc. to UL 600 V) 200 Hp
Tightening Torque
acc. IEC 60947-1 22.6 N·m
BV Certificate
1SCC301103D0201
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
GL Certificate
1SCC301139D0201
LR Certificate
1SCC301144D0201
UL Certificate
cULus certificate OT200-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3660852
