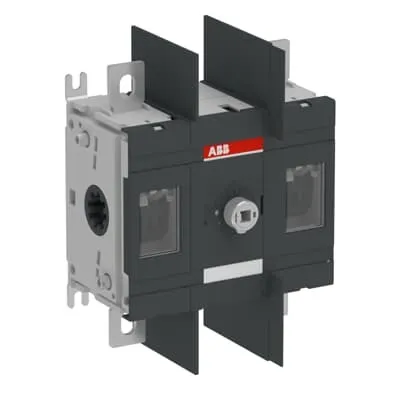

ABB 1SCA022757R3690 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA022757R3690
Quick Summary
ABB 1SCA022757R3690 Switch-Disconnectors provide reliable isolation for medium-voltage control panels. Engineers often struggle with finding a compact, fault-tolerant device that meets exact current and voltage requirements without complicating installation. This family aligns with IEC 60947-3, UL 98, and CSA C22.2 NO.4 standards, while offering RoHS, REACH, and EPD data for compliance and sustainability. Designed for base-mount, lug-terminal installations, these units accommodate high-power circuits and simplify maintenance with clear documentation and standardized mounting geometry. By selecting ABB OT200-250, procurement teams gain a predictable lifecycle, reduced downtime, and a safer, compliant solution for industrial automation applications.
Product Information
Extended Description
1SCA022757R3690 ABB: Handle and shaft must be ordered separatly.
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Mechanical Drawings
OT200...OT250U11, dwg-file | OT200...OT250U11, dxf-file | OT200-250U11.stp | OT200-250U11.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
131.5 mm
Product Net Height
170 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
190 mm | 7.5 in
Package Level 1 Depth / Length
290 mm | 11.4 in
Package Level 1 Height
110 mm | 4.3 in
Package Level 1 Gross Weight
1.2 kg | 2.6 lb
Package Level 1 EAN
6417019246642
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
2P
Operating Mode
Front operated
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Switches Operating Mechanism
Mechanism Between the Poles | 11 (Between the Poles)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
200 A
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
UL Certificate
cULus certificate OT200-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Two-pole, front-operated design with base mounting and lug terminals. Business Impact: Enables compact installation in control panels while maintaining safe isolation; Application: Suitable for 2P configurations in MCCs and distribution boards. The device's 131.5 mm width, 170 mm height, and 82.5 mm depth fit standard DIN rail and chassis layouts, reducing enclosure size. Feature: 250 A rated operational current at various voltages (380–415 V, 500 V, 690 V). Business Impact: Supports high-power circuits with a single device, lowering part count and installation complexity; Application: Ideal for industrial conveyors, motors, and feeders requiring robust main-circuit isolation. Feature: High short-circuit performance (Icm 30 kA at 690 V; Icw 8 kA for 1 s). Business Impact: Improves fault clearance capability and system reliability; Application: Critical for panels in harsh manufacturing environments where fault currents must be contained quickly. Feature: Mechanical durability of 20000 cycles and 22.6 N·m tightening torque. Business Impact: Delivers long service life with predictable maintenance windows; Application: Fits high-use switchgear where frequent operation occurs in automation cells. Feature: Documentation and environmental/compliance data (ROHS, REACH, CMRT, EPD, TSCA). Business Impact: Supports regulatory filings, green procurement, and risk mitigation from supply chain traceability; Application: Eases customer audits and supplier qualification processes. Feature: Handle and shaft are ordered separately. Business Impact: Allows end users to tailor the actuator to their enclosure and ergonomic requirements; Application: Flexible integration for OEMs and retrofit projects.
Get a Quick Quote for a ABB 1SCA022757R3690
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022757R3690?
Enquire Now
FAQs
What should I verify before mounting this device? Confirm base mounting compatibility, use lug terminals, and plan for the 131.5 mm width, 170 mm height, and 82.5 mm depth. Note that the handle and shaft are ordered separately, and tightening torque should be set to 22.6 N·m. The unit features front IP00 protection, making installation in controlled environments straightforward while enabling easy serviceability.
The device supports a short-circuit making capacity (Icm) of 30 kA at 690 V and a short-time withstand current (Icw) of 8 kA for 1 s, providing robust fault interruption. With 2P configuration and 250 A Ie ratings, it protects downstream equipment and helps maintain system stability in peak load events. Mechanical durability is rated at 20000 cycles, ensuring longevity in active control panels.
Yes. The ABB OT200-250 family adheres to IEC 60947-3, along with UL 98 and CSA C22.2 NO.4, ensuring compatibility with regional electrical codes and industrial standards. This compliance supports safer panel design, easier certification, and smoother procurement for globally deployed machinery and automation equipment.
The product aligns with RoHS and REACH declarations, CMRT, TSCA, and an environmental/product data framework including EPD and PEI. It also carries a CE declaration of conformity for related OT series and a UL certificate (cULus OT200-400). These documents assist with regulatory audits, sustainability reporting, and supplier qualification in regulated industries.
Investing in this switch-disconnector yields ROI through high-current capability (250 A), proven fault protection (Icm 30 kA, Icw 8 kA), and long mechanical life (20k cycles). Base mounting and lug-terminal design simplify installation, reducing labor time. Comprehensive compliance data and environmental declarations also streamline procurement and audit readiness, delivering lower lifecycle risk and faster time-to-value.
