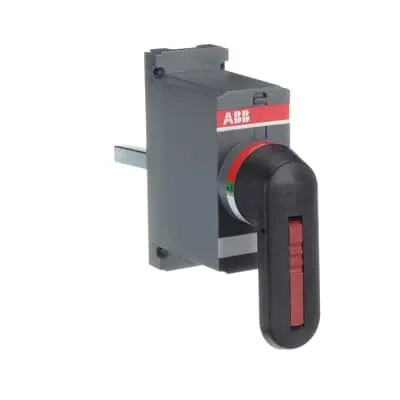

ABB 1SCA022763R3930 OSV400BK Direct Mount Handle - RoHS
Part Number: 1SCA022763R3930
Quick Summary
ABB 1SCA022763R3930 OSV400BK Direct Mount Handle enables quick, secure access to OS and fusegear components in control panels. Engineers often contend with bulky, hard-to-mount handles that slow maintenance and complicate safety compliance; this compact grey handle with cover streamlines installation, reduces tool time, and minimizes risk during panel service. It provides RoHS compliance under EU directive 2011/65/EU and Amendment 2015/863, a Reach declaration, and CMRT material reporting for responsible sourcing. Designed for ABB electrical protection and circuit control assemblies, it supports straightforward screw mounting, predictable clearance, and reliable operation across environments, helping control-panel builders reduce downtime and total cost of ownership.
Product Information
Extended Description
1SCA022763R3930 ABB: OSV400BK HANDLE+COVER GREY
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS315…400
Mechanical Drawings
OSV400BK-palikka.igs
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
50 mm
Product Net Height
50 mm
Product Net Depth / Length
100 mm
Product Net Weight
0.33 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
50 mm
Package Level 1 Depth / Length
100 mm
Package Level 1 Height
50 mm
Package Level 1 Gross Weight
0.33 kg
Package Level 1 EAN
6417019249223
Mounting Type
Screw mounting
Special Functions
BK
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
Direct mount screw mounting design for the OSV400BK with an integrated grey cover eliminates the need for complex mounting brackets, delivering a stable, repeatable fit that reduces installation time and field labor costs. This translates to faster panel commissioning and improved uptime in critical electrical protection and circuit control applications. The component’s RoHS and Reach declarations, plus CMRT reporting, simplify regulatory compliance across multinational projects, supporting procurement and sourcing diligence in automotive, industrial automation, and process industries. The BK-functionable grey cover provides added protection and safety during maintenance, minimizing dust ingress and inadvertent contact while keeping the user interface intuitive for technicians. Its compact footprint and 0.33 kg weight enable easier integration in dense control panels, improving space utilization and logistics efficiency. ETIM and UNSPSC alignment further streamline cataloging, enabling faster sourcing and reducing procurement overhead for panel builders.
Get a Quick Quote for a ABB 1SCA022763R3930
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022763R3930?
Enquire Now
FAQs
The OSV400BK is designed for screw mounting with a 50x50 mm footprint. Align the handle with the panel cutout, secure using standard mounting screws, and ensure the grey cover seats fully to protect against dust and contact. Verify clearance around the OS/fusegear interface and test operation after mounting to confirm a secure, repeatable fit.
Yes. The OSV400BK is developed as an ABB accessory for OS and fusegear assemblies, providing direct-mount functionality and a robust, standardized footprint that integrates with ABB electrical protection and circuit control installations in control panels.
This part includes RoHS information and status per EU Directive 2011/65/EU with Amendment 2015/863, a Reach Declaration for AC switches and fusegear, and CMRT material reporting. ETIM classifications for low-voltage switch technology are also provided to aid cataloging and cross-referencing in procurement systems.
Control panels containing ABB OS and fusegear benefit most, especially where space is tight and reliability matters. The direct-mount design reduces installation time, while the safety cover and material compliance simplify maintenance, compliance audits, and multi-region sourcing for electrical protection and circuit-control applications.
By shortening installation time, reducing tool requirements, and lowering maintenance downtime, the OSV400BK supports faster project commissioning and ongoing uptime. Regulatory compliance (RoHS, Reach, CMRT) minimizes risk during audits, while its compact footprint reduces spare-parts stocking and shipping costs in multi-site installations.
