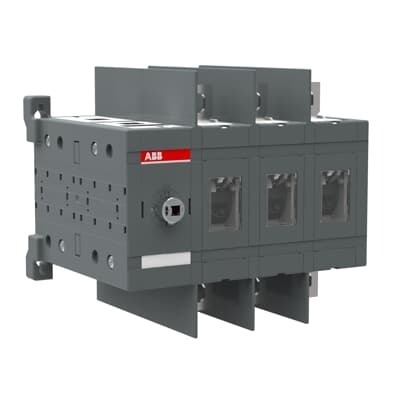

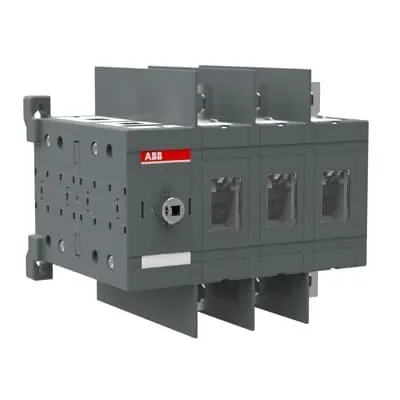

ABB 1SCA022767R8610 Change-Over Switch - UL Listed
Part Number: 1SCA022767R8610
Quick Summary
ABB 1SCA022767R8610 is a 200A, 3-pole manual change-over switch designed for reliable power transfer in switchgear and control panels. This solution addresses the frequent challenge of maintaining continuity during source transitions without compromising safety. It carries UL 98 and IEC60947-6-1 recognition and CE declarations, complemented by UL/CSA listings and IP20 front protection for harsh industrial environments. Integrated into standard base-mount assemblies, it supports screw-terminal wiring and a separate handle/shaft, enabling flexible installation with existing panels. The result is easier, compliant commissioning and reduced downtime across critical automation applications such as motors, drives, and process control.
Product Information
Extended Description
1SCA022767R8610 ABB: 200A, 3 pole manual change-over switch. Handle and shaft has to be ordered separately. UL version.
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
194 mm | 7.64 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
2.48 kg | 5.47 lb
Package Level 1 Units
1 piece
Package Level 1 Width
186 mm | 7.32 in
Package Level 1 Depth / Length
300 mm | 11.81 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
2.78 kg | 6.13 lb
Package Level 1 EAN
6417019250540
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 250 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft not included
Mechanical Durability
8000 cycle
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 250 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 250 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Standards
UL 98 / IEC60947-6-1
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Open
Ampere Rating
200 A
Horsepower Rating UL/CSA
(acc. to UL 240 V) 75 Hp | (acc. to UL 480 V) 150 Hp | (acc. to UL 600 V) 200 Hp
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: 3P 200A rating with front-operated mechanism. Business Impact: Enables direct, reliable source transfer with quick manual action, reducing outage risk and enabling safe operation in high-demand control panels. Application: Ideal for switchgear and motor control centers that require robust transfer performance. Long-tail keywords: three-pole manual change-over switch, front-operated switch, 200A industrial transfer. Feature: Base mounting design with screw-terminal wiring. Business Impact: Simplifies installation and reduces panel modification time, improving installation efficiency and field serviceability. Application: New builds and panel retrofits where wiring needs are standard and accessible. Long-tail keywords: base mounting change-over switch, screw terminals, panel wiring. Feature: Mechanical durability rated at 8000 cycles. Business Impact: Extends service life and lowers maintenance costs in applications with frequent transfer operations. Application: Process lines and packaging equipment with regular source changes. Long-tail keywords: high-cycle change-over switch, durable mechanical life. Feature: Protective and insulation ratings (Front IP20, 1000 V rated insulation, 12 kV impulse withstand). Business Impact: Enhances safety and reliability in dry, protected environments; supports compliance with high-voltage panel requirements. Application: Industrial automation cabinets and control panels requiring durable protection and insulation. Long-tail keywords: IP20 protection, rated insulation voltage 1000 V, impulse withstand 12 kV. Feature: Certifications and standards (UL 98, IEC 60947-6-1; CE Declaration; UL/CSA listings). Business Impact: Facilitates regulatory compliance and market acceptance, reducing risk during audits and approvals. Application: Global deployments in switchgear and control systems. Long-tail keywords: UL 98 standard, IEC 60947-6-1 compliance, CE Declaration, UL/CSA listing.
Get a Quick Quote for a ABB 1SCA022767R8610
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022767R8610?
Enquire Now
FAQs
Install as a base-mounted unit with screw-terminal wiring. The switch uses 20 mm terminal spacing and requires a tightening torque of 15-22 N·m. Note that the handle and shaft are sold separately, so plan for compatible hardware. Ensure front operation and correct terminal orientation (Top In - Bottom Out or Bottom In - Top Out) to match your panel design.
This is a 200 A rated change-over switch suitable for 380–415 V and accommodates 500 V and 690 V as the main circuit rating. Insulation voltage is 1000 V, with a short-time withstand current of 8 kA for 1 s. It is designed for front operation and supports UL 98 and IEC 60947-6-1 standards.
Yes, it is UL/CSA listed and CE declared, with conformity to UL 98 and IEC 60947-6-1. The product documentation also references the CE declaration for OT160E_C, OT200E_C, OT250E_C variants, ensuring compliance for global deployments in compliant control panels and switchgear.
Consider that the handle and shaft are not included and must be purchased separately. Plan for base mounting on compatible panels and use screw terminals with a torque of 15–22 N·m. Verify the correct terminal arrangement for your wiring scheme and ensure the panel provides IP20-protected, dry indoor conditions suitable for front-operated switches.
The device offers a mechanical durability of about 8000 cycles, supporting frequent transfer operations without premature wear. For maintenance, refer to the OTC1GB data sheet and manuals; schedule periodic checks of terminal connections, verify torque retention, and inspect the front operation mechanism for signs of wear to maintain reliability in high-demand applications.
