ABB 1SCA022771R5910 Change-Over Switch - UL/IEC60947-6-1
Part Number: 1SCA022771R5910
Quick Summary
ABB OT200U03CP change-over switch provides reliable 3-pole isolation for heavy-duty electrical distribution. Engineers often struggle with safe operator locking, door interlocks, and cross-application compatibility across 380–690 V systems. This model carries UL 98 / IEC 60947-6-1 approvals, CE declarations, RoHS/REACH compliance, and a DNV certification, aligning with global safety and sustainability standards. Its padlockable 0-position, I-/II-position door interlocks, and front operation reduce risk during maintenance and improve lockout-tagout workflow. Combined with 20 mm screw terminals, base mounting, and a compact footprint, it enables straightforward installation in existing control panels while delivering long-term lifecycle value.
Product Information
Extended Description

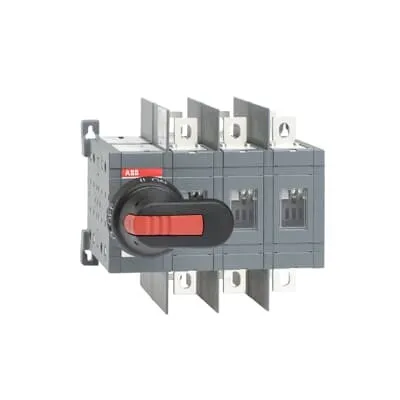

1SCA022771R5910 ABB: 200A, 3 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked. UL version
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
d7d08b2e-196e-4a48-a5fe-589f2726e1c0 Finland (FI)
Simplified SCIP
cb58f1d7-1344-4948-9869-71a9b85ab3a2 Germany (DE) | a14a0b8e-d2fa-4ed0-873b-b8c08fe5c2a0 Spain (ES) | 51f59be5-c060-4d28-af07-27ea485ba036 Netherlands (NL) | af6ee29a-5846-45e7-a095-f34ce7e651ce Estonia (EE) | c9743e3a-ac17-4c16-98ec-0bd8d45cbd3a Hungary (HU) | 009cf714-1503-4e55-8fa8-1b30fe50dfe6 France (FR) | c9023803-6d7c-449c-802f-4924889da437 Poland (PL) | d9cabbf2-99fa-473c-8b0e-ae1c394a3f66 Poland (PL) | 14ec72cd-2128-4f73-ad93-84dcbff862a5 Sweden (SE) | 0266809e-3278-488e-b424-4eae8cb5c3cd Portugal (PT) | b7cf036e-ef1c-422b-af34-8cae4548169d Bulgaria (BG) | 8794478d-160c-4b06-a8ee-aa7f93d5c831 Czech Republic (CZ) | b18b0d93-d991-43b2-b6dd-173a2ea3a138 Croatia (HR) | 46eeae79-92a9-42b8-9109-c86081848d26 Germany (DE) | 4934d5ed-a288-4ad0-aa38-7583e264a362 Denmark (DK) | b9682cd3-1feb-41d8-87fc-64f3f98ea3b1 Germany (DE) | c854b53c-755a-4c0a-b64f-50ca6438395d Italy (IT) | b26841a7-62fe-434b-93ae-d778f75fc00d Belgium (BE) | cef27fed-6435-44c9-a15e-b3a843ae360e Germany (DE) | cadd0ea9-df0c-4150-975c-130c46b0e603 Sweden (SE) | 52f4fb22-780e-464d-ace4-d2c57e3e29ef France (FR) | 3e19d7b7-7b79-43c7-9ec4-33c346d0f65a Germany (DE) | 99face1a-b186-4b90-91f5-81b695d1d6d3 Hungary (HU) | 773127c8-def7-458e-9aa5-e0eaa0457bc2 Greece (GR) | e6dbe489-51ca-48b6-8c4d-556fd205b36a Poland (PL) | d9bc31d8-23ce-4439-9b8a-e5e89b59c3e7 Norway (NO) | f685c5d9-5d7e-41e1-9e23-df3fa7a620d1 Belgium (BE)
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
194 mm | 7.64 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
2.9 kg | 6.39 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
183 mm | 7.2 in
Package Level 1 Depth / Length
260 mm | 10.24 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
3.5 kg | 7.72 lb
Package Level 1 EAN
6417019251783
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 250 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Mechanical Durability
8000 cycle
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 250 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 250 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Standards
UL 98 / IEC60947-6-1
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Open
Ampere Rating
200 A
Horsepower Rating UL/CSA
(acc. to UL 240 V) 75 Hp | (acc. to UL 480 V) 150 Hp | (acc. to UL 600 V) 200 Hp
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: High current 200 A with 3P configuration. Business Impact: Supports heavy-duty power transfer with reliable isolation, reducing risk of overload and enabling scalable panel design. Application: Industrial switchgear and motor control centers requiring robust 200 A performance. Feature: Mechanical durability rated at 8000 cycles. Business Impact: Longer service life and lower maintenance costs in frequent switching applications. Application: Start/stop sequences in production lines and process control loops. Feature: Safety enhancements including padlockable in 0-position and door interlock in I-/II- positions. Business Impact: Enhanced operator safety and compliance with lockout-tagout procedures. Application: Routine maintenance and emergency isolation in hazardous environments. Feature: Base mounting with front-operated mechanism and 3P configuration. Business Impact: Simplified installation, faster commissioning, and fewer enclosure modifications. Application: Retrofit projects and new builds in compact control panels. Feature: Terminal type and torque specification: screw terminals, 20 mm width, 15–22 N·m torque. Business Impact: Secure, vibration-resistant connections and consistent electrical performance. Application: Enclosures with standard 20 mm terminal spacing in industrial cabinets. Feature: Standards and compliance: UL 98 / IEC 60947-6-1, RoHS/Reach, CE DoC, DNV certificate. Business Impact: Reduced regulatory risk, easier supplier audits, and global applicability. Application: Multinational operations with strict compliance requirements.
