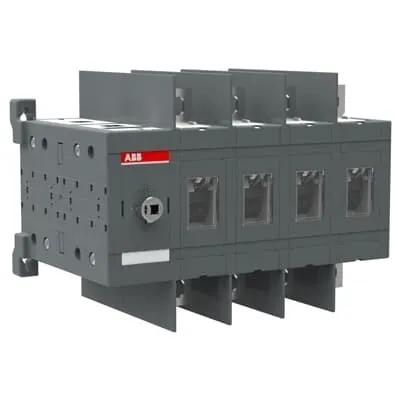

ABB 1SCA022771R6120 Change-over Switch - UL Version
Part Number: 1SCA022771R6120
Quick Summary
Change-over switch 1SCA022771R6120 from ABB enables fast source transfer in 4-pole industrial power circuits. Engineers often struggle with ensuring clean transfer without arcing or mis-sequencing during maintenance windows. This UL version, IEC 60947-6-1 compliant, plus RoHS and CMRT declarations, helps meet safety and sustainability standards while reducing compliance overhead. The unit supports base mounting with screw terminals and front operation, making it a practical fit for panel builders and service teams. By pairing reliability with straightforward installation, it minimizes downtime and simplifies spare-part planning, enabling tighter asset management and improved lifecycle cost for manufacturing lines.
Product Information
Extended Description
1SCA022771R6120 ABB: 200A, 4 pole manual change-over switch. Handle and shaft has to be ordered separately. UL version.
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
237 mm | 9.33 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
3.99 kg | 8.8 lb
Package Level 1 Units
1 piece
Package Level 1 Width
186 mm | 7.32 in
Package Level 1 Depth / Length
300 mm | 11.81 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
4.26 kg | 9.39 lb
Package Level 1 EAN
6417019251790
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 250 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft not included
Mechanical Durability
8000 cycle
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 250 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 250 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Standards
UL 98 / IEC60947-6-1
Switches Operating Mechanism
Mechanism at the End of the Switch | 04 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Open
Ampere Rating
200 A
Horsepower Rating UL/CSA
(acc. to UL 240 V) 75 Hp | (acc. to UL 480 V) 150 Hp | (acc. to UL 600 V) 200 Hp
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: 4-pole 200 A rating with simultaneous switching. Business Impact: Enables synchronized transfer across all poles, minimizing switching transients and reducing arc-related wear. Application: Ideal for main power transfer in motor control panels and machine shutdown/start sequences. Feature: Front-operated mechanism with base mounting. Business Impact: Simplifies retrofit and field service by offering accessible operation and secure mounting, improving installation times and on-site safety. Application: Used in compact control enclosures where space is limited. Feature: 4P construction with screw terminals and 20 mm terminal width. Business Impact: Provides robust, high-current connections with reliable torque, lowering maintenance intervals and re-termination costs. Application: Panel builders assembling large-capacity distribution and control systems. Feature: IP20 front protection; pollution degree 3; withstands demanding factory environments. Business Impact: Ensures dependable operation in typical industrial settings, reducing fault-driven downtime. Application: Factory floors, packaging lines, and processing equipment. Feature: 8 000 mechanical cycles durability; rated insulation voltage 1000 V; short-time withstand 8 kA for 1 s. Business Impact: Extends service life and resilience in frequent switching scenarios, improving return on investment. Application: Continuous operation in automation sequences and critical transfer points. Feature: UL/IEC compliance with RoHS and CMRT reporting; documentation supports regulatory filings. Business Impact: Accelerates approval processes and supplier qualification. Application: Automotive, food & beverage, and general manufacturing where compliance overhead is a concern.
Get a Quick Quote for a ABB 1SCA022771R6120
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022771R6120?
Enquire Now
FAQs
The OT200U04C uses base mounting with screw terminals, featuring 20 mm terminal width for secure, high-current connections. The design requires separate handle and shaft components, and the front-facing IP20 protection makes it suitable for panel-mounted installations with straightforward maintenance access.
The 4P configuration allows simultaneous switching of all poles, ensuring synchronized transfer across phases, which reduces transient voltages and prevents intermediate unsafe states. This is ideal for motor control, power distribution panels, and systems requiring reliable source transfer under load.
Yes. The unit aligns with UL 98 and IEC 60947-6-1 standards, carries a CE declaration, and complies with RoHS directives. CMRT documentation is available for responsible sourcing, helping with supplier qualification and regulatory filings in regulated markets.
Plan for periodic inspection of screw terminations (tightening torque 15–22 N·m), proper alignment of the switch mechanism, and verification of the open transition position. The device has a rated mechanical durability of 8000 cycles, so spare handles/shafts and mounting hardware should be stocked for quick replacements.
It improves downtime readiness and asset reliability through high-current capability, robust mechanical life, and certified compliance. The UL/IEC approvals, RoHS/CMRT declarations, and easy installation contribute to reduced regulatory risk, lower maintenance costs, and faster time-to-production for automated lines.
