ABB 1SCA022771R6210 OT200U04CP Change-Over Switch UL98
Part Number: 1SCA022771R6210
Quick Summary
ABB 1SCA022771R6210 OT200U04CP Change-Over Switch provides four-pole power transfer for industrial control panels. It addresses the risk of accidental transfer with a padlockable 0-position, door interlock, and front-operated design. Certified to UL 98 and IEC60947-6-1 with CE marking and front IP20 protection for safe, compliant operation. In practice this means reliable changeover in 200 A circuits with easy installation and predictable maintenance. Its base mounting design simplifies integration with standard electrical enclosures and 20 mm terminal width supports convenient wiring. With RoHS and Reach declarations, this OT-series switch helps you stay compliant across global supply chains. Engineers will appreciate the 4-pole, 200 A rating and the ability to padlock the 0-position for lockout. This translates to reduced nuisance trips, safer maintenance windows, and improved uptime in critical plant sections.
Product Information
Extended Description

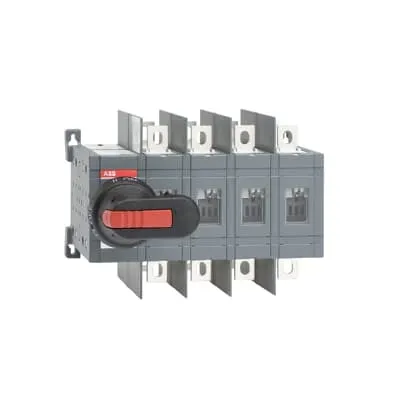

1SCA022771R6210 ABB: 200A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked. UL version
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
237 mm | 9.33 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
4.18 kg | 9.22 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
186 mm | 7.32 in
Package Level 1 Depth / Length
300 mm | 11.81 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
4.45 kg | 9.81 lb
Package Level 1 EAN
6417019251806
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 250 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mechanical Durability
8000 cycle
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 250 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 250 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Standards
UL 98 / IEC60947-6-1
Switches Operating Mechanism
Mechanism at the End of the Switch | 04 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Open
Ampere Rating
200 A
Horsepower Rating UL/CSA
(acc. to UL 240 V) 75 Hp | (acc. to UL 480 V) 150 Hp | (acc. to UL 600 V) 200 Hp
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: Four-pole, 200 A rating enables safe, high-load transfer in 380–415 V and up to 690 V networks, reducing voltage drop risk and improving panel reliability in critical applications. This translates to measurable uptime gains and safer, more predictable operation in manufacturing lines and process controls. Application insight: ideal for main and stand-by power transfer in industrial drives and control cabinets, where consistent performance under load matters. Feature → Business Impact → Application: Padlockable 0-position with door interlock I and II minimizes unauthorized operation and supports lockout-tagout programs, lowering risk during maintenance and audits. Application: suitable for safety-critical panels requiring rigorous access control in energy-intensive facilities. Feature → Business Impact → Application: Base mounting with screw terminals and a 20 mm terminal width streamlines wiring, reduces installation time, and improves field serviceability. Application: quick upgrades or retrofits in existing enclosures with standard terminal spacing. Feature → Business Impact → Application: 8000 mechanical cycles durability and open transition design ensure long life with predictable maintenance intervals. Application: panels subject to frequent switching in conveyors, presses, and packaging lines. Feature → Business Impact → Application: Front IP20 protection and RoHS/Reach compliance simplify regulatory adherence and enable safer operation in open or semi-enclosed panels. Application: export-ready installations across markets with RoHS/CMRT considerations. Feature → Business Impact → Application: Fourth Pole Position on the Right and Simultaneous Function provide flexible, synchronized switching for multi-circuit systems. Application: redundant feeds or shared bus configurations in large industrial machines.
