ABB 1SCA022775R0650 Change-Over Switch - IP65 4P 200A
Part Number: 1SCA022775R0650
Quick Summary
ABB 1SCA022775R0650 Change-Over Switch is a 200 A, 4-pole manual device designed to reliably transfer load between power sources in electrical distribution panels. Operators often face misoperation or unsafe maintenance during source transfer, which this design mitigates with a padlockable 0-position handle and a door interlock for I- and II-position safety. This unit carries CE conformity (Declaration of Conformity), RoHS compliance, and Reach/SCIP declarations, with a DNV certificate for added reliability in critical installations. Built for robust panel integration with base mounting, screw terminals, and a black IP65 handle, it delivers dependable performance in industrial control and power distribution environments.
Product Information
Extended Description

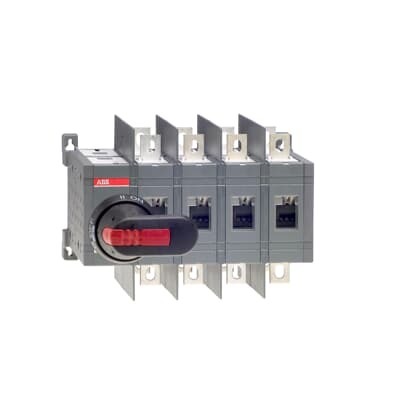

1SCA022775R0650 ABB: 200A, 4 pole manual change-over switch with phase barriers including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
End Of Life Disassembling Instructions
OT160-250_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
3c1c1ed3-8d6a-4015-9699-3dc7cd576b8c Finland (FI)
Simplified SCIP
cabe0730-ada2-4df5-9fab-dcb1ae8dc2b9 Germany (DE) | 5428b0f8-bac4-463b-be61-afafecba6d18 Denmark (DK) | e3b481d9-c2ac-4dc2-a219-fc289083bc9b Belgium (BE) | d512c300-444d-4558-8804-bcc7d86e5f1c Italy (IT) | 00bada78-a205-4945-8402-7ea022b1a1dc Estonia (EE) | d2c0d3e4-f865-4fc1-b1cc-7a593dad4ff4 Portugal (PT) | f98cb620-985e-4bf1-b101-76e3fdad4801 Poland (PL) | 2aa0e5e5-50d5-4389-894b-5850972515ac Netherlands (NL) | 15b85b81-4ea7-4ac5-af3d-f47041793d29 Croatia (HR) | 9bc61e88-44fc-4872-b2c1-9446aa7a605b Germany (DE) | 431dfcdb-77ff-4af7-896b-a23e15138432 Germany (DE) | b975a4d1-bd6d-4c60-916d-1a00f5b80b0f Poland (PL) | 61d9005b-1d0c-4913-82ea-133be3ca786e Czech Republic (CZ) | 92df5421-3c6a-4c26-9d75-5b842e7a9c1c Hungary (HU) | 15d660c9-3a8b-439b-a54b-567491f0e8cb Germany (DE) | 9c4ccc44-7a31-4502-a6c8-582bff304095 Norway (NO) | 457aeeb0-2cbd-4ed5-bc2d-67e36487b631 Hungary (HU) | 3ef5d90e-fc82-4b8e-8f54-7c8576697deb Spain (ES) | cd5cd19a-6385-4e0e-8242-e6666dea00b6 Bulgaria (BG) | a98f9bb3-96e6-4b89-bada-be2efc3bcc2f Germany (DE) | 45f2569e-421e-4dd3-9991-054c349534d5 Belgium (BE) | 9102f4dc-70f8-4e0e-8139-61fd1a382c45 Poland (PL) | 74cddfd6-2350-4004-b8e7-e22fbe15af42 France (FR) | 3da4198b-edbd-4ed8-a6aa-3d50e6efe458 Sweden (SE) | ef4cd03f-7238-426e-91b0-d6c96b075558 Sweden (SE) | e57c8c03-73fe-4550-9f45-be22f65a9361 France (FR) | 2da073c4-66ff-4601-b172-507370c0e64b Greece (GR)
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
237 mm | 9.33 in
Product Net Height
170 mm | 6.69 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
4.18 kg | 9.22 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
186 mm | 7.32 in
Package Level 1 Depth / Length
300 mm | 11.81 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
4.45 kg | 9.81 lb
Package Level 1 EAN
6417019252247
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP20
Distance Between Phases
Wide phase distance
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 200 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 200 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch | 04 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Open
Ampere Rating
200 A
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641541
Feature: 200 A rating with 4 poles and phase barriers; Business Impact: enables safe, controlled load transfer with clear phase separation, reducing cross-connection risk in demanding panels; Application: ideal for distribution boards in manufacturing lines and process automation. Feature: Padlockable 0-position handle and door interlock in I- and II- positions; Business Impact: minimizes operator error and enhances maintenance safety, lowering unplanned downtime; Application: machine safety interlock applications and service procedures. Feature: Base mounting with screw terminals (20 mm width) and 1000 V rated insulation; Business Impact: simplifies field wiring and supports high-voltage installations while maintaining solid electrical integrity; Application: panel builders and retrofit projects requiring straightforward wiring. Feature: Four-pole, front-operated design with right-side fourth pole; Business Impact: enables simultaneous switching and compact panel layouts, improving installation density; Application: control cabinets in conveyors and packaging lines. Feature: Documentation and compliance suite including CMRT, RoHS, Reach, SCIP, and DNV certification; Business Impact: ensures regulatory alignment, traceability, and reduced audit risk; Application: procurement and compliance teams seeking verified electrical protection gear.
Get a Quick Quote for a ABB 1SCA022775R0650
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022775R0650?
Enquire Now
FAQs
The 1SCA022775R0650 uses a base-mounting design with screw terminals (20 mm width) for straightforward wiring and rail- or panel-mounted installation. It supports standard 380–415 V and up to 1000 V main circuit ratings, aligning with ABB OT-C transfer-switch installations and enabling seamless retrofits in established panel architectures.
Key ratings include a 200 A operating current (I e) across 380–415 V, 500 V, and 690 V categories, 1000 V rated insulation voltage (Ui), 12 kV rated impulse withstand (Uimp), and 8 kA short-time withstand current (Icw) for 1 s. The device is front-operated with screw-terminal connections and a 4P configuration, supporting safe high-energy switching.
Yes. With 4P construction, 200 A rating, phase barriers, and a padlockable 0-position, it suits industrial transfer switching, machine protection in packaging and conveyors, and distribution-panel applications where reliable source transfer and maintenance safety are critical.
The switch is supported by a CE Declaration of Conformity, RoHS information, and a Reach Declaration. Additional documentation includes CMRT for conflict minerals and SCIP entries, with a DNV certification for enhanced reliability in critical installations.
Maintenance benefits include a robust mechanical design with a padlockable handle and door interlock to prevent unintended operation, reducing downtime. Tightening torque follows IEC 60947-1 guidelines (15–22 N·m), and the base-mount construction simplifies field servicing and future upgrades, contributing to lower lifecycle costs.
