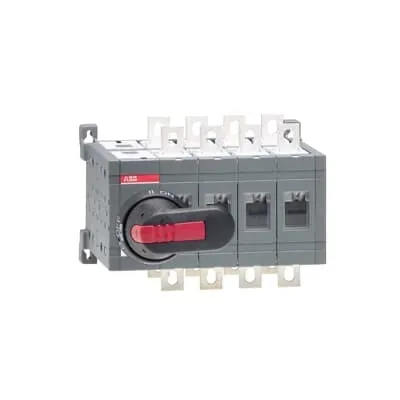

ABB 1SCA022775R9440 Change-over Switch - IP65 Handle
Part Number: 1SCA022775R9440
Quick Summary
ABB 1SCA022775R9440 Change-over Switch provides dependable four-pole transfer for industrial control panels. This device is designed to switch loads safely between sources, minimizing downtime during critical transfers. Engineers benefit from CE conformity, RoHS compliance, and SCIP traceability, with additional DNV certification supporting use in demanding environments. The combination of a robust 160 A rating, a front-operated mechanism, and a shaft-integrated design simplifies installation and reduces maintenance hours. It also features a padlockable 0-position, door interlocks at I and II, and a solid base-mount footprint, enabling safe, compliant operation across panel assemblies and power distribution installations.
Product Information
Extended Description
1SCA022775R9440 ABB: 160A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
End Of Life Disassembling Instructions
OT160-250_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
ef556fd6-d19c-413f-9e9e-d3c9254c1212 Finland (FI)
Simplified SCIP
324a34e6-d92d-4659-a6c8-7f25a4f8202b Germany (DE) | 7c18e3c7-d4ec-4daf-8638-780bbf725e49 Poland (PL) | 79c4eb22-50d4-41d7-b6fd-bcff65221f82 France (FR) | 4d6acfff-dd17-4d78-91eb-c4efa115ccbb Italy (IT) | 80a8fc45-5222-4a61-b2bb-cd8ada25cd84 Hungary (HU) | 3fb9d9d1-b0ec-48a0-b098-940168200189 Portugal (PT) | 875993c2-42d9-40c9-8cdd-7006fcb6b022 Denmark (DK) | 20dca2da-2029-44e5-bc86-a6a6d2955a4c Netherlands (NL) | f1d6782a-92e7-413e-9486-5ed4054328d2 Croatia (HR) | f0df47b8-615f-451e-8563-b1c5b1fd5c02 Sweden (SE) | 350d11eb-0249-452b-9052-f77d05c23e55 Belgium (BE) | f6a04649-2730-4919-84da-c107d80945be Germany (DE) | 2a72d88d-2b17-43f0-8a3c-603368363d33 France (FR) | 95051c22-70dd-4564-a5f9-22998b562a26 Spain (ES) | 34bb405e-7eda-448a-9a24-f11b0ca1dba3 Greece (GR) | c83908be-bffc-402d-9cec-d1d90f8d72dd Bulgaria (BG) | 9a289f65-5d22-4279-9c5a-d081354c7cd6 Germany (DE) | 57761068-7ebf-4acc-a6aa-7f2c079edf4c Hungary (HU) | ee15fe22-2944-4a25-af0e-16a5faa4c162 Germany (DE) | e170c76c-8bdd-4cfc-a218-eb1f693dc8a9 Poland (PL) | f2aa8062-9e30-4c1c-96ea-d1dd0635ce41 Estonia (EE) | 35b6d0d9-9b97-4594-b3ef-fb99b3e020d2 Czech Republic (CZ) | d6f0b348-e327-4b1f-9520-875b77c7557a Poland (PL) | 82455908-5079-42f3-82f5-8ca070c43ef8 Germany (DE) | 16a10f02-3901-4446-8cad-5d694b132d89 Norway (NO) | f4c000b0-fdd4-432b-bea1-c3033ad8b8e0 Belgium (BE) | 0f58dfe3-0f6c-4a7a-8ca8-b63776cb2f88 Sweden (SE)
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
205 mm | 8.07 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
3.3 kg | 7.28 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
270 mm | 10.63 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
4.05 kg | 8.93 lb
Package Level 1 EAN
6417019252551
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 2.4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 160 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 160 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 90 kW | (500 V) 110 kW | (690 V) 160 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch | 04 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Open
Ampere Rating
160 A
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641526
E-Number (Norway)
4337000
