ABB 1SCA022776R6730 Motors & Drives - L/4
Part Number: 1SCA022776R6730
Quick Summary
ABB 1SCA022776R6730 is a terminal shroud for OS/OS1 switches in control panels. Engineers often face loose wires and crowded terminations that slow wiring, increase risk, and raise service costs. It carries RoHS compliance under EU directives, a Reach declaration for AC switches and fusegear, and CMRT reporting for conflict minerals. This accessory is designed for snap-on mounting in ABB OS and OSM switchgear, delivering a compact footprint that accelerates panel assembly and reduces field wiring time. For procurement and compliance teams, the combination of documentation and declarations supports auditing and supplier qualification while maintaining robust electrical safety.
Product Information
Extended Description

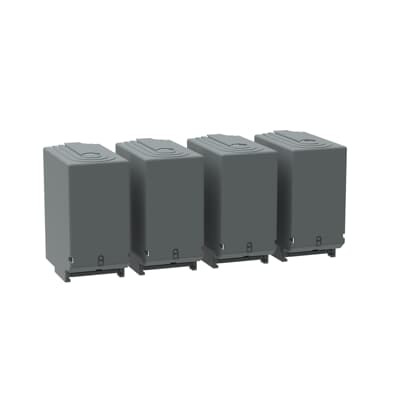

1SCA022776R6730 ABB: OSS400G1L/4 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
1SCC311015M0005
Mechanical Drawings
OSS400G1L.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
64 mm
Product Net Height
130.9 mm
Product Net Depth / Length
81 mm
Product Net Weight
0.25 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
126 mm
Package Level 1 Depth / Length
260 mm
Package Level 1 Height
110 mm
Package Level 1 Gross Weight
0.28 kg
Package Level 1 EAN
6417019252766
Mounting Type
Snap-on mounting
Special Functions
L/4
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
E-Number (Sweden)
3171855
Snap-on mounting simplifies installation and reduces field labor, delivering measurable time savings and fewer misalignments that can cause contact wear. The OSS400G1L/4 shell attaches directly to OS and OSM switchgear, minimizes screw torque, improves thermal clearance, and supports rapid changeouts during line upgrades. In practice, technicians gain safer, cleaner wiring harnesses ready for future extensions. L/4 special function enables streamlined four-terminal wiring configurations, eliminating guesswork during harness routing and enabling consistent electrical clearances. The result is fewer wiring errors, reduced rework, and better traceability in audits, especially in panels with modular designs for future control layers. RoHS, Reach, and CMRT declarations provide compliance assurance in regulated industries, ensuring suppliers meet environmental and sourcing standards. This is valuable for automotive, energy, and process sectors where traceability matters. The defined dimensions—64 mm net width, 130.9 mm height, 81 mm depth—and a light 0.25 kg weight help engineers plan panel layouts precisely, maximizing enclosure density without compromising terminal accessibility. Comprehensive documentation, including the Data Sheet and mechanical drawings OSS400G1L.stp, supports procurement, installation, and maintenance, while compatibility with ABB OS/OS1 family streamlines spare parts strategy and after-sales support.
