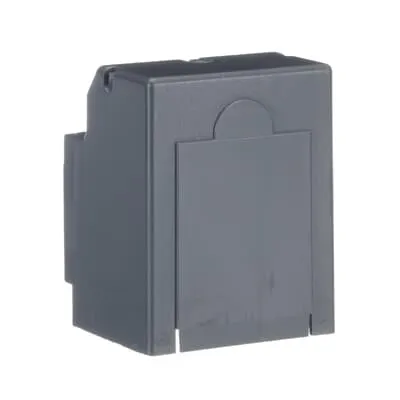

ABB 1SCA022776R6900 - Terminal Shroud S/3
Part Number: 1SCA022776R6900
Quick Summary
ABB 1SCA022776R6900 Terminal Shroud protects electrical connections in low-voltage switchgear and control panels. Wiring can loosen under vibration and crowded enclosures, creating reliability and safety risks. The product carries RoHS compliance, REACH declarations, and CMRT supply-chain transparency to support audits and supplier reviews. By offering snap-on mounting and compact dimensions, it speeds installation while reducing field wiring errors, ultimately lowering total cost of ownership and improving panel reliability.
Product Information
Extended Description
1SCA022776R6900 ABB: OSS400G1S/3 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
1SCC311015M0005
Mechanical Drawings
oss400g1s.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
64 mm
Product Net Height
55.8 mm
Product Net Depth / Length
81 mm
Product Net Weight
0.1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
126 mm
Package Level 1 Depth / Length
195 mm
Package Level 1 Height
110 mm
Package Level 1 Gross Weight
0.12 kg
Package Level 1 EAN
6417019252780
Mounting Type
Snap-on mounting
Special Functions
S/3
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
Feature: Snap-on mounting enables fast, tool-free installation. Benefit: Reduces commissioning time and labor costs, increasing site productivity in motor control centers and control panels. Application: Suitable for ABB OSS400G1S/3 configurations and OS/3 switches where secure enclosure integrity is critical. Feature: Compact footprint with 64 mm width, 55.8 mm height, and 81 mm depth. Benefit: Fits tight panel spaces without compromising access to connectors, improving wiring routing in compact engineered systems. Application: Ideal for dense control panels and prefabricated enclosures in automated lines. Feature: Material compliance declarations (CMRT, REACH, RoHS). Benefit: Streamlines procurement and compliance audits, reducing supplier risk and qualification time. Application: Supports ESG and regulatory reporting during supplier reviews. Feature: Clear packaging and ordinality (MOQ 1 piece). Benefit: Enables economical, incremental stocking for maintenance spares and project-specific runs. Application: Supports just-in-time inventory and flexible refurbishment programs. Feature: Broad compatibility with OS/3 and related ABB accessory ecosystem. Benefit: Ensures standardized installation across equipment families, lowering training needs. Application: Facilitates cross-model maintenance and simpler BOM management.
Get a Quick Quote for a ABB 1SCA022776R6900
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022776R6900?
Enquire Now
FAQs
The shroud uses a snap-on mounting method designed for rapid, tool-free installation onto ABB OS/3 compatible assemblies. Align the shroud with the terminal housing, press firmly until it snaps into place, and verify seat by gently tugging. This reduces field labor time and minimizes the risk of improper seating that could affect terminal integrity.
Key dimensions are 64 mm product net width, 55.8 mm net height, and 81 mm net depth, with a weight of 0.1 kg. It is designed for snap-on mounting on ABB OSS400G1S/3 configurations and OS/3 accessory ecosystems, ensuring straightforward integration into existing control panels.
Yes, it is compatible with ABB OS/3 switches within low-voltage switchgear and control panel assemblies. Best applications include motor control centers, distribution boards, and compact automation panels where terminal protection and wiring integrity are critical, helping reduce mis-wiring and improving overall safety in the field.
The shroud includes CMRT (Conflict Minerals Reporting Template), REACH Declaration, and RoHS Information with RoHS Status aligned to EU directives. These declarations simplify supplier qualification, risk assessment, and regulatory auditing for electronics and electrical equipment projects.
Routine inspections should verify the shroud remains seated after panel servicing. Benefits include faster maintenance cycles due to easier access, reduced risk of wiring faults, and potential reductions in downtime. The compact form factor and standardized mounting also support lower inventory costs and easier BOM management for ongoing facilities maintenance.
