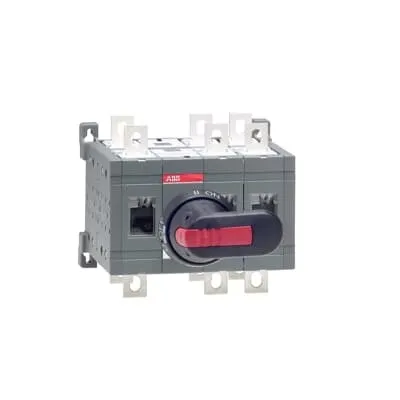

ABB 1SCA022776R8510 OT200E12CP - IP65 Handle
Part Number: 1SCA022776R8510
Quick Summary
ABB OT200E12CP Change-Over Switch is a robust 200 A three-pole solution for mains transfer. Maintenance teams often face challenges with safe interlocking, padlocking, and door interlocks during routine switching. This device carries CE conformity, RoHS compliance, and REACH declarations to meet global standards, supporting responsible procurement and traceable compliance. The combination of safe operation, straightforward installation, and documented environmental data enables faster panel builds, reduced downtime, and lower lifecycle costs for industrial facilities.
Product Information
Extended Description
1SCA022776R8510 ABB: 200A, 3 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
End Of Life Disassembling Instructions
OT160-250_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
80de0b75-170f-4ad4-9202-cfe78c8e43e6 Finland (FI)
Simplified SCIP
34563f1a-8ca6-4945-88dc-d223761a5e72 Germany (DE) | f1ba1e19-ea04-44ba-bac8-01c74081fc55 Denmark (DK) | 41eb4c01-a8c0-4849-860a-e528d2a7f2ee Estonia (EE) | 0c0bc4ee-f63e-46b8-9ae3-0925c99359e9 Hungary (HU) | b6ab64a0-89c0-426a-98ea-d29883c3a704 Norway (NO) | 3d4caa7a-2261-4567-b73c-3f9afcdcf9dd Belgium (BE) | 6f35ac24-8e76-4b97-be47-71838e4917b8 Italy (IT) | c280a181-f1cf-4330-8904-2ad4ccdaa6e0 Poland (PL) | 5ed9d59a-e079-4b4b-bc48-f86fc5436973 Portugal (PT) | 612c0b9b-d01b-4879-9b6c-68872997044d Spain (ES) | 39792a51-e008-486d-9a42-f77f34ea197e Germany (DE) | 7e01c3e7-c8f0-4807-9a87-bc1dbe9269a1 Croatia (HR) | f88cafa2-a15d-4d53-b809-5f3a32084cb2 Belgium (BE) | 9aa13890-caea-4447-96f1-75fef4117d13 Germany (DE) | 17dce502-8aa2-47eb-86cd-166d43623969 France (FR) | 451442e4-15b0-4d95-b645-7252bce65fb6 Germany (DE) | 64d13c80-3bc9-4dff-86a4-5e3d2b889a8c Hungary (HU) | 107e3448-c2a0-4064-ac10-a29efc086047 Germany (DE) | ab78bf9f-a2fa-4782-9991-c24c1353fd78 Poland (PL) | a04b254f-5d63-4290-976f-524cb6248735 Netherlands (NL) | befceb52-9078-4d7d-a9ea-018b00e97524 Greece (GR) | 14bb48bc-ef70-4071-a632-c22fca37cc80 Czech Republic (CZ) | 5b9aac38-66f7-476d-9c41-691498591b4a Poland (PL) | 521399d6-127f-4202-8b52-0c96131f9147 France (FR) | afa745b7-9f2a-4417-a6f6-88defb5a3714 Bulgaria (BG) | af8b3c41-2a87-4140-a94f-ed001b47c74f Sweden (SE) | 9f15bea6-8ed5-48b8-be45-71cc8bd18c23 Sweden (SE)
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
170 mm | 6.69 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
3.1 kg | 6.83 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
245 mm | 9.65 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
3.4 kg | 7.5 lb
Package Level 1 EAN
6417019252926
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 200 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 200 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 12 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Open
Ampere Rating
200 A
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641511
The OT200E12CP is a 3P manual change-over switch designed for high-current transfer in industrial control panels. Feature → Business Impact → Application: 200 A rating and three-pole construction enable reliable transfer between sources, reducing switchgear downtime and improving process availability in manufacturing lines. Feature → Interlock and padlock capability → Enhanced safety and compliance with lockout-tagout requirements, minimizing operator risk during maintenance and repair in machine areas. Feature → Shaft and bolt set for cable connections, screw terminals, and a 20 mm terminal width → Simplified wiring with robust, vibration-tolerant connections, speeding installation and delivering consistent torque (15–22 N·m) across installations. Feature → Front IP20 protection and base mounting with standard 3P configuration → Safer operation in typical factory environments while preserving compatibility with common panel designs. Feature → Documentation and compliance data (CE, RoHS, REACH, DNV) → Smoother regulatory adherence and risk management for engineering teams. The overall package aligns with ABB EcoSolutions and supports lifecycle planning, disassembly guidance, and data transparency for panel builders and electrical engineers.
Get a Quick Quote for a ABB 1SCA022776R8510
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022776R8510?
Enquire Now
FAQs
OT200E12CP is a 3P change-over switch designed for three-phase mains applications. It supports voltages up to 1000 V and currents up to 200 A, with configurations that accommodate Top In-Bottom Out or Bottom In-Top Out terminations, making it versatile for standard 3P control panels and machine feeders.
Key specs include 200 A current rating (Ie and Ih across 380–690 V ranges), Ui 1000 V, Uimp 12 kV, front IP20 protection, screw terminals 20 mm wide, and a tightening torque of 15–22 N·m. It is a 3P, front-operated device with base mounting and a padlockable IP65 handle option.
OT200E12CP is specified with Front IP20 protection and standard factory environment suitability. It is not rated for explosion-hazardous locations and should be installed in controlled or moderately harsh environments with appropriate enclosure protection and standard LOTO practices.
The OT200E12CP carries CE Declaration of Conformity, RoHS compliance, and REACH declarations, with additional references to environmental data and DNV certification in its documentation, supporting regulatory alignment in many global markets.
Benefits include safer maintenance due to padlockable interlock, reduced downtime from reliable transfer operations, and straightforward installation with standardized terminals. Over a production cycle, these factors translate to lower maintenance costs, fewer unplanned outages, and improved overall equipment effectiveness (OEE).
