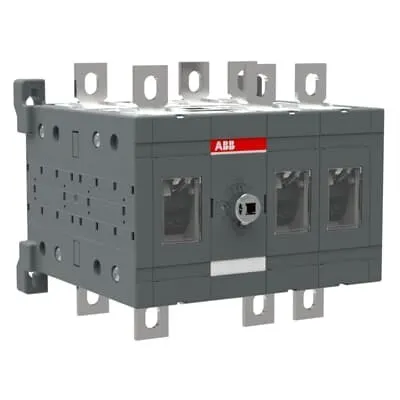

ABB 1SCA022776R8600 Change-Over Switch - 3P 200A IP20 CE
Part Number: 1SCA022776R8600
Quick Summary
ABB 1SCA022776R8600 Change-Over Switch provides reliable 3-pole power routing for industrial switchgear. Engineers often face delays and safety concerns during source transfers, especially in maintenance windows or fault conditions. This OT200E family part carries CE conformity, RoHS compliance, and IP20 protection for the front, supporting regulatory audits and safer operation. For panel builders and maintenance teams, the device delivers straightforward base mounting, screw-terminal connections, and clear terminal layouts, accelerating installation and reducing wiring errors. In short, it blends rugged current rating with practical integration features to lower downtime and total cost of ownership in industrial electrical protection and circuit control applications.
Product Information
Extended Description
1SCA022776R8600 ABB: 200A, 3 pole manual change-over switch. Handle and shaft has to be ordered separately.
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
170 mm | 6.69 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
2.9 kg | 6.39 lb
Package Level 1 Units
1 piece
Package Level 1 Width
186 mm | 7.32 in
Package Level 1 Depth / Length
300 mm | 11.81 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
3.2 kg | 7.05 lb
Package Level 1 EAN
6417019252933
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft not included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 200 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 200 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 12 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Open
Ampere Rating
200 A
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: The switch is rated for 3 poles and 200 A, enabling main-circuit transfers with solid thermal margins. Business impact: It supports reliable operation across 380–415 V, 500 V, and 690 V systems, reducing heat buildup and downtime during source changes. Application: Ideal for control panels, motor starters, and critical feeders in manufacturing lines where uninterrupted power is essential.Feature: Front-operated mechanism with base mounting simplifies access and installation. Business impact: Operators can perform transfers quickly while maintaining enclosure integrity, lowering maintenance time. Application: Suitable for wall- or cabinet-mounted switchgear in machine rooms and process plants.Feature: Screw terminals with 20 mm width support robust, serviceable terminations. Business impact: Reduces wiring errors and eases field terminations for technicians. Application: Heavy-current connections inside electrical panels and switchgear housings.Feature: Front IP20 protection and pollution degree 3 rating. Business impact: Guards against solid ingress and dust in indoor environments, extending switch life. Application: Panel assemblies in closed control cabinets and factory floors.Feature: Comprehensive documentation and compliance including CE declaration, RoHS, Reach, CMRT, and datasheets. Business impact: Streamlines audits, enables regulatory readiness, and improves lifecycle management. Application: Export-ready for EU markets and regulated industries, with clear procurement trail.
