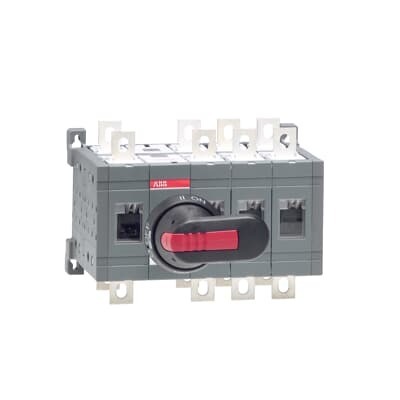

ABB 1SCA022777R0170 Change-Over Switch - 4P 160A IP20
Part Number: 1SCA022777R0170
Quick Summary
ABB 1SCA022777R0170 Change-Over Switch provides reliable four-pole manual transfer for industrial power circuits in control panels. This device helps minimize downtime by offering secure, lockable operation and straightforward maintenance with a padlockable 0-position. For panel builders, the rugged handle and shaft are included, and door interlock supports safe servicing. The product carries CE conformity, RoHS compliance, and DNV certification, underscoring safety and reliability in harsh environments. With a 160 A rating, 1000 V insulation, and IP20-front protection, it delivers robust performance in machine tools, transfer switches, and OEM panel applications while supporting compliance and lifecycle cost reduction.
Product Information
Extended Description
1SCA022777R0170 ABB: 160A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
End Of Life Disassembling Instructions
OT160-250_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
SCIP
68381f01-8b02-415a-b950-f1bf8ddd7794 Finland (FI)
Simplified SCIP
f3fa27e6-dd3e-4e27-b321-176a8fcd1518 Germany (DE) | f9576846-286b-41ee-a370-c7d97545730b Greece (GR) | 48852f75-748a-46c1-8aac-a33feb0b036f Bulgaria (BG) | 898b9d76-ebb5-4f12-b5f0-5a4d716d554d Sweden (SE) | a31e9fea-656f-4003-82dd-84543dd181ed Denmark (DK) | 73a55ca1-010a-4377-af28-2d38db219da2 Italy (IT) | c60c0f8a-cde8-4dab-9eb5-6d2c71ef032d Poland (PL) | f82eecd5-5211-4bbe-b417-e21b1f322ea6 Hungary (HU) | d9104cb9-d64d-4060-9276-09aa5616194d Portugal (PT) | 944c007c-a059-45a5-b444-20ec00dac3fc Estonia (EE) | 3b624e12-8a21-4951-ac15-1e79e807afc0 France (FR) | a8d22f65-9651-400c-9010-ad9e7195f2fc Poland (PL) | c4212c2f-7835-4449-98a9-591fab98b6ab Netherlands (NL) | 4cb7ab71-07cf-42a6-b2b5-3a1e63abf123 Belgium (BE) | 6c5b6857-bac4-4307-8a34-7e00c1df90d7 Germany (DE) | 5882e36a-5856-4835-b14c-c4395f482f9b Croatia (HR) | 6119ab07-9d12-47cf-b297-62a5d47379ad Germany (DE) | 1518843c-7d78-4beb-8691-a69d3f5f6b26 Hungary (HU) | 3ec71823-e17c-45ac-a33e-3cd1983a623b Spain (ES) | f6648e49-bb9a-44e5-8c81-99039ddf678f Germany (DE) | cfe25c01-7a86-47c6-b00d-2c73cf857b1b Czech Republic (CZ) | 35352f27-55c7-4961-a31d-f5471257cf2d Poland (PL) | 685a3ada-3d05-4d6e-8a10-d5053fcac01f Germany (DE) | 0309c787-524f-4c95-9e4c-632dcaba913c Norway (NO) | 70871ced-eeff-4b34-8565-768e0aa8f08c Belgium (BE) | dd8ef3db-59f0-41a6-97fb-3301dac0c3a4 France (FR) | 8009b3a2-9b26-4556-b885-1f1b511a3d4d Sweden (SE)
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
205 mm | 8.07 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
3.3 kg | 7.28 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
160 mm | 6.3 in
Package Level 1 Depth / Length
270 mm | 10.63 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
4.1 kg | 9.04 lb
Package Level 1 EAN
6417019253084
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 160 A
Conventional Thermal Current (Ithe)
Fully Enclosed 160 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 2.4 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 160 A | (500 V) 160 A | (690 V) 160 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 160 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 160 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 90 kW | (500 V) 110 kW | (690 V) 160 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 13 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Open
Ampere Rating
160 A
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641534
Feature → Business Impact → Application: The four-pole, 160 A rated change-over switch delivers clear, deliberate manual control, enabling predictable transitions between power sources. This reduces unplanned downtime and enhances operator safety, particularly during maintenance in machine tools and production lines. Application: panel assemblies and transfer-switch installations where reliable large-current switching is required. Feature → Business Impact → Application: The included shaft and handle, with a padlockable 0-position and door interlock, ensures secure operation and tamper-resistance during service windows. Result: safer maintenance routines and compliance with lockout/tagout practices in industrial settings. Application: OEM panels and retrofit projects needing robust mechanical interlock functionality. Feature → Business Impact → Application: Screw terminals with a 15–22 N·m tightening torque simplify wiring, shorten installation time, and reduce connection failures. Application: new builds and upgrades in control cabinets with tight space and mixed conductor sizes. Feature → Business Impact → Application: Electrical ratings including Ui 1000 V, Ith 160 A, Uimp 12 kV, and Icw 8 kA for 1 s provide a wide operating envelope. Result: higher fault tolerance and safer performance across 380–415 V and higher voltage tiers. Application: feeders, CNC machines, and transfer applications requiring durable, high-current switching. Feature → Business Impact → Application: Front IP20 protection with base mounting ensures solid mounting flexibility and straightforward integration. Application: compact control panels where protection class and space matter. Feature → Business Impact → Application: Certifications and documentation, including CE conformity, RoHS, and DNV, support regulatory compliance, supplier qualification, and easier audits. Application: regulated industries and OEM supply chains where traceability matters.
Get a Quick Quote for a ABB 1SCA022777R0170
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022777R0170?
Enquire Now
FAQs
This 4P 160A change-over switch is designed for base mounting and screw-terminal connections, matching typical ABB OT and similar low-voltage switchgear installations. Verify cabinet clearance for the 205 mm width and 160 mm depth, then align mounting holes and terminal spacing to your existing enclosure to ensure a smooth retrofit with minimal rewiring.
Important specs include: 4 poles, 160 A rated current at 380–415 V, Ui 1000 V insulation, Uimp 12 kV impulse withstand, Ith 160 A at Θ = 40 °C, Icw 8 kA for 1 s, and screw terminals with 15–22 N·m tightening torque. These ensure safe operation, adequate fault protection, and compatibility with standard industrial feeders.
Yes. Its base mounting and included shaft simplify integration into existing panels. The lockable 0-position and door interlock reduce risk during maintenance, while 160 A capacity supports high-demand lines. Use the provided data sheet OTC1GB and OT-C manuals to map wiring, interlock logic, and replacement timelines for a smooth retrofit.
The product carries CE Declaration of Conformity, RoHS compliance, and DNV certification, with CMRT and SCIP records. These demonstrate regulatory compliance, environmental responsibility, and risk management across supply chains, aiding audits, supplier qualification, and adherence to European and global standards for electrical protection components.
The combination of a robust 160 A rating, secure locking, interlock protections, and straightforward installation reduces downtime during maintenance and minimizes wiring errors. In OEM panels and transfer-switch applications, this translates to lower labor costs, faster commissioning, and lower risk of electrical incidents over the lifecycle of the installation.
