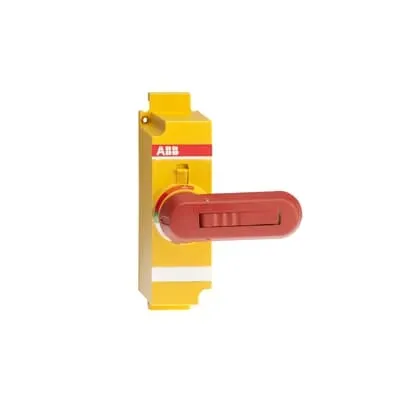

ABB 1SCA022778R6500 OSVY250DK Direct Mount Handle - RoHS
Part Number: 1SCA022778R6500
Quick Summary
ABB 1SCA022778R6500 direct mount handle enables secure enclosure access for low-voltage switchgear applications. This compact accessory addresses the common challenge of alignment and fit in tight control panels, reducing installation time and rework. The solution aligns with RoHS compliance and supports CMRT and Reach declarations, underscoring responsible sourcing and regulatory readiness. By leveraging this standardized component, engineers can streamline ABB OSV/OSVY configurations, improve maintenance access, and ensure traceable provenance across the installation. The result is a reliable, compliant, and scalable approach to control gear assembly and panel wiring in industrial environments.
Product Information
Extended Description
1SCA022778R6500 ABB: OSVY250DK HANDLE+COVER
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS200-250
Mechanical Drawings
OSV250DK-palikka.igs
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
50 mm
Product Net Height
50 mm
Product Net Depth / Length
100 mm
Product Net Weight
0.16 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
50 mm
Package Level 1 Depth / Length
100 mm
Package Level 1 Height
50 mm
Package Level 1 Gross Weight
0.16 kg
Package Level 1 EAN
6417019256627
Mounting Type
Screw mounting
Special Functions
DK
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
Feature → Business Impact → Application: Screw mounting provides repeatable, vibration-resistant attachment, reducing misalignment and service calls in panel enclosures; this translates to lower commissioning time and fewer field adjustments during installation. The 50x50x100 mm footprint fits compact control cabinets, enabling consistent ergonomics and safer operation in crowded panels. Continuous RoHS compliance and CMRT/Reach declarations minimize procurement risk and support sustainability reporting for electrical assemblies in manufacturing plants. The direct mount DK variant simplifies integration with OSV250DK families, enabling faster swap-outs and standardization across SKUs, which lowers spare-parts inventory and training costs. ETIM and eClass classifications aid in procurement categorization, improving searchability and supplier alignment for electrical protection and circuit control accessories. UL status indicates no additional certification burden for many European and North American installations, smoothing project timelines.
Get a Quick Quote for a ABB 1SCA022778R6500
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022778R6500?
Enquire Now
FAQs
The OSVY250DK Direct Mount Handle is designed for screw mounting to ABB OSV-based panels. Align the handle with the enclosure opening, secure with the two screws provided, and verify clear access clearance. Ensure the surface is clean to prevent cross-threading, and test the handle operation before commissioning to avoid enclosure disturbance during live operation.
This accessory features a product net width of 50 mm, product net height of 50 mm, and product net depth of 100 mm. It weighs 0.16 kg and is packaged as a single piece per box. These dimensions support compact panel integration while preserving adequate grip and maneuverability during operation.
Yes. The component is RoHS compliant under EU directive 2011/65/EU and amendment 2015/863, and it carries Reach Declaration along with CMRT for conflict minerals reporting. These certifications help ensure regulatory alignment, sustainability reporting, and supply chain transparency in industrial electrical assemblies.
The OSVY250DK Direct Mount Handle is specified for screw mounting and is part of ABB’s OS family accessories, designed for low-voltage switchgear. It provides secure handling and reliable enclosure access, enhancing maintenance workflows and panel reliability in electrical protection and circuit control setups.
By enabling faster installation, standardized mounting, and reduced risk of misalignment, the handle lowers commissioning time and field rework. Its small footprint and compatibility with ABB OS components simplify stock management and spare parts planning, while RoHS/CMRT/Reach compliance supports regulatory audits and sustainability reporting.
