ABB 1SCA022779R7700 - CMRT Conflict Minerals
Part Number: 1SCA022779R7700
Quick Summary
1SCA022779R7700 is an ABB direct-mount handle for electrical protection enclosures, optimized for control panels. Installers often struggle with secure mounting, edge protection, and maintaining compact footprints in tight panel spaces. Ideal for OSVY200BK assemblies and other switchgear accessories. This solution supports CMRT conflict-minerals reporting, REACH declarations, and RoHS compliance, helping you meet regulatory and sustainability goals. With screw mounting and a lightweight 0.14 kg profile, it streamlines installation and reduces assembly time. It also aligns with ETIM EC002498 and UNSPSC 31162801, facilitating standard procurement and cross-system compatibility. This makes it a practical choice for engineers seeking reliable, compliant hardware that supports faster commissioning and longer service life.
Product Information
Extended Description

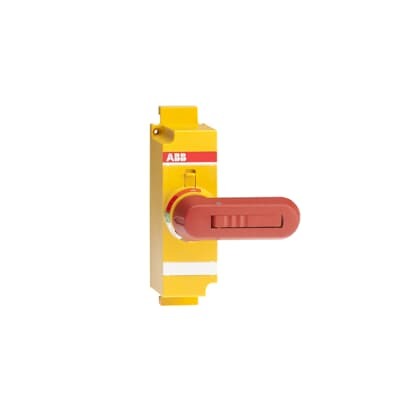

1SCA022779R7700 ABB: OSVY200BK HANDLE+COVER
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS200-250
Mechanical Drawings
OSV200BK-palikka.igs
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
50 mm
Product Net Height
50 mm
Product Net Depth / Length
100 mm
Product Net Weight
0.14 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
50 mm
Package Level 1 Depth / Length
100 mm
Package Level 1 Height
50 mm
Package Level 1 Gross Weight
0.14 kg
Package Level 1 EAN
6417019256610
Mounting Type
Screw mounting
Special Functions
BK
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC
31162801
IDEA Granular Category Code (IGCC)
3038 >> Handles or knobs
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
Direct mounting with screw fastening reduces bracketry and simplifies field installation, delivering a cleaner panel and faster commissioning. This translates to lower labor costs and decreased mounting errors on control panels and OSVY200BK installations. Ideal for OSVY200BK assemblies and other switchgear accessories. CMRT conflict-minerals reporting, REACH declarations, and RoHS compliance help you meet regulatory and sustainability goals, reducing audit risk and supplier-sourcing complexities. With a compact 50x50x100 mm footprint and a light 0.14 kg weight, installation is easier in tight spaces and shipping costs are minimized. ETIM EC002498 and UNSPSC 31162801 alignment streamlines procurement and cross-system compatibility. BK finish and screw-mount versatility offer reliable, durable hardware for fast commissioning and long service life. UL status note: no extra certification is needed, simplifying compliance workflows.
Get a Quick Quote for a ABB 1SCA022779R7700
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022779R7700?
Enquire Now
FAQs
Begin by confirming the mounting location on the enclosure face, align the handle with the screw holes, and secure using appropriate panel screws for screw mounting. Verify that the BK finish is unobstructed and that the handle moves smoothly through its operating range. This straightforward installation reduces setup time and minimizes alignment errors, especially in constrained panels.
Key specs include a 50 mm width, 50 mm height, and 100 mm depth, with a net weight of 0.14 kg. It uses screw mounting, features a BK finish, and is designed for direct mounting on OSVY200BK assemblies. The part originates from Finland and aligns with ETIM EC002498 as well as UNSPSC 31162801 for streamlined procurement.
Yes. The product carries CMRT reporting for conflict minerals, REACH declarations for chemical compliance in AC switches and fusegear, and RoHS information indicating compliance with EU directives. This makes it suitable for regulated manufacturing environments seeking supply-chain transparency and material safety without additional certifications.
UL certification is listed as not required for this component, which can simplify compliance steps in certain projects. In addition to the UL note, the part adheres to RoHS, REACH, and CMRT standards, and fits ETIM EC002498 and UNSPSC 31162801 classifications, helping with ledgering and supplier qualification in typical plant BOMs.
The direct-mount design reduces mounting hardware and assembly steps, lowering labor time and risk of misalignment. Lightweight packaging and standard procurement classifications cut shipping and purchasing overhead. When combined with CMRT/ROHS/REACH compliance, it minimizes regulatory risk and audit costs, supporting faster project turnover and longer panel service life in high-throughput production environments.
