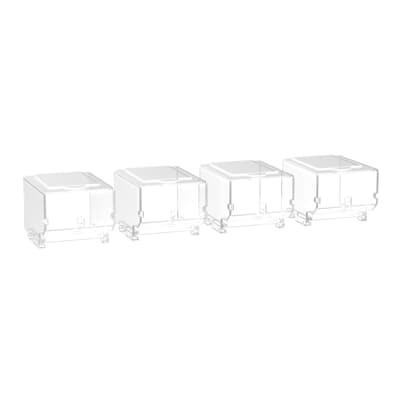

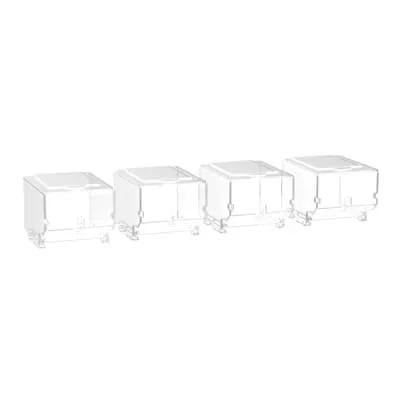

ABB 1SCA022782R7200 OSS400T1S/4 Terminal Shroud - S/4
Part Number: 1SCA022782R7200
Quick Summary
OSS400T1S/4 Terminal Shroud from ABB protects low-voltage terminations in control panels and electrical cabinets. Engineers often contend with dust ingress, cable misrouting, and enclosure gaps that compromise safety, reliability, and compliance. This accessory carries CMRT, REACH declarations, and RoHS compliance to meet European standards and corporate sustainability goals, reducing risk across the supply chain. Designed for the ABB OS/OSM family, it accelerates installation, minimizes field rework, and supports consistent assembly quality in machine-building and panel projects. The compact, lightweight form factor simplifies retrofits and spare-part stocking, while documented compatibility with OS and OS1GB catalogs helps procurement target the right components quickly.
Product Information
Extended Description
1SCA022782R7200 ABB: OSS400T1S/4 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
No Instructions and Manuals needed
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
64 mm
Product Net Height
55.8 mm
Product Net Depth / Length
81 mm
Product Net Weight
0.012 kg
Package Level 1 Units
bag 4 piece
Package Level 1 Width
200 mm
Package Level 1 Depth / Length
100 mm
Package Level 1 Height
100 mm
Package Level 1 Gross Weight
0.012 kg
Package Level 1 EAN
6417019254593
Special Functions
S/4
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
Protective geometry and materials shield exposed terminals, reducing dust ingress and accidental contact. This directly improves operator safety and extends the service life of the termination area, especially in dusty, harsh industrial environments. It integrates seamlessly with ABB OS and OSM switches, ensuring quick, tool-free assembly in OEM and retrofit projects. CMRT, REACH Declaration, and RoHS status provide clear compliance footing for global supply chains and customer audits, supporting risk management and audit readiness. The product aligns with ETIM classifications EC002498 for low-voltage switch technology spare parts, aiding accurate cataloging and procurement. With dimensions 64 mm wide, 55.8 mm high, and 81 mm deep, the shroud fits compact enclosures without crowding adjacent components, while its 0.012 kg weight aids handling during installation. Packaging supports 1 piece MOQ and four-piece bag configurations, streamlining warehouse planning. Documentation references include the data sheet and OS/OSM catalog PDFs for quick engineering tolerance checks and correct part selection.
Get a Quick Quote for a ABB 1SCA022782R7200
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022782R7200?
Enquire Now
FAQs
The OSS400T1S/4 Terminal Shroud is designed as a protective accessory for ABB OS and OSM low-voltage switchgear families. It also complements the OS1GB catalog where applicable, enabling rapid selection during OEM builds and retrofit projects. Its S/4 function supports enhanced safety and organization of terminal blocks within ABB control panels.
The shroud provides a product net width of 64 mm, height of 55.8 mm, and depth of 81 mm, with a net weight of 0.012 kg. These compact dimensions support snug enclosure layouts and easy handling during installation, while preserving clear access to terminals for maintenance and inspection.
Yes. The OSS400T1S/4 Terminal Shroud includes CMRT, REACH declarations, and RoHS compliance, aligning with EU directive 2011/65/EU and its 2015/863 amendment. This helps with audits, supply-chain compliance, and ESG initiatives, particularly in electrical cabinet assembly, machine building, and energy automation applications.
The shroud is designed for quick, tool-free integration with ABB OS/OSM switchgear, simplifying retrofits in existing cabinets. Its lightweight construction and standard dimensions minimize the risk of clearance issues and interference with adjacent components, while the availability of datasheets and OS/OSM catalogs supports engineering validation and correct part selection.
Minimum order quantity is 1 piece, with packaging listed as bagged units (4 pieces per bag) for efficient warehouse handling. The product origin is Finland (FI), tariff number 85389099, and the EAN is 6417019254593, which facilitates accurate invoicing, customs clearance, and stock-keeping in global procurement systems.
