ABB 1SCA022783R1570 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA022783R1570
Quick Summary
ABB 1SCA022783R1570 switch-disconnector is a two-pole isolator for base-mounted, industrial switchgear. Engineers often face challenges with safe lockout and reliable isolation in crowded panels, which can lead to costly downtime. This device aligns with IEC 60947-3 and CE conformity, while offering front IP00 protection and a durable mechanical life suitable for demanding environments. By integrating with lug-terminal installations and base mounting, it supports streamlined procurement and installation, reducing installation time and stocking complexity for panel builders and integrators.
Product Information
Extended Description

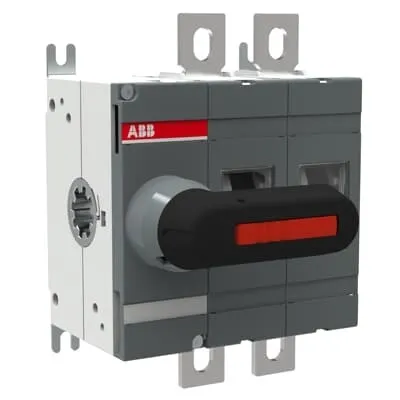

1SCA022783R1570 ABB: 2-pole, front operated, base mounted switch-diconnector with black direct mount handle, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
Switch Disconnectors OT200-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
110.5 mm
Product Net Height
150 mm
Product Net Depth / Length
107 mm
Product Net Weight
1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm | 6.7 in
Package Level 1 Depth / Length
190 mm | 7.5 in
Package Level 1 Height
145 mm | 5.7 in
Package Level 1 Gross Weight
1.17 kg | 2.6 lb
Package Level 1 EAN
6417019254708
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Direct mounted pistol type handle
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
2P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4.0 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A | (1000 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 60 kW | (400 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 02 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
The 2P front-operated switch-disconnector features a direct-mounted pistol-type handle for intuitive operation and secure locking, improving maintenance safety and minimizing operator error in busy control cabinets. Its 200 A rated current (Ith/Ie) across 380–415 V up to 1000 V and a 12 kV rated impulse withstand voltage provide reliable protection for high-demand feeders while simplifying device selection in electrical distribution schemes. Base mounting with lug terminals simplifies installation and future upgrades, enabling quick retrofits in existing panels and MCCs. Power loss of 4.0 W per pole translates to lower energy waste and cooler operation in cabinet environments, while a 20,000-cycle mechanical durability supports lifecycle reliability in heavy-duty applications. Compliance with IEC 60947-3 and CE declarations ensures regulatory alignment, with RoHS/REACH considerations addressing environmental requirements. The device’s 2P configuration, front-operated mechanism on the left side, and standard terminal layout support consistent replacement and maintenance workflows across installations.
Get a Quick Quote for a ABB 1SCA022783R1570
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022783R1570?
Enquire Now
FAQs
The unit is a 2P base-mounted switch-disconnector with lug terminals, designed for straightforward integration into standard switchgear and MCCs. Ensure the panel provides space for a 110.5 mm width device, uses the included lug terminals, and accommodates a front-operated mechanism on the left side. Tightening torque should follow IEC 60947-1 guidance (15–22 N·m). This minimizes modification needs and reduces commissioning time.
Rated Operational Current (Ie) is 200 A across 380–415 V, with the same rating at 500–1000 V. The device offers a Rated Short-Circuit Making Capacity (Icm) of 30 kA at 690 V, and a Rated Short-time Withstand Current (Icw) of 8 kA for 1 s, along with a Rated Impulse Withstand Voltage (Uimp) of 12 kV and Ui of 1000 V, meeting IEC 60947-3 requirements for reliable fault isolation.
Yes. The 2P front-operated design with 200 A capacity, base mounting, and lug-terminal connection makes it well-suited for main feeders in MCCs and robust control cabinets. Its compact footprint, combined with high current capability and straightforward maintenance, supports efficient protection and isolation for motor feeders and distribution panels.
Key certifications include IEC 60947-3 compliance and a CE Declaration of Conformity for OT160-250 family documents, with associated environmental declarations (EPD/PEP) and DNV GL certificates tied to ABB switchgear ranges. Environmental and RoHS/REACH statements are also referenced, ensuring regulatory alignment for European deployments and safety-critical applications.
With a mechanical durability of 20,000 cycles and a modest power loss of 4.0 W per pole, the device reduces maintenance interventions and energy waste over its lifecycle. Its compatibility with standard terminal types and base mounting accelerates installation, minimizes spare-part complexity, and lowers total cost of ownership by reducing downtime during isolation, testing, and servicing.
