ABB 1SCA022860R0710 Switch-Disconnectors - IEC 60947-3
Part Number: 1SCA022860R0710
Quick Summary
ABB 1SCA022860R0710 Switch-Disconnectors provide four-pole isolation for reliable power control in industrial panels. This solution helps engineers avoid unplanned downtime by delivering predictable switching performance and straightforward wiring. The devices align with IEC 60947-3 and CE conformity, backed by DNV GL certification for related OT ranges and RoHS/EPD environmental declarations to support sustainability goals. For procurement teams, the base-mounted design with lug terminals simplifies installation and reduces panel depth, while the side-operated mechanism offers quick operation even in tight spaces. With robust mechanical durability and proven insulation and short-circuit ratings, this family supports compliant, cost-effective switchgear strategies across industrial automation applications.
Product Information
Extended Description

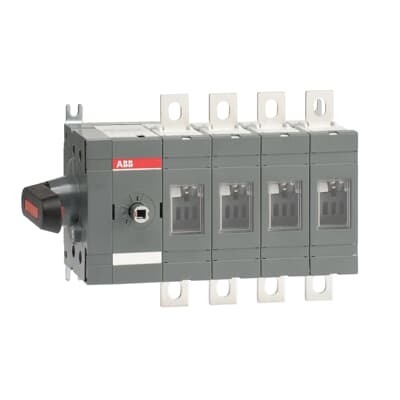

1SCA022860R0710 ABB: 4-pole, side operated, base mounted switch-diconnector with black direct mount handle, terminal bolt kit included
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
Switches, Switch-disconnectors OT and OTM. Catalogue OT8GB 07-07
Instructions and Manuals
1SCC301068M0204
Mechanical Drawings
OT200-250ES04K, dwg-file | OT200-250ES04K, dxf-file | OT200ES04K.igs
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
233.5 mm
Product Net Height
150 mm
Product Net Depth / Length
107 mm
Product Net Weight
2 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
170 mm | 6.7 in
Package Level 1 Depth / Length
250 mm | 9.8 in
Package Level 1 Height
155 mm | 6.1 in
Package Level 1 Gross Weight
2.2 kg | 4.8 lb
Package Level 1 EAN
6417019308777
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 200 A
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Direct mounted pistol type handle
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Side operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out | Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 4.0 W
Rated Conditional Short-Circuit Current (Inc)
(315 A fuse, 500 V) 100 kA | (355 A fuse, 690 V) 80 kA | (250 A fuse, 690 V) 100 kA
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Power AC-23A (Pe)
(220 ... 240 V) 60 kW | (400 ... 415 V) 110 kW | (500 V) 132 kW | (690 V) 200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Special Functions
No
Standards
IEC 60947-3
Switches Operating Mechanism
Mechanism at the End of the Switch | 04 (Left Side)
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
Tightening Torque
acc. IEC 60947-1 15 … 22 N·m
A2L Certificate – IEC
A2L Refrigerant Declaration of Conformity / OT160-800
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
DNV GL Certificate
DNV GL Certificate / OT100-160G_OT160EV-400
UL Certificate
No certification needed
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3661719
Feature: Four-pole, side-operated, base-mounted design enables full isolation with minimal panel intrusion. Benefit: Improves maintenance safety and reduces wiring complexity in compact control panels, making it ideal for machine control and distribution boards in manufacturing environments. Application: Use in panel assemblies where reliable isolation and easy access are critical. Feature: Ith of 200 A and Ie rating at 380–415 V and 690 V ensures capable main circuit interruption. Benefit: Supports high-demand drives and loads without derating, improving overall system availability. Application: Heavy machinery, conveyor systems, and packaging lines requiring proven current carrying capability. Feature: Lug terminals with a tightening torque of 15–22 N·m simplify field connections. Benefit: Ensures secure terminations and consistent electrical contact, reducing maintenance callbacks. Application: Safe, code-compliant wiring in new installations or retrofits. Feature: Mechanical durability of 20000 operations and 4P configuration deliver long life with predictable wear. Benefit: Lowers maintenance cost and extends service intervals, increasing uptime. Application: Continuous production lines with frequent switching actions. Feature: Environmental and compliance stack including RoHS, CMRT, and EPD data plus IEC 60947-3 adherence. Benefit: Facilitates regulatory compliance and sustainability reporting. Application: Projects demanding green credentials and traceable material declarations.
Get a Quick Quote for a ABB 1SCA022860R0710
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022860R0710?
Enquire Now
FAQs
This device uses base mounting with lug terminals and a side-operated mechanism. Ensure panel depth accommodates 107 mm net depth, provide proper clearance for the 4P configuration, and torque terminations to 15–22 N·m. Verify mounting holes align with the base mounting pattern and use correct enclosure approvals for your region.
It supports Ith 200 A and Ie rated currents at 380–415 V and 690 V, Ui of 1000 V, Uimp of 12 kV, and conforming to IEC 60947-3. Rated Short-Circuit Making Capacity is up to 30 kA at 690 V, with 1 s short-time withstands of 8 kA for low voltage scenarios.
Yes. It includes a Declaration of Conformity to CE and IEC 60947-3 compliance. It also carries RoHS and CMRT material declarations and supports environmental data like EPD to assist with sustainability reporting.
Ideal for distribution panels, machine control enclosures, and heavy equipment where reliable isolation, quick operation, and space efficiency are required. The 4P arrangement supports simultaneous disconnect of all poles, enhancing maintenance safety in demanding industrial environments.
With 20000 mechanical cycles and a low per-pole power loss of 4.0 W, the unit reduces heat and wear in control panels while lowering downtime for maintenance. Secure lug terminations and robust insulation further minimize troubleshooting, delivering dependable long-term operational value.
