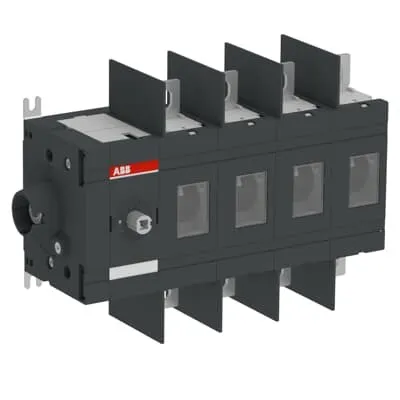

ABB 1SCA022870R6370 SWITCH-DISCONNECTOR - IEC 60947-3 / UL 98
Part Number: 1SCA022870R6370
Quick Summary
ABB 1SCA022870R6370 SWITCH-DISCONNECTOR is a high-capacity switch-disconnector designed for safe isolation of 4-pole motor circuits in industrial power distribution. Owners face downtime from unexpected disconnect failures and the challenge of performing safe maintenance in live systems. This device carries IEC 60947-3 and UL 98 certifications, a CE declaration, and a front IP00 protection level, supporting compliant, safe operation in controlled environments. Designed for easy base mounting and seamless ABB EcoSolutions compatibility, it delivers quick installation, predictable performance, and lower total cost of ownership for distributors and OEMs managing electrical protection across facilities. Its 4P architecture, 200 A rating, and 20,000 mechanical durability cycles ensure long service life in frequent switching applications.
Product Information
Extended Description
1SCA022870R6370 ABB: OT200US04 SWITCH-DISCONNECTOR
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
No documentation needed
Instructions and Manuals
Switch Disconnectors OT160-250_S
Mechanical Drawings
OT200US04, dwg-file | OT200US04, dxf-file
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
248.4 mm
Product Net Height
170 mm
Product Net Depth / Length
82.5 mm
Product Net Weight
2.1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
220 mm | 8.66 in
Package Level 1 Depth / Length
260 mm | 10.24 in
Package Level 1 Height
155 mm | 6.10 in
Package Level 1 Gross Weight
2.3 kg | 1.1 lb
Package Level 1 EAN
6417019337500
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Handle Type
Handle and shaft not included
Lock Type
No
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
200 A
Horsepower Rating UL/CSA
(acc. to UL 200 V) 60 Hp | (acc. to UL 208 V) 60 Hp | (acc. to UL 240 V) 75 Hp | (acc. to UL 480 V) 150 Hp | (acc. to UL 600 V) 200 Hp
Tightening Torque
acc. IEC 60947-1 22.6 N·m
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
UL Certificate
cULus certificate OT200-400
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Four-pole, 200 A capability with lug terminals and base mounting. Business impact: Enables safe, simultaneous isolation of all phases for motors and feeders, reducing commissioning time and improving protection against arc flash. Application: Suitable for main distribution panels and motor control centers in process industries. Feature: Rated Short-Circuit Making Capacity of 30 kA at 690 V and Rated Short-time Withstand Current of 8 kA for 1 s. Business impact: Enhances system resilience during fault events, lowering the risk of equipment damage and downtime. Application: Critical in high-energy drives and large-capacity switchgear. Feature: IEC 60947-3 / UL 98 compliance with CE declaration and IP00 protection. Business impact: Simplifies regulatory adherence and facilitates global deployment, while ensuring basic ingress protection for clean environments. Application: Widely used in European and North American electrical installations. Feature: Mechanical durability rated at 20,000 cycles and 2.1 kg net weight. Business impact: Improves lifecycle reliability and reduces maintenance intervals, lowering total cost of ownership. Application: High-cycle applications in packaging, processing, and material handling. Feature: Terminal type is Lug terminals and tightening torque is 22.6 N·m. Business impact: Ensures robust, repeatable installation with common hand tools, minimizing contact resistance and thermal issues. Application: Field services and OEM assembly lines benefit from straightforward wiring. Feature: Environmental and compliance information including CMRT, REACH, RoHS, and EPD/EPD data. Business impact: Supports sustainability reporting and regulatory compliance across global supply chains. Application: For manufacturers pursuing green procurement and responsible sourcing.
Get a Quick Quote for a ABB 1SCA022870R6370
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022870R6370?
Enquire Now
FAQs
This 4P switch-disconnector is designed for base mounting with lug terminals and does not include a handle or shaft. It fits standard ABB panel layouts and ABB EcoSolutions ecosystems, allowing seamless retrofits or replacements in existing motor control centers with minimal wiring changes and tool requirements.
With a conventional thermal current of 200 A and a short-circuit making capacity of 30 kA at 690 V, it safely interrupts high-energy motor circuits. The 4P arrangement ensures true multi-phase isolation, while lug terminals and a 22.6 N·m tightening torque guarantee reliable, low-resistance connections.
Yes. It adheres to IEC 60947-3 and UL 98, supported by CSA C22.2 NO.4, CE declarations, RoHS, CMRT, and EPD information. Its IP00 rating corresponds to basic protection suitable for controlled environments, helping you meet regulatory and sustainability targets.
The device uses lug terminals and requires a tightening torque of 22.6 N·m. This combination supports secure, vibration-resistant connections ideal for industrial panels, while the base-mount design simplifies mounting and reduces assembly time.
With a mechanical durability specification of 20,000 cycles and a compact 2.1 kg net weight, the unit offers long service life in high-switching applications. Its robust build reduces maintenance frequency, lowers downtime, and minimizes total cost of ownership in motor protection schemes.
