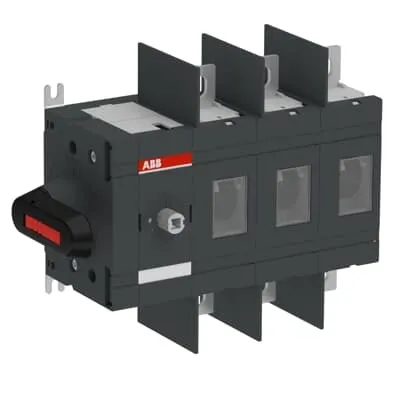

ABB 1SCA022870R6450 SWITCH-DISCONNECTOR - IEC 60947-3 / UL 98
Part Number: 1SCA022870R6450
Quick Summary
The ABB 1SCA022870R6450 SWITCH-DISCONNECTOR isolates main circuits in low-voltage switchgear. This design helps reduce downtime and enhances operator safety by delivering reliable, fail-safe isolation. Certified to IEC 60947-3 with CE Declaration of Conformity and UL/cULus listings, it also carries Front IP00 protection, aligning with safety and regulatory expectations. The combination of robust mechanical durability and compliant engineering makes it suitable for scalable panel layouts and quick maintenance cycles, while compatible base mounting and lug-terminal connections simplify installation. For procurement teams, this means predictable performance, easier spares management, and a clear path to standardization across electrical protection and circuit control needs.
Product Information
Extended Description
1SCA022870R6450 ABB: OT200US03K SWITCH-DISCONNECTOR
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
No documentation needed
Instructions and Manuals
1SCC301068M0204
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
222.2 mm
Product Net Height
170 mm
Product Net Depth / Length
107 mm
Product Net Weight
1.7 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
220 mm | 8.66 in
Package Level 1 Depth / Length
260 mm | 10.24 in
Package Level 1 Height
155 mm | 6.10 in
Package Level 1 Gross Weight
2.0 kg | 0.90 lb
Package Level 1 EAN
6417019337517
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Handle Color
Black
Handle Type
Handle and shaft not included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
3P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
200 A
Horsepower Rating UL/CSA
(acc. to UL 200 V) 60 Hp | (acc. to UL 208 V) 60 Hp | (acc. to UL 240 V) 75 Hp | (acc. to UL 480 V) 150 Hp | (acc. to UL 600 V) 200 Hp
Tightening Torque
acc. IEC 60947-1 22.6 N·m
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
UL Certificate
cULus certificate OT200-400
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: Conventional Thermal Current (Ithe) of 200 A enables high-current mains isolation in fully enclosed, three-pole configurations. Business Impact: Supports reliable switching under demanding load conditions while keeping energy losses manageable. Application: Ideal for main circuits in industrial panels requiring robust 3P protection with predictable thermal behavior. Long-tail keywords: high-current switch disconnector, three-pole switch, low-voltage protection. Feature: Rated Operational Current Ie up to 250 A across multiple voltages (380–690 V). Business Impact: Allows component compatibility with common industrial feeders while minimizing parts diversity. Application: Suitable for LV switchgear installations with standard 380–690 V networks. Long-tail keywords: 250 A switch disconnector, IEC 60947-3 compliant, LV panel design. Feature: Rated Impulse Withstand Voltage (Uimp) of 12 kV and Rated Short-Circuit Making Capacity (Icm) of 30 kA. Business Impact: Enhances fault tolerance and safety margin during transient events, reducing panel downtime. Application: Critical in fault protection zones of motor feeders and distribution blocks. Long-tail keywords: 12 kV surge protection, short-circuit capacity, electrical safety. Feature: Environmentally conscious and standards-driven design with Front IP00 protection and Pollution Degree 3. Business Impact: Simplifies compliance and maintenance planning while ensuring safe handling in clean indoor environments. Application: Panel assemblies in controlled industrial environments. Long-tail keywords: IP00 protection, EN IEC standards, environmental compliance. Feature: Terminal Type Lug terminals with a tightening torque of 22.6 N·m and Base mounting for easy installation. Business Impact: Reduces commissioning time and ensures secure, balanced connections across 3P circuits. Application: Field-ready for rapid installations in new builds or retrofits. Long-tail keywords: lug terminals, installation torque, base mounting. Feature: Compliance and documentation with CE DoC, UL/cULus, and standard references IEC 60947-3 / UL 98 / CSA C22.2 NO.4. Business Impact: Streamlines procurement and regulatory alignment, lowering risk in audits and inspections. Application: Global panel manufacturing and regulated industries. Long-tail keywords: CE declaration, UL listing, CSA compliance.
Get a Quick Quote for a ABB 1SCA022870R6450
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022870R6450?
Enquire Now
FAQs
This switch-disconnector features base mounting and lug terminals, simplifying alignment with standard 3P panel layouts. The base-mount design minimizes bracketry while enabling secure, removable connections for preventive maintenance. Expect straightforward installation in new builds or retrofits with a clean, serviceable footprint.
Key ratings include 200 A Ithe (fully enclosed), 250 A Ie, Ui of 1000 V, Uimp of 12 kV, Icw up to 8 kA for 1 s, and Icm of 30 kA at 690 V. These figures support reliable main-circuit isolation in LV switchgear while meeting IEC 60947-3 and UL 98 requirements.
Yes. It is designed to IEC 60947-3 and UL 98 / CSA C22.2 NO.4 compliant, with additional CE DoC documentation. This alignment facilitates regulatory approval, supplier qualification, and streamlined procurement for regulated industries.
Absolutely. The product is specified as a 3P switch-disconnector with lug terminals and base mounting, making it well-suited for three-phase main circuits in LV panels and distribution boards, improving consistency across phase connections.
Lifecycle considerations include a mechanical durability rating of 20,000 cycles, with end-of-life disassembly instructions linked to OT160-250 families. Regular torque checks (22.6 N·m) and inspection of lug terminations ensure long-term reliability and predictable maintenance planning.
