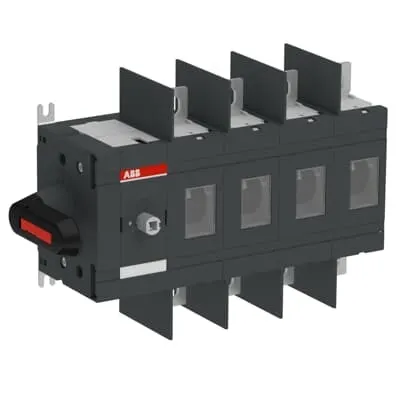

ABB 1SCA022870R6530 Switch-Disconnectors - IEC 60947-3 / UL 98
Part Number: 1SCA022870R6530
Quick Summary
ABB 1SCA022870R6530 Switch-Disconnectors deliver main-circuit isolation for industrial control panels. This solution addresses the challenges of safe, reliable off-line disconnection during maintenance and startup in demanding environments. The device conforms to key standards such as IEC 60947-3 and UL 98, with CSA C22.2 NO.4 and CE declarations, and features IP00 protection for interior panel use. Designed for panel builders and machine builders, it supports robust performance in high-current applications while maintaining installation efficiency. By combining a solid 200 A rating with straightforward base mounting and lug-terminal connections, it delivers predictable behavior, reduced downtime, and improved overall system safety.
Product Information
Extended Description
1SCA022870R6530 ABB: OT200US04K SWITCH-DISCONNECTOR
End Of Life Disassembling Instructions
OT160-250 Disassembling Instruction
Environmental Information
PEI OT160-250
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Toxic Substances Control Act - TSCA
Toxic Substances Control Act (TSCA) Declaration / AC Switches and Fusegear
Data Sheet, Technical Information
No documentation needed
Instructions and Manuals
1SCC301068M0204
Environmental Product Declaration - EPD
PEP, EPD, OT160-250
Degree of Protection
Front IP00
Environmental Information
PEI OT160-250
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
265.2 mm
Product Net Height
170 mm
Product Net Depth / Length
107 mm
Product Net Weight
2.1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
220 mm | 8.66 in
Package Level 1 Depth / Length
260 mm | 10.24 in
Package Level 1 Height
155 mm | 6.10 in
Package Level 1 Gross Weight
2.4 kg | 1.1 lb
Package Level 1 EAN
6417019337524
Conventional Thermal Current (Ithe)
Fully Enclosed 200 A
Degree of Protection
Front IP00
Handle Color
Black
Handle Type
Handle and shaft not included
Lock Type
Yes
Mechanical Durability
20000
Mounting Type
Base mounting
Number of Poles
4P
Pollution Degree
3
Power Loss
at Rated Operating Conditions per Pole 6.5 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
acc. to IEC/EN 60664-1 1000 V
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 250 A | (500 V) 250 A | (690 V) 250 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-Circuit Making Capacity (Icm)
(690 V) 30 kA
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kA
Standards
IEC 60947-3 / UL 98 / CSA C22.2 NO.4
Terminal Type
Lug terminals
Tightening Torque
acc. IEC 60947-1 22.6 N·m
Maximum Operating Voltage UL/CSA
600 V
Ampere Rating
200 A
Horsepower Rating UL/CSA
(acc. to UL 200 V) 60 Hp | (acc. to UL 208 V) 60 Hp | (acc. to UL 240 V) 75 Hp | (acc. to UL 480 V) 150 Hp | (acc. to UL 600 V) 200 Hp
Tightening Torque
acc. IEC 60947-1 22.6 N·m
ATEX Certificate
No certification needed
Declaration of Conformity - CE
Declaration of Conformity / OT160EV_, OT200E_, OT250E_, OT200U_
UL Certificate
cULus certificate OT200-400
VDE Certificate
No certification needed
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: The 4P configuration delivers a true main-circuit isolation with a fully enclosed 200 A rating, enabling safe maintenance windows and minimizing unplanned downtime in motor control centers and production lines. This translates to higher equipment availability and lower risk during servicing. Application: Suitable for control panels and MCCs where reliable disconnection of high-current loads is required, particularly in machine builders and process automation environments. Feature → Business Impact → Application: Rated insulation voltage of 1000 V and a rated impulse withstand voltage of 12 kV provide strong surge and insulation margins, reducing arcing risk and helping meet stricter plant safety standards. Application: Ideal for high-energy switching applications in industrial automation and electrical distribution. Feature → Business Impact → Application: Power loss of 6.5 W per pole at rated conditions improves energy efficiency in panel assemblies, contributing to cooler enclosures and lower operating costs. Application: Panels with tight thermal management constraints or energy-conscious installations. Feature → Business Impact → Application: UL/CSA certifications and IEC 60947-3 compliance simplify procurement and installation across multinational sites, while CE declarations support global regulatory alignment. Application: Global manufacturing environments requiring consistent product conformity. Feature → Business Impact → Application: 4P, base mounting, and lug-terminal design enable straightforward, vibration-tolerant mounting with secure wire terminations, reducing commissioning time and ensuring long-term connection integrity. Application: New panel builds and retrofits in automation and process industries. Feature → Business Impact → Application: Mechanical durability rated at 20,000 cycles, plus a robust tightening torque of 22.6 N·m, provides long-term reliability in frequent operation scenarios and under normal maintenance cycles. Application: Repetitive switching in conveyors, presses, and machine tooling where durability matters. Feature → Business Impact → Application: Environmental and materials compliance (CMRT, REACH, RoHS) supports sustainability reporting and regulatory adherence, mitigating supply-chain risk. Application: Industries with strict environmental and material compliance requirements.
Get a Quick Quote for a ABB 1SCA022870R6530
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022870R6530?
Enquire Now
FAQs
Yes. The device uses base mounting and lug terminals, aligning with common 4P disconnect families. It supports up to 200 A with a 1000 V insulation rating and 22.6 N·m tightening torque, making it compatible with many standard panel designs. Verify panel cutouts and terminal sizing prior to replacement to ensure a seamless retrofit.
It delivers a rated short-circuit making capacity of up to 30 kA at 690 V and a 1 s short-time withstand current of 8 kA, plus a 200 A operating current. These ratings provide robust protection for motors and heavy loads, reducing arc risk and helping maintain equipment uptime during fault events.
Yes. The unit complies with IEC 60947-3 and UL 98, with CSA C22.2 NO.4 declarations and CE conformity. It carries a UL/CSA 600 V rating and is designed for reliable operation in controlled environments, aligning with international procurement standards.
Follow the 22.6 N·m tightening torque for lug-terminals, ensure proper panel ventilation for IP00 devices, and place the unit on a stable base-mount. The product’s 4P configuration, 200 A rating, and 1000 V insulation support robust performance in typical panel environments while minimizing thermal stress and maintenance needs.
Best suited for control panels, motor control centers, and automated machinery in manufacturing and process industries. Its high current rating, strong short-circuit performance, and durable construction reduce downtime, improve safety, and streamline compliance reporting, delivering clear total-cost-of-ownership advantages over the lifecycle of industrial installations.
