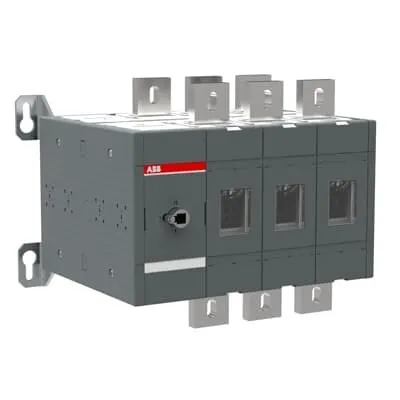

ABB 1SCA022871R7060 Change-over Switch - 1250A CE
Part Number: 1SCA022871R7060
Quick Summary
ABB 1SCA022871R7060 change-over switch is a reliable 1250 A, 3-pole solution for main and standby power transfer in industrial switchgear. This design helps reduce downtime and switching errors in demanding environments by offering robust mechanical action and clear terminal access. It carries CE conformity, IP20 protection on the front, and RoHS/Reach compliance, supporting European and global project requirements. The unit is intended for base mounting with screw terminals, enabling straightforward panel integration in motor control centers and distribution boards. By aligning with industry standards and providing clear disassembly and maintenance guidance, this switch helps ensure long-term availability and traceability for critical power paths.
Product Information
Extended Description
1SCA022871R7060 ABB: 1250A, 3 pole manual change-over switch. Handle and shaft has to be ordered separately.
End Of Life Disassembling Instructions
OT1000-1600_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
400 mm | 15.75 in
Product Net Height
306 mm | 12.05 in
Product Net Depth / Length
309 mm | 12.17 in
Product Net Weight
48 kg | 105.82 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
440 mm | 17.32 in
Package Level 1 Depth / Length
700 mm | 27.56 in
Package Level 1 Height
565 mm | 22.24 in
Package Level 1 Gross Weight
49 kg | 108.03 lb
Package Level 1 EAN
6417019338538
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1250 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft not included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 29 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1250 A | (500 V) 1250 A | (690 V) 1250 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1250 A | (500 V) 1250 A | (690 V) 1250 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1250 A | (500 V) 1250 A | (690 V) 1250 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 1250 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 1250 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 710 kW | (500 V) 900 kW | (690 V) 1200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
50 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
1250 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT1000_C, OT1250_C, OT1600_C, OT800U_C, OT1200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
1250 A current rating provides a robust solution for high-load transfer in distribution panels, reducing wear and improving uptime in industrial control systems. The 3-pole, front-operated design streamlines operation for operators, while base mounting and screw-terminal connectivity simplify installation and future servicing, lowering total cost of ownership. With an IP20 front protection rating and a 1000 V rated insulation voltage, it delivers safer operation in standard factory environments and higher-voltage applications alike, supporting regulatory compliance and safer maintenance windows. The device supports RoHS and Reach declarations, CMRT documentation, and CE conformity, easing procurement, risk management, and traceability across global supply chains. Disassembly and maintenance references are included to aid field service and upgrade planning. Compatible with ABB EcoSolutions guidelines, this unit fits motor control centers and switchgear assemblies requiring reliable power transfer.
