ABB 1SCA022872R1410 Change-Over Switch - CE Declaration
Part Number: 1SCA022872R1410
Quick Summary
ABB 1SCA022872R1410 Change-Over Switch is a high-capacity four-pole manual transfer device for reliable power switching in industrial automation. Operators often struggle with balancing high current demands against installation complexity and regulatory compliance. This ABB solution delivers a robust 1000 A rating, clear documentation, and a base-mounted footprint suitable for cabinets or switchgear assemblies. It carries a CE Declaration of Conformity, RoHS and Reach declarations, plus a CMRT for responsible sourcing, with Front IP20 protection and a pollution degree of 3. In addition to core electrical performance, the design supports easy procurement, long-term availability, and minimal spare parts requirements, delivering tangible business value for critical processes. Secondary keywords: 4P change-over, 1000 A transfer switch, and industrial protection systems.
Product Information
Extended Description

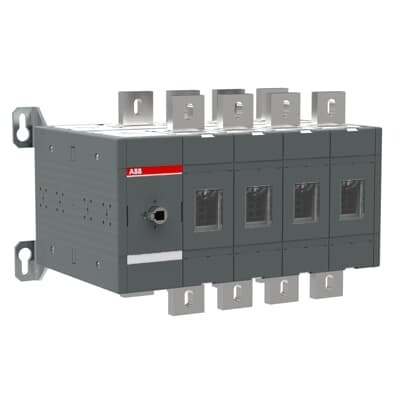

1SCA022872R1410 ABB: 1000A, 4 pole manual change-over switch. Handle and shaft has to be ordered separately.
End Of Life Disassembling Instructions
OT1000-1600_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
480 mm | 18.9 in
Product Net Height
306 mm | 12.05 in
Product Net Depth / Length
309 mm | 12.17 in
Product Net Weight
41.67 kg | 91.87 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
339 mm | 13.35 in
Package Level 1 Depth / Length
534 mm | 21.02 in
Package Level 1 Height
338 mm | 13.31 in
Package Level 1 Gross Weight
43.67 kg | 96.28 lb
Package Level 1 EAN
6417019338965
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1000 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft not included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 19 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 1000 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 1000 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 560 kW | (500 V) 710 kW | (690 V) 1000 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch | 04 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
50 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
1000 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT1000_C, OT1250_C, OT1600_C, OT800U_C, OT1200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: High current rating and four-pole design. Business Impact: Enables safe transfer of large power loads in heavy equipment without overheating or voltage imbalance. Application: Ideal for switchgear, distribution boards, and motor control centers in industrial facilities. Feature: Front-operated mechanism with open transition and defined fourth-pole behavior (right side). Business Impact: Improves operator response during source changes and reduces switching errors in live sequences. Application: Cabinets and control panels requiring reliable manual transfer control. Feature: Ui 1000 V, Uimp 12 kV, Ie ratings across 380–415 V, 500 V, and 690 V. Business Impact: Provides resilience against transients and broad voltage compatibility for diverse installations. Application: Industrial plants and process lines using varied mains voltages. Feature: Screw terminals with 50 mm width and tightening torque 50–75 N·m. Business Impact: Ensures robust, repeatable wiring with secure connections and reduced maintenance. Application: Panel builds and OEM wiring in harsh environments. Feature: Base mounting and clear mechanical specs (4P, front operation, 4th pole right side). Business Impact: Simplifies installation, reduces cabinet depth, and supports modular integration with ABB EcoSolutions. Application: New builds and retrofits in switchgear housings. Feature: Environmental and compliance data (Front IP20, Pollution Degree 3, CE/RoHS/Reach/CMRT). Business Impact: Enables faster compliance verification, safer indoor use, and responsible sourcing. Application: Industrial facilities with strict regulatory requirements. Feature: Documentation and compatibility (Disassembly Instructions, manuals OT-C). Business Impact: Lowers downtime through easy maintenance planning and parts replacement. Application: Service teams needing clear guidance for field servicing and lifecycle management.
Get a Quick Quote for a ABB 1SCA022872R1410
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022872R1410?
Enquire Now
FAQs
This model uses base mounting with four poles and screw terminals (50 mm width). The fourth pole is right-side and the device is front-operated, making it suitable for integration into existing cabinets or switchgear frames. Note that the handle and shaft are ordered separately, so plan accessory procurement accordingly to ensure a complete installation.
Verify rated operational currents of 1000 A across AC-21A, AC-22A, and AC-23A, Ui of 1000 V, and Uimp of 12 kV. The device provides 1000 A per pole with a front IP20 rating and a 1 s short-time withstand current of 50 kA rms, ensuring reliability during source transfers and fault events.
Yes. With a 1000 A per pole rating and four poles, the switch supports high-current transfers typical in motor control centers and distribution panels. Its open-transition, front-operated design reduces switching time and improves operator safety during source changes in demanding industrial environments.
The product carries a CE Declaration of Conformity for the OT1000_C family, RoHS and Reach declarations, and CMRT for responsible sourcing. Additional environmental certifications include front IP20 protection and a documented pollution degree of 3. Some related models also reference a DNV certificate for broader compliance coverage.
Since the handle and shaft are sold separately, plan for spare parts and mounting accessories to minimize downtime. Use the available OT-C manuals and disassembly instructions to facilitate servicing. Regular inspection of screw-terminal connections and torque within 50–75 N·m helps maintain reliability and extend service life in continuous operation environments.
