ABB 1SCA022872R1500 Change-Over Switch - Declaration of Conformity CE
Part Number: 1SCA022872R1500
Quick Summary
ABB 1SCA022872R1500 Change-Over Switch delivers 1000 A four-pole changeover for reliable power distribution in industrial panels. When uptime matters, unsafe manual transfers and unprotected operation can cause costly downtime and safety incidents. This unit mitigates risk with a padlockable 0-position handle and a door interlock in I- and II- positions, ensuring safe operation during maintenance. It carries CE conformity, RoHS compliance, and a front IP20 rating, supporting regulatory alignment in modern factories. Designed for easy retrofit, the switch uses base mounting and screw terminals with a 50 mm terminal width, reducing wiring effort and enabling straightforward integration into existing switchgear and control cabinets.
Product Information
Extended Description

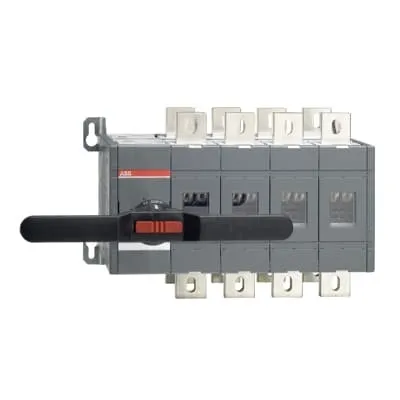

1SCA022872R1500 ABB: 1000A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
End Of Life Disassembling Instructions
OT1000-1600_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
480 mm | 18.9 in
Product Net Height
306 mm | 12.05 in
Product Net Depth / Length
309 mm | 12.17 in
Product Net Weight
42.52 kg | 93.74 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
339 mm | 13.35 in
Package Level 1 Depth / Length
534 mm | 21.02 in
Package Level 1 Height
338 mm | 13.31 in
Package Level 1 Gross Weight
44.52 kg | 98.15 lb
Package Level 1 EAN
6417019338972
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1000 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 19 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 1000 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 1000 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 560 kW | (500 V) 710 kW | (690 V) 1000 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch | 04 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
50 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
1000 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT1000_C, OT1250_C, OT1600_C, OT800U_C, OT1200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3600146
Feature: 4P, 1000 A manual change-over switch. Business impact: Enables reliable, seamless transfer between supply sources without interrupting critical loads, reducing downtime risk. Application: Used in main distribution panels and industrial AC switchgear. Feature: Padlockable 0-position handle and door interlock for I- and II- positions. Business impact: Improves lockout-tagout safety and prevents accidental operation during maintenance. Application: Service access in control cabinets and automation racks. Feature: Base mounting with screw terminals and 50 mm terminal width. Business impact: Simplifies panel integration, shortens wiring time, and enhances electrical connection reliability. Application: Retrofit projects and new builds in control panels. Feature: High current, voltage and fault protection ratings (Ui 1000 V, Uimp 12 kV, Icw 50 kA @ 1 s, Ie up to 1000 A). Business impact: Robust protection for high-energy systems, enabling safer commissioning and reduced failure risk. Application: Industrial power systems and switchgear. Feature: Compliance footprint (CE Declaration, RoHS, Reach); data sheets and manuals available. Business impact: Streamlines procurement, regulator alignment, and global deployment. Application: Global manufacturing environments and multinational projects. Feature: Clear physical footprint and documentation (480 mm W × 306 mm H × 309 mm D; 42.52 kg). Business impact: Facilitates enclosure planning, shipping, and installation accuracy. Application: Panel builders and machine manufacturers.
