ABB 1SCA022872R1680 Change-over Switch - 1000 A CE
Part Number: 1SCA022872R1680
Quick Summary
ABB 1SCA022872R1680 Change-over Switch is a heavy-duty 1000 A, three-pole device designed for safe, reliable power transfer in industrial installations. Engineers frequently face downtime and risky manual switching during changeovers in demanding electrical systems. It carries CE conformity, Front IP20 protection, and RoHS/Reach compliance—critical for safe operation and regulatory alignment. Designed for ABB EcoSolutions compatibility and easy integration into motor-control centers and switchgear, it helps reduce installation time and maintenance costs. With robust mechanical interlocks, padlockable in the 0 position and door interlocks in I- and II- positions, maintenance can be scheduled with minimal risk.
Product Information
Extended Description

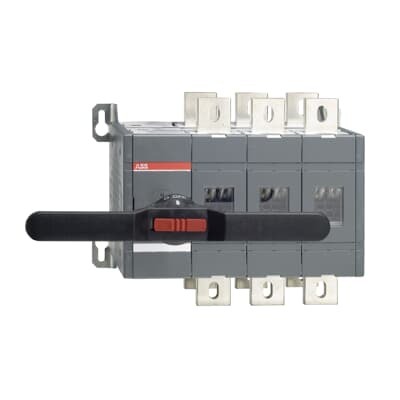

1SCA022872R1680 ABB: 1000A, 3 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
End Of Life Disassembling Instructions
OT1000-1600_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
400 mm | 15.75 in
Product Net Height
306 mm | 12.05 in
Product Net Depth / Length
309 mm | 12.17 in
Product Net Weight
48 kg | 105.82 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
500 mm | 19.69 in
Package Level 1 Depth / Length
600 mm | 23.62 in
Package Level 1 Height
550 mm | 21.65 in
Package Level 1 Gross Weight
51 kg | 112.44 lb
Package Level 1 EAN
6417019338989
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1000 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 19 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 1000 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 1000 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 560 kW | (500 V) 710 kW | (690 V) 1000 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch | 03 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
50 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
1000 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT1000_C, OT1250_C, OT1600_C, OT800U_C, OT1200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3600145
