ABB 1SCA022872R2310 Change-Over Switch - CE Declaration
Part Number: 1SCA022872R2310
Quick Summary
ABB Change-Over Switch is a four-pole power transfer solution designed for critical industrial applications. In live plant environments, downtime from undersized switches or inadequate isolation can erode productivity and increase safety risks. This model carries the CE Declaration and RoHS compliance, with additional reliability attestations (DNV certificate variants) and a front IP20 enclosure, plus a padlockable handle and door interlock for safe operation. With a robust 1600 A rating across multiple voltages and straightforward base mounting, it delivers reliable performance for power distribution and transfer applications while helping you meet regulatory requirements and maintenance targets.
Product Information
Extended Description

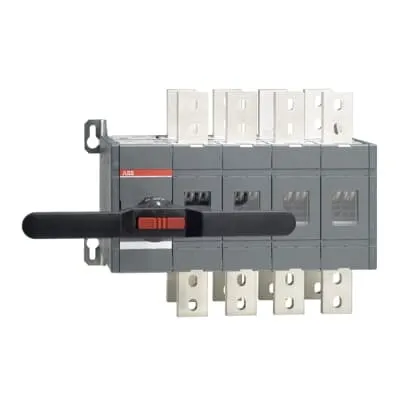

1SCA022872R2310 ABB: 1600A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
End Of Life Disassembling Instructions
OT1000-1600_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
480 mm | 18.9 in
Product Net Height
372 mm | 14.65 in
Product Net Depth / Length
309 mm | 12.17 in
Product Net Weight
48 kg | 105.82 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
480 mm | 18.9 in
Package Level 1 Depth / Length
580 mm | 22.83 in
Package Level 1 Height
420 mm | 16.54 in
Package Level 1 Gross Weight
50 kg | 110.23 lb
Package Level 1 EAN
6417019339054
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1600 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 48 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1600 A | (500 V) 1600 A | (690 V) 1600 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1600 A | (500 V) 1600 A | (690 V) 1600 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1600 A | (500 V) 1600 A | (690 V) 1600 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 1600 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 1600 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 710 kW | (500 V) 900 kW | (690 V) 1200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kiloampere rms
Switches Operating Mechanism
Mechanism at the End of the Switch | 04 (Left Side)
Terminal Type
Screw Terminals
Terminal Width
50 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
1600 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT1000_C, OT1250_C, OT1600_C, OT800U_C, OT1200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3600150
Feature: Four-pole manual change-over with 1600 A rating. Benefit: Enables simultaneous switching of all poles, reducing cross-phase faults and downtime. Application: Large manufacturing lines and data centers requiring robust source transfer. Feature: Handle and shaft included with a padlockable 0-position and door interlock. Benefit: Enhances operator safety and compliance, preventing accidental operation. Application: Cabinet and outdoor installations where safe isolation is critical. Feature: Base mounting and screw-terminal connection with 50 mm terminal width. Benefit: Simplifies installation and reduces commissioning time, while ensuring reliable torque control (50–75 N·m). Application: New builds and retrofit projects with tight space constraints. Feature: Front IP20 protection with dedicated mechanical interlocks and right-side fourth pole. Benefit: Clear enclosure protection and predictable switching behavior, minimizing fault exposure. Application: Industrial power systems demanding predictable, traceable operation. Feature: Rated up to 1000 V main circuit with 380–415 V, 500 V, and 690 V variants. Benefit: Supports diverse industrial mains without component substitution, lowering lifecycle costs. Application: Power distribution networks across global facilities expecting compliance and adaptability. Feature: Comprehensive documentation and compliance pack (CE, RoHS, CMRT, Reach). Benefit: Reduces regulatory risk and streamlines procurement with verifiable certifications. Application: Regulatory-heavy industries such as data centers and process plants seeking audit-ready equipment.
Get a Quick Quote for a ABB 1SCA022872R2310
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022872R2310?
Enquire Now
FAQs
The unit uses base mounting with screw terminals and a 50 mm terminal width. Plan for 50–75 N·m tightening torque and ensure cabinet space supports a 480 mm width, 372 mm height, and 309 mm depth footprint. The four-pole assembly is designed for front operation and standard phasing, with a top-in, bottom-out (or bottom-in, top-out) configuration to suit layout constraints.
Yes. The switch is rated at 1600 A for AC-21A/22A/23A across the specified voltages, with a main circuit rated at 1000 V. It supports a 1600 A continuous current with a short-time withstand current of 50 kA rms for 1 s, making it suitable for demanding power transfer duties in industrial environments.
Ideal for data centers, manufacturing lines, and critical loads requiring reliable source transfer and safe isolation. The 4P design ensures simultaneous switching of all poles, reducing cross-connection risk, while the padlockable 0-position and door interlock enhance personnel safety during maintenance and changeovers.
The product ships with CE Declaration for ABB transfer switches OT1000_C, OT1250_C, OT1600_C, plus RoHS compliance, CMRT, and Reach declarations. A DNV certificate is available for related configurations, and environmental data references ensure alignment with EU RoHS and other regional requirements.
With a high 1600 A rating, robust mechanical interlocks, and a padlockable 0-position, maintenance intervals can be extended while safety and reliability are maintained. Base mounting and screw-terminal connections simplify installation and future upgrades, contributing to reduced downtime during commissioning and easier servicing with standard torque values and modular, inspectable components.
