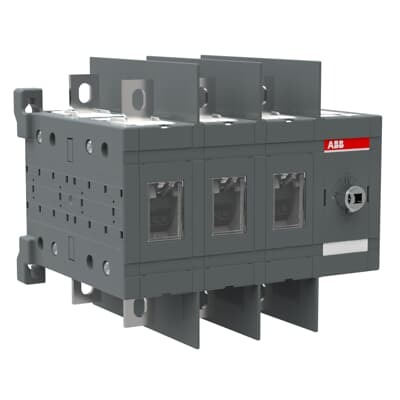

ABB 1SCA022874R2840 OT200U30C Change-Over Switch - UL
Part Number: 1SCA022874R2840
Quick Summary
ABB 1SCA022874R2840 OT200U30C Change-Over Switch is a high-current, three-pole manual device for reliable main power transfer. Engineers often struggle with safe hand-off between sources and downtime during transfers. UL-listed and IEC 60947-6-1 compliant with CE marking help meet plant safety and regulatory needs. Designed for 200 A three-phase circuits, it integrates easily into control panels to reduce installation time and total cost of ownership. The unit features front operation, base mounting, and a robust 30-degree mechanism that fits compact panel layouts while maintaining safe isolation. With documented environmental and material compliance such as CMRT, REACH, and RoHS, it supports responsible sourcing and risk mitigation across supply chains. This translates into lower maintenance costs, fewer project delays, and faster commissioning for critical equipment.
Product Information
Extended Description
1SCA022874R2840 ABB: 200A, 3 pole manual change-over switch. Handle and shaft has to be ordered separately. UL version.
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
194 mm | 7.64 in
Product Net Height
150 mm | 5.91 in
Product Net Depth / Length
160 mm | 6.3 in
Product Net Weight
2.48 kg | 5.47 lb
Package Level 1 Units
1 piece
Package Level 1 Width
186 mm | 7.32 in
Package Level 1 Depth / Length
300 mm | 11.81 in
Package Level 1 Height
185 mm | 7.28 in
Package Level 1 Gross Weight
2.78 kg | 6.13 lb
Package Level 1 EAN
6417019340173
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 250 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft not included
Mechanical Durability
8000 cycle
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 200 A | (500 V) 200 A | (690 V) 200 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 250 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 250 A
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 8 kiloampere rms
Standards
UL 98 / IEC60947-6-1
Switches Operating Mechanism
Mechanism at the End of the Switch | 30 (Right Side)
Terminal Type
Screw Terminals
Terminal Width
20 mm
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Transition Type
Open
Ampere Rating
200 A
Horsepower Rating UL/CSA
(acc. to UL 240 V) 75 Hp | (acc. to UL 480 V) 150 Hp | (acc. to UL 600 V) 200 Hp
Tightening Torque
acc. IEC 60947-1 15 ... 22 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT160E_C, OT200E_C, OT250E_C, OT200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
UNSPSC
39122233
IDEA Granular Category Code (IGCC)
5290 >> Disconnect switch
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: 200 A current rating across three phases (AC-21A/AC-22A/AC-23A) and a 1000 V rated insulation voltage. Business Impact: Enables safe, high-capacity main transfers without overheating, reducing unplanned downtime. Application: Industrial distribution boards and machine control panels operating at 380–415 V. Feature: UL 98 / IEC 60947-6-1 compliance with CE marking. Business Impact: Simplifies procurement and audit readiness, ensuring regulatory alignment. Application: Regulated manufacturing environments requiring certified disconnect switches. Feature: Front-operated, 3P, 30-degree mechanism with base mounting. Business Impact: Improves ergonomics and installation speed while preserving safe isolation, cutting commissioning time. Application: Tight-control panels where space and maintenance access are constrained. Feature: IP20 front protection and 12 kV impulse withstand voltage. Business Impact: Enhanced protection against dust ingress and surge events, increasing reliability. Application: Indoor panel assemblies in harsh workshop settings. Feature: Mechanical durability rated at 8000 cycles. Business Impact: Longer service intervals and lower replacement costs, driving lower total cost of ownership. Application: Frequent switching scenarios in conveyors, presses, and automated lines. Feature: Screw terminals with 20 mm width and 15–22 N·m tightening torque. Business Impact: Simplified field wiring with robust torque control, reducing installation variability. Application: Field wiring in control cabinets and switchgear assemblies. Feature: Three-pole, top-in, bottom-out terminal arrangement. Business Impact: Flexible wiring routes and scalable panel layouts, supporting modular design. Application: Standard industrial switchgear configurations and retrofit projects. Feature: Wide operating voltage range up to 1000 V and 12 kV Uimp rating. Business Impact: Safe operation across diverse supply voltages and short-time withstand scenarios, lowering design constraints. Application: High-power industrial installations requiring resilient switching devices.
Get a Quick Quote for a ABB 1SCA022874R2840
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA022874R2840?
Enquire Now
FAQs
Installation requires mounting the OT200U30C on a standard base within a control panel, aligning for top in-bottom out terminals as specified. Use 20 mm screw terminals and tighten to 15–22 N·m per IEC 60947-1. Ensure the panel is rated for up to 1000 V and that the operating mechanism is accessible from the front for safe operation.
The device provides a 200 A current rating across AC-21A/22A/23A with a 1000 V insulation voltage and 12 kV impulse withstand. Its three-pole configuration and front-operated design are optimized for reliable mains transfer, enabling quick source changeovers with reduced arc exposure in industrial environments.
Yes. It is designed to UL 98 and IEC 60947-6-1 compliant, with CE declarations where applicable. It also carries RoHS information and CMRT data for material compliance, supporting regulatory requirements for industrial switchgear procurement and installation.
The OT200U30C offers an 8000-cycle mechanical durability rating, reducing maintenance interventions and extending mean time between failures. Note that the handle and shaft are ordered separately, which can influence spare parts planning and lifecycle costs in extended automation projects.
With high durability, 200 A current capability, and robust compliance (UL, IEC, CE), the switch reduces downtime and maintenance costs while simplifying compliance audits. Its base mounting and screw-terminal design also shorten installation time, contributing to a favorable ROI in medium-to-high volume panel builds.
