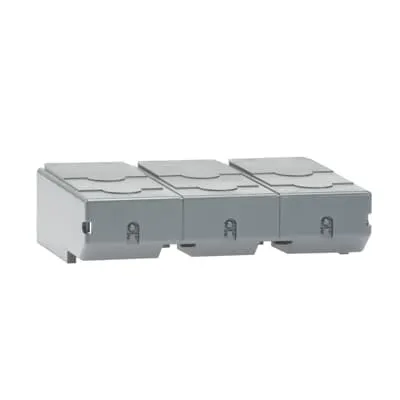

ABB 1SCA100390R1001 Terminal Shroud - RoHS Compliant
Part Number: 1SCA100390R1001
Quick Summary
ABB 1SCA100390R1001 Terminal Shroud enables safe, clean terminations for low-voltage switchgear installations. Engineers often struggle with exposed terminals and misalignment during panel assembly, leading to damage and costly downtime. This accessory provides RoHS compliance, REACH Declaration, and CMRT documentation to support responsible sourcing and regulatory alignment, while UL status notes no certification needed. The design combines a compact 150 mm width with snap-on mounting and a lightweight 0.1 kg weight, simplifying field upgrades and standardizing installation practices. In practice, this translates to faster wiring, reduced fault-prone configurations, and easier maintenance across industrial automation, electrical protection, and control panels. For procurement, it supports traceability and supplier risk management while aligning with ETIM and eClass classifications.
Product Information
Extended Description
1SCA100390R1001 ABB: OSS400G3SS TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
1SCC311018M0002
Mechanical Drawings
OSS400G3SS.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Estonia (EE)
Product Net Width
150 mm
Product Net Height
39.7 mm
Product Net Depth / Length
108 mm
Product Net Weight
0.1 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
30 mm
Package Level 1 Depth / Length
200 mm
Package Level 1 Height
110 mm
Package Level 1 Gross Weight
0.1 kg
Package Level 1 EAN
6417019353791
Mounting Type
Snap-on mounting
Special Functions
SS
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
Feature: Snap-on mounting provides quick, repeatable installation with minimal misalignment, reducing assembly time in control cabinets. Business Impact: lowers field labor costs and accelerates commissioning, delivering faster project turnover. Application: ideal for ABB OS and fusegear panel layouts in industrial automation environments. Feature: Compact footprint—150 mm wide, 39.7 mm high, 108 mm deep—delivers a secure fit in tight enclosures. Business Impact: improves enclosure packing density and simplifies retrofits. Application: suitable for new builds and panel expansions where space is at a premium. Feature: Material compliance documentation (CMRT, REACH Declaration, RoHS Status) ensures regulatory compliance. Business Impact: reduces supplier risk, supports audits, and eases procurement. Application: use in regions with RoHS and REACH requirements. Feature: Certifications and declarations (CMRT, REACH, RoHS) plus ETIM and eClass alignment streamline procurement workflows. Business Impact: supports quick supplier qualification and smooth audits. Application: globally sourced equipment with compliant supply chains. Feature: Packaging and origin details—minimum order quantity 1 piece, EAN 6417019353791, origin Estonia—assist inventory planning and logistics. Application: ideal for stocking in regional distribution centers and for scheduled maintenance.
Get a Quick Quote for a ABB 1SCA100390R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA100390R1001?
Enquire Now
FAQs
The OSS400G3SS Terminal Shroud is designed for ABB low-voltage systems and uses snap-on mounting for quick, repeatable fit on OS and fusegear panels. It aligns with standard ABB control cabinet layouts, supports easy field replacement, and minimizes misalignment during installation.
Key dimensions are 150 mm width, 39.7 mm height, and 108 mm depth, with a nominal weight of 0.1 kg. It ships as a single piece per box and is intended for straightforward, tool-free installation via snap-on mounting.
Material compliance includes CMRT (Conflict Minerals), REACH Declaration for AC switches and fusegear, and RoHS status under EU Directive 2011/65/EU and Amendment 2015/863, helping meet regulatory requirements in many regions.
UL Certificate: No certification needed for this terminal shroud, reflecting its role as a protective accessory rather than a standalone electrical device. It also aligns with ETIM EC002498, eClass 27371392, and WEEE guidance that the product is not in the WEEE scope.
Snap-on mounting enables fast, repeatable installation with reduced risk of misalignment, lowering labor time and downtime. It also simplifies replacements during maintenance, supports vibration resistance in harsh environments, and minimizes the need for rewiring during panel upgrades.
