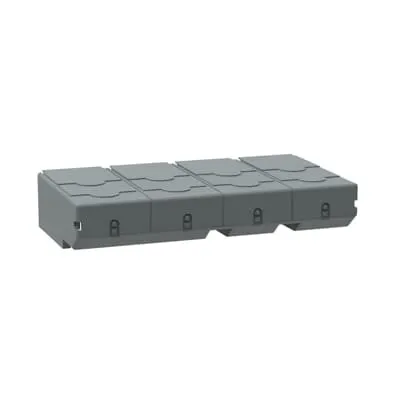

ABB 1SCA100392R1001 Terminal Shroud - SSL for LV Switchgear
Part Number: 1SCA100392R1001
Quick Summary
ABB 1SCA100392R1001 Terminal Shroud protects terminations and streamlines wiring in low‑voltage switchgear. Installers often battle space constraints and cross-wiring, risking shorts and costly downtime. It complies with RoHS and REACH, and is CMRT-verified, supporting responsible sourcing and regulatory readiness. With snap-on mounting and standard packaging in Finland, it enables faster, error-free panel assembly and consistent terminal protection, helping engineers achieve QA targets and reduce total cost of ownership in electrical protection and circuit control applications. Its 200 mm width and 39.7 mm height deliver predictable clearance in compact panels, supporting scalable designs and easier procurement through ETIM/EC classifications. Designed for compatibility with ABB OS and OS1 accessory ecosystems, ensuring straightforward installation and minimal field adjustments.
Product Information
Extended Description
1SCA100392R1001 ABB: OSS400G4SSL TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
1SCC311018M0002
Mechanical Drawings
OSS400G4SSL.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
200 mm
Product Net Height
39.7 mm
Product Net Depth / Length
108 mm
Product Net Weight
0.2 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
30 mm
Package Level 1 Depth / Length
200 mm
Package Level 1 Height
110 mm
Package Level 1 Gross Weight
0.2 kg
Package Level 1 EAN
6417019353807
Mounting Type
Snap-on mounting
Special Functions
SSL
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
Feature: Snap-on mounting enables tool-free, rapid installation, reducing panel assembly time and labor costs. Business impact: Faster commissioning and lower field fault rates translate to improved project timelines and lower total cost of ownership. Application: Ideal for busy control panels and modular expansions where speed and repeatability matter. Feature: SSL (Special Function) provides secure fitting and protection against accidental dislodgement and incidental ingress. Business impact: Enhanced panel reliability and reduced maintenance calls, especially in vibration-prone environments. Application: Critical in LV protection and circuit-control assemblies where terminations must stay secure over time. Feature: Material compliance with RoHS, REACH, and CMRT. Business impact: Regulatory readiness and transparent supply-chain disclosures, reducing compliance risk in multinational projects. Application: Suitable for global deployments and supplier audits. Feature: Precise dimensions and weight (200 mm width, 39.7 mm height, 108 mm depth, 0.2 kg). Business impact: Predictable fit in compact enclosures, standardization across fleets, and easier BOM management. Application: Works with compact switchgear enclosures and standardized panel layouts. Feature: Availability of mechanical drawings and datasheets (OSS400G4SSL.stp; Data Sheet, Technical Information). Business impact: Speeds up engineering validation and import into CAD, improving design accuracy. Application: Supports engineering teams during layout verification and procurement. Feature: Global classifications and packaging data (ETIM 8/9, eClass, WEEE). Business impact: Streamlined purchasing data, improved catalog searchability, and compliant end-of-life handling. Application: Enables procurement systems to match parts to exact specs in ERP workflows.
Get a Quick Quote for a ABB 1SCA100392R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA100392R1001?
Enquire Now
FAQs
The product uses a snap-on mounting system, enabling tool-free, rapid installation and reducing panel assembly time. This minimizes field labor and misalignment risks, supporting faster commissioning in busy LV switchgear environments and improving overall project timelines.
Key dimensions are 200 mm in width, 39.7 mm in height, and 108 mm in depth, with a net weight of 0.2 kg. These specifications ensure predictable clearance in compact enclosures and compatibility with standard panel layouts, aiding accurate BOM and space planning.
Yes. The shroud carries RoHS information and a REACH declaration, and CMRT verification is provided to support responsible sourcing. This helps meet regulatory requirements and supplier compliance audits across global projects.
It is designed for low-voltage switchgear terminations, providing terminal protection and organized wiring in protection and control panels. The SSL feature adds secure fitment, reducing the risk of loose connections in vibration-prone installations and improving long-term panel reliability.
Packaging is listed as box 1 piece per unit, with manufacturing origin in Finland. The minimum order quantity is 1 piece, and tariff classification is 85389099. ETIM 8/9 and eClass classifications aid procurement, while WEEE status indicates the product is not in WEEE scope.
