ABB 1SCA100396R1001 Terminal Shroud - RoHS Status & CMRT
Part Number: 1SCA100396R1001
Quick Summary
ABB 1SCA100396R1001 Terminal Shroud protects terminal connections in control cabinets. This accessory addresses the common challenge of exposed terminations and labeling drift during panel assembly. It carries RoHS information, a Reach declaration, and CMRT data to support compliant sourcing, while UL tooling notes indicate no certification needed for this part. In practice, this solution delivers safe, durable terminal coverage with fast installation, reducing wiring errors and maintenance costs. For systems integrators, this means smoother panel builds and predictable supply chain compliance while maintaining focus on overall reliability and performance.
Product Information
Extended Description

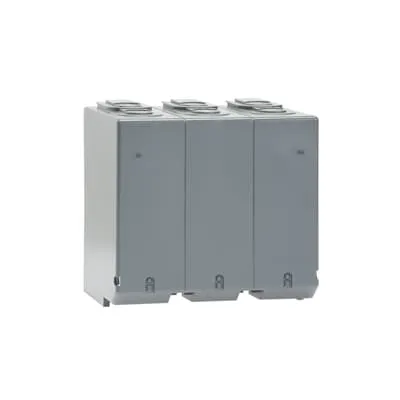

1SCA100396R1001 ABB: OSS400G3LS TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
1SCC311018M0002
Mechanical Drawings
OSS400G3LS.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
150 mm
Product Net Height
140.5 mm
Product Net Depth / Length
108 mm
Product Net Weight
0.2 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
100 mm
Package Level 1 Depth / Length
200 mm
Package Level 1 Height
110 mm
Package Level 1 Gross Weight
0.2 kg
Package Level 1 EAN
6417019353838
Mounting Type
Snap-on mounting
Special Functions
LS
UL Certificate
No certification needed
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
UNSPSC
39122221
IDEA Granular Category Code (IGCC)
5219 >> Switch part or accessory
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
Feature → Business Impact → Application: Snap-on mounting enables tool-free installation, cutting panel build time and labor costs while ensuring repeatable fits across ABB switchgear assemblies for faster commissioning in control panels. Feature → Business Impact → Application: LS designation indicates compatibility with ABB accessory families, supporting streamlined part harmonization and reduced spare-part complexity in electrical protection and circuit control cabinets. Feature → Business Impact → Application: RoHS information, Reach declaration, and CMRT data provide regulatory assurance for global deployments, minimizing compliance risk and simplifying supplier audits in industrial facilities. Feature → Business Impact → Application: Precise dimensions—150 mm width, 140.5 mm height, 108 mm depth—plus a 0.2 kg net weight enable accurate panel space planning and logistics optimization for assemblies in low-voltage switchgear. Feature → Business Impact → Application: 1 piece minimum order and Finland origin support lean procurement and traceability in manufacturing environments, helping engineers meet project timelines and sourcing flexibility.
Get a Quick Quote for a ABB 1SCA100396R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA100396R1001?
Enquire Now
FAQs
The OSS400G3LS Terminal Shroud is an ABB accessory designed for terminal protection on low-voltage switchgear, enabling safe coverage of terminations in control cabinets and panel assemblies. It aligns with ABB’s accessory ecosystem and is intended for use with snap-on mounting configurations in standard ABB panel builds.
The shroud uses snap-on mounting, allowing tool-free, rapid installation with repeatable positioning. This reduces assembly time, minimizes the need for additional fasteners, and improves consistency across panels, which is particularly valuable in high-volume manufacturing environments and field retrofits.
The part provides RoHS information (RoHs Declaration), a Reach Declaration, and CMRT data. This matters for global deployments to ensure material compliance, simplify supplier audits, and meet regulatory requirements in regions with strict environmental and sourcing rules.
Product net width is 150 mm, net height 140.5 mm, and net depth 108 mm, with a net weight of 0.2 kg. Packing information indicates box-level packaging with 1 piece per unit, aiding space planning, inventory, and shipping calculations for enclosure assemblies.
The terminal shroud lists Finland (FI) as the country of origin and has a minimum order quantity of 1 piece, supporting lean procurement and simpler supply chain planning for mission-critical panel builds.
