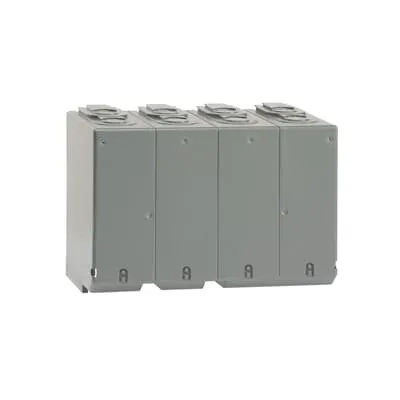

ABB 1SCA100400R1001 Terminal Shroud with LSR

Snap-on mounting enables tool-free installation, trimming on-site commissioning time and reducing wiring misroutes during panel buildouts. This translates to lower labor costs and more consistent terminations across batches. It is particularly advantageous when integrating with ABB OS and fusegear assemblies in control panels and cabinet enclosures. LSR functionality stabilizes the shroud, helping prevent movement that could abrade conductors or expose live parts in vibration-prone environments. The result is fewer field interventions and longer service intervals. This is especially beneficial on high-throughput automated lines and packaging equipment where quick access is routine. Material compliance is built in, with RoHS and REACH declarations and CMRT support for conflict minerals. Your procurement and audits benefit from clear regulatory documentation and reduced supplier risk. The part is suitable for global manufacturing footprints requiring harmonized standards across EU and beyond. Its dimensions—200 mm net width, 140.5 mm net height, and 108 mm net depth—combined with a 0.3 kg net weight, optimize panel seating. The slim profile supports dense installations without compromising cable routing or heat management. This makes it a practical fit for space-constrained electrical protection and circuit-control cabinets. CAD data and technical resources are readily available, including OSS400G4LSR.stp, the data sheet, and mechanical drawings. ETIM 8/9 classification and eClass 27371392 mapping ease cataloging in ERP and procurement systems. The documentation set ensures consistent part replacements and accelerates design validation.
