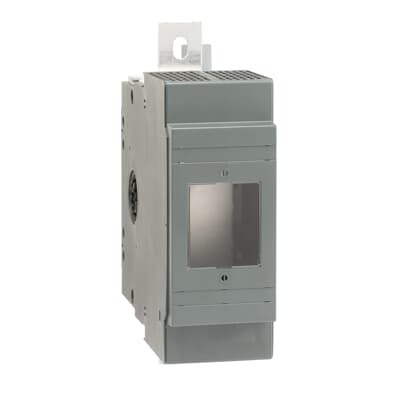

ABB 1SCA100432R1001 OSP800N Fourth Pole - 690 V AC
Part Number: 1SCA100432R1001
Quick Summary
ABB 1SCA100432R1001 is a protective switch for industrial panels and machine control, enabling safe isolation of main circuits. In demanding environments, engineers confront mounting torque, limited space, and complex compliance requirements that slow project timelines. With RoHS and REACH declarations, plus CMRT for responsible sourcing and ETIM classification, this device meets strict procurement standards. By leveraging screw mounting and a 690 V AC main circuit rating, it delivers robust installation, reliable performance, and a lower total cost of ownership for control panels and machine safety circuits. This enables smoother panel builds and easier maintenance in industries such as packaging, metals, and automotive manufacturing.
Product Information
Extended Description
1SCA100432R1001 ABB: OSP800N FOURTH POLE
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS600-800
Mechanical Drawings
OSP600-800_.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
88 mm
Product Net Height
306 mm
Product Net Depth / Length
233 mm
Product Net Weight
4.4 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
240 mm
Package Level 1 Depth / Length
335 mm
Package Level 1 Height
120 mm
Package Level 1 Gross Weight
4.4 kg
Package Level 1 EAN
6417019353630
Mounting Type
Screw mounting
Power Loss
at Rated Current 75 W
Rated Operational Voltage
Main Circuit 690 V AC
Special Functions
N
Terminal Type
Lug terminals
Tightening Torque
50 … 75 N·m
Tightening Torque
50 … 75 N·m
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
Feature → Business Impact → Application: High voltage capability of 690 V AC on the main circuit ensures safe disconnection in high-energy environments, reducing risk and improving system reliability during startup and fault conditions. This translates to fewer unscheduled stops and a smoother commissioning process for industrial automation lines. Application: control panels in packaging and metals fabrication where reliable isolation is critical. Feature → Compliance and sourcing clarity via CMRT, REACH, and RoHS declarations; impact: supplier risk mitigation, easier governance, and faster procurement; application: any regulated market needing traceability and material compliance. Feature → Mechanical robustness with 50–75 N·m tightening torque and lug terminals; impact: secure, vibration-resistant connections that endure harsh plant environments; application: cabinet backplanes and switchgear assemblies in automotive and food & beverage lines. Feature → Clear documentation and compatibility with OS600-800 family including mechanical drawings; impact: reduced design risk, faster integration, and standardization across projects; application: engineering workflows and panel shop fabrication. Feature → Compact footprint and 4.4 kg weight; impact: easier rack mounting and lower housing stress, enabling denser layouts and cost savings on enclosure real estate; application: space-constrained control rooms and compact machines.
Get a Quick Quote for a ABB 1SCA100432R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA100432R1001?
Enquire Now
FAQs
The unit uses screw mounting with lug terminals. Install it directly to a flat panel, secure conductors in the lug terminals, and tighten to 50–75 N·m. Ensure the main circuit voltage is within 690 V AC and consult the OS600-800 data sheet for installation clearances and safety guidelines.
Yes. The OSP800N Fourth Pole is part of the OS600-800 family and is designed for compatibility with OS switches and fusegear. Refer to the provided mechanical drawings (OSP600-800_.stp) and data sheets to confirm mounting dimensions and interface details for seamless integration.
This device carries CMRT – Conflict Minerals Reporting Template, REACH Declaration for AC switches and fusegear, and RoHS information. It aligns with ETIM 8/9 classifications and eClass 27371392, supporting compliance reporting and product classification in regulated markets.
With a 690 V AC main circuit rating and 75 W power loss at rated current, the component minimizes heat generation while delivering reliable isolation. This informs thermal budgeting, enclosure sizing, and cooling requirements, enabling safer, more efficient panel design and longer component life.
Product width is 88 mm, height 306 mm, depth 233 mm, and weight 4.4 kg. These dimensions influence space planning in control cabinets and the determination of mounting surfaces, ensuring proper clearance for terminals and service access.
