ABB 1SCA100433R1001 OSP800D Fourth Pole - CMRT/RoHS
Part Number: 1SCA100433R1001
Quick Summary
ABB 1SCA100433R1001 OSP800D Fourth Pole provides reliable high-capacity switching for low-voltage switchgear in industrial control panels. Engineers often face installation delays and mounting complexity; this unit supports screw mounting with lug terminals to speed commissioning and reduce wiring errors. It carries CMRT, RoHS, and REACH declarations, ensuring traceability and compliance during supplier audits. Designed for 690 V AC mains, it delivers robust protection coordination while enabling safer, more efficient maintenance programs, lower downtime, and smoother procurement processes for automation projects.
Product Information
Extended Description

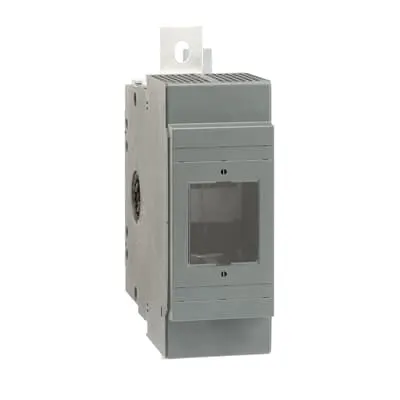

1SCA100433R1001 ABB: OSP800D FOURTH POLE
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
Switch fuses OS600-800
Mechanical Drawings
OSP600-800_.stp
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
88 mm
Product Net Height
306 mm
Product Net Depth / Length
233 mm
Product Net Weight
4.2 kg
Package Level 1 Units
box 1 piece
Package Level 1 Width
240 mm
Package Level 1 Depth / Length
335 mm
Package Level 1 Height
120 mm
Package Level 1 Gross Weight
4.2 kg
Package Level 1 EAN
6417019353647
Mounting Type
Screw mounting
Power Loss
at Rated Current 75 W
Rated Operational Voltage
Main Circuit 690 V AC
Special Functions
D
Terminal Type
Lug terminals
Tightening Torque
50 … 75 N·m
Tightening Torque
50 … 75 N·m
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
Feature → Business Impact → Application: The OSP800D Fourth Pole uses screw mounting and lug terminals, enabling secure, vibration-tolerant connections in rugged environments, which reduces rework and improves installation speed on new control panels. This translates to tangible labor savings and faster time-to-production in industrial automation projects. Feature → Business Impact → Application: With a rated operational voltage of 690 V AC and 75 W power loss at rated current, it supports high-demand distribution needs while keeping thermal performance predictable, improving system reliability in power-intensive applications. Feature → Business Impact → Application: CMRT, REACH, and RoHS declarations provide supply-chain transparency, helping OEMs meet strict procurement audits and regulatory requirements without added compliance costs. Feature → Business Impact → Application: Lug terminal connections and 50–75 N·m tightening torque deliver consistent wiring integrity, supporting long-term maintenance and reduced contact resistance in fusegear assemblies. Feature → Business Impact → Application: The compact dimensions (88 mm width, 306 mm height, 233 mm depth) and 4.2 kg weight simplify enclosure planning and enable straightforward integration with OS600-800 series setups. Feature → Business Impact → Application: By aligning with ETIM 8/9 classifications and ABB’s OS fusegear ecosystem, engineers gain predictable compatibility, minimizing redesigns and accelerating project handoffs for industrial control panels.
Get a Quick Quote for a ABB 1SCA100433R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA100433R1001?
Enquire Now
FAQs
Focus on screw mounting alignment and correct lug-terminal wiring. Use a tightening torque of 50–75 N·m to ensure secure connections, verify the 88 mm width and 233 mm depth fit within the enclosure, and confirm the 4.2 kg weight doesn’t exceed panel load ratings. Follow the included mechanical drawings (OSP600-800_.stp) for accurate mounting clearances.
The OSP800D Fourth Pole is designed for mains protection and control up to 690 V AC, with a specified power loss of 75 W at rated current to manage thermal performance. Its lug-terminal construction supports secure wiring under high electrical stress, while screw mounting delivers reliable mechanical integrity in challenging industrial environments.
This product carries CMRT, RoHS, and REACH declarations, offering traceability for conflict minerals, restricted substances, and chemical compliance. For procurement, these certifications simplify supplier audits, ensure regulatory alignment for European and global supply chains, and reduce risk during product qualification and end-user approvals.
Yes. The OSP800D is specified for OS fusegear families (OS/S fusegear) and uses the same mounting philosophy with lug terminals. Verify mechanical compatibility with the Mechanical Drawings file and ensure proper wiring to the OS fusegear and main circuit connections, maintaining the recommended torque and enclosure clearances.
Expect reduced commissioning time due to straightforward screw mounting and wiring, lower risk of loose connections with precise tightening torque, and improved uptime from stable 690 V AC operation. Compliance declarations (RoHS/REACH/CMRT) also lower audit-related costs and simplify supplier qualification, contributing to total cost of ownership reductions over the equipment lifecycle.
