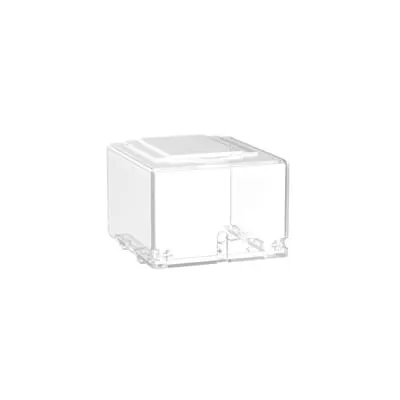

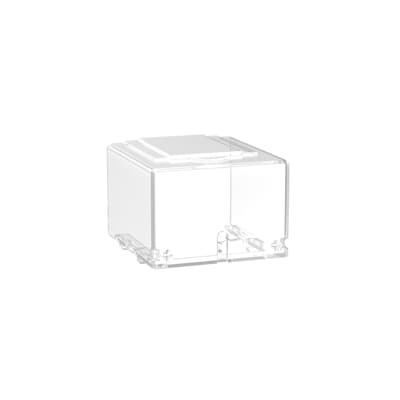

ABB 1SCA103097R1001 Terminal Shroud - RoHS Compliant
Part Number: 1SCA103097R1001
Quick Summary
ABB 1SCA103097R1001 terminal shroud protects terminal connections in OSS800T1S/3 motor drive assemblies. This accessory helps keep wiring organized and reduces contact risk in compact control cabinets. In dense panel layouts, uninsulated terminals can cause downtime and training overhead; a dedicated shroud minimizes those issues by providing clear isolation and quick, repeatable installations. The solution aligns with RoHS, Reach, and CMRT declarations, supporting compliant procurement and traceability. By standardizing the terminal interface, it also simplifies spares handling and reduces mis-mating during maintenance, delivering measurable gains in reliability and uptime. For panel builders and integrators, this accessory translates into safer assemblies, faster commissioning, and lower total-cost-of-ownership in low-voltage motor control environments.
Product Information
Extended Description
1SCA103097R1001 ABB: OSS800T1S/3 TERMINAL SHROUD
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Switches, Switch fuses OS and OSM, OS1GB Catalog PDF
Instructions and Manuals
No Instructions and Manuals needed
Minimum Order Quantity
1 piece
Customs Tariff Number
85389099
Country of Origin
Finland (FI)
Product Net Width
88 mm
Product Net Height
62.4 mm
Product Net Depth / Length
95.5 mm
Product Net Weight
0.001 kg
Package Level 1 Units
bag 3 piece
Package Level 1 Width
200 mm
Package Level 1 Depth / Length
100 mm
Package Level 1 Height
100 mm
Package Level 1 Gross Weight
0.001 kg
Package Level 1 EAN
6417019375960
Handle Type
Handle and shaft included
Special Functions
S/3
Object Classification Code
N/A
ETIM 8
EC002498 - Accessories/spare parts for low-voltage switch technology
ETIM 9
EC002498 - Accessories/spare parts for low-voltage switch technology
eClass
V11.1 : 27371392
WEEE Category
Product Not in WEEE Scope
Feature CMRT, Reach and RoHS compliance → Benefit simplifies regulatory audits and supplier qualification, reducing onboarding time for new vendors in regulated markets; Application OS and fusegear assemblies in low-voltage switchgear. Feature Compact dimensions (88 mm W x 62.4 mm H x 95.5 mm D) and light weight (0.001 kg) → Benefit enables tighter panel layouts and easier handling during installation; Application OSS800T1S/3 terminal areas. Feature Handle and shaft included; Special Function S/3 → Benefit enables quick, secure hand installation and reliable terminal protection; Application field replacements and service upgrades. Feature Documentation presence (CMRT, Reach Declaration, RoHS Information) → Benefit streamlines compliance documentation and reduces procurement friction; Application ABB catalog compatibility and OS/OSM switchgear integration. Feature Packaging and origin details (Finland FI; 1 piece MOQ; EAN 6417019375960) → Benefit supports traceability, shipping planning, and clear supplier requirements; Application global supply chain and inventory management. Feature ETIM 8/9 and eClass classifications → Benefit improves system-wide part categorization for MRO and ERP systems; Application parts catalogs and digital procurement workflows.
Get a Quick Quote for a ABB 1SCA103097R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA103097R1001?
Enquire Now
FAQs
The 1SCA103097R1001 terminal shroud is designed to fit the OSS800T1S/3 enclosure area and is suitable for OS and fusegear configurations referenced in ABB's catalog. The part is compatible with low-voltage switchgear assemblies, and its dimensions are matched to the 88 mm by 62.4 mm by 95.5 mm footprint to ensure proper fit and terminal isolation.
Key specifications include a width of 88 mm, a height of 62.4 mm, and a depth of 95.5 mm, with a net weight of 0.001 kg. It is designed for the OSS800T1S/3 platform, and the packaging is noted as bagged in sets of three pieces for efficient stocking and ready installation.
Yes. The product carries RoHS declarations, a Reach Declaration, and CMRT documentation, ensuring compliance with EU and global material restrictions for electrical components used in low-voltage switchgear and motor control environments. This supports regulatory audits and sustainable procurement practices.
Installers should align the shroud with the OSS800T1S/3 terminal area, ensuring full seating and proper engagement of the included handle and shaft. Since it is designed as a protective cover, it minimizes exposure of live terminals, reducing the risk of accidental contact and improving long-term reliability during maintenance and upgrades.
The shroud enhances safety and reduces assembly time, leading to lower labor costs during commissioning and maintenance. Its compliance documentation reduces regulatory overhead, while its compatible dimensions and lightweight design lower handling risk and part fatigue, contributing to fewer unscheduled downtimes in panel assemblies.
