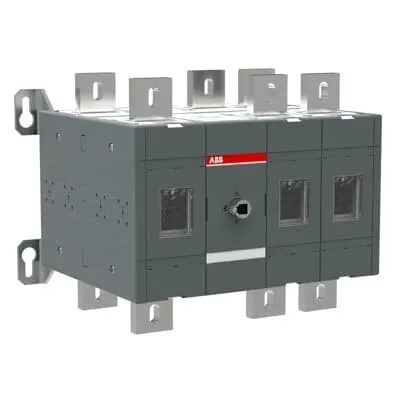

ABB 1SCA103286R1001 Change-over Switch - 1000 A, Front IP20
Part Number: 1SCA103286R1001
Quick Summary
ABB 1SCA103286R1001 Change-over Switch is a robust 3-pole manual transfer device for main power switching in switchgear. Engineers face delays when high-current units require separate handles and shafts, plus complex documentation. This model supports demanding industrial environments with clear compliance documentation, robust performance, and straightforward installation. It carries a CE declaration of conformity and a DNV certificate, while meeting RoHS and Reach requirements for responsible sourcing. Front IP20 protection and a pollution rating of 3 ensure suitability for indoor, climate-controlled installations. By pairing this unit with ABB EcoSolutions, you gain reliability, easier maintenance, and predictable lifecycle costs, while enabling compliant, scalable power transfer in large switchgear arrays.
Product Information
Extended Description
1SCA103286R1001 ABB: 1000A, 3 pole manual change-over switch. Handle and shaft has to be ordered separately.
End Of Life Disassembling Instructions
OT1000-1600_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
400 mm | 15.75 in
Product Net Height
306 mm | 12.05 in
Product Net Depth / Length
309 mm | 12.17 in
Product Net Weight
48 kg | 105.82 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
440 mm | 17.32 in
Package Level 1 Depth / Length
700 mm | 27.56 in
Package Level 1 Height
565 mm | 22.24 in
Package Level 1 Gross Weight
49 kg | 108.03 lb
Package Level 1 EAN
6417019377995
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1000 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft not included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 19 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 1000 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 1000 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 560 kW | (500 V) 710 kW | (690 V) 1000 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 12 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
50 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
1000 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT1000_C, OT1250_C, OT1600_C, OT800U_C, OT1200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature: 1000 A rated current with a 3-pole configuration enables robust main power transfer in heavy-load switchgear. Business impact: reduces the risk of unplanned interruptions and supports reliable operation for high-demand processes. Application: ideal for main distribution in packaging lines, metalworking, or process plants where downtime is costly. Feature: Front IP20 protection and Pollution Degree 3 rating provide internal defense against accidental contact in indoor environments. Business impact: enhances operator safety and simplifies compliance with workplace protection standards. Application: suitable for controlled plant rooms and cabinet-mounted installations. Feature: Ui 1000 V, Uki 12 kV, and a tightening torque of 50–75 N·m on screw terminals ensure secure electrical connections. Business impact: delivers consistent electrical performance under peak voltages and mechanical stresses. Application: supports reliable field assembly in high-voltage switchgear. Feature: Base mounting with 3P front-operated design and 50 mm terminal width simplifies installation and maintenance. Business impact: reduces installation time, minimizes wiring errors, and eases future upgrades. Application: ideal for retrofit projects and new builds in large industrial facilities. Feature: 400 x 306 x 309 mm footprint and 48 kg weight provide a robust, stable platform for high-current switching. Business impact: improves vibration resilience and installation predictability in demanding environments. Application: suited for fixed installations in switchgear cabinets and control rooms. Feature: Handle and shaft are ordered separately, enabling modular customization and reduced stocking complexity. Business impact: lowers total cost of ownership by allowing operators to source exactly the required accessories. Application: compatible with standard ABB handles and accessories for easy field adaptation.
