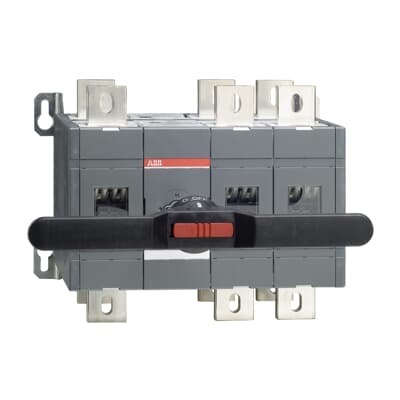

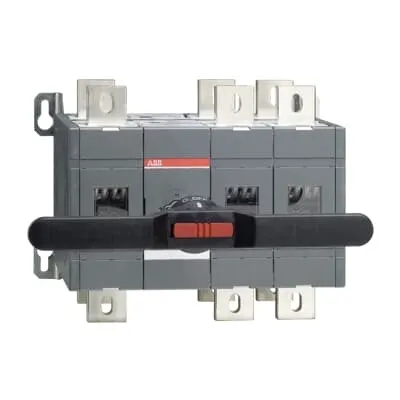

ABB 1SCA103287R1001 Change-Over Switch - CE Certified
Part Number: 1SCA103287R1001
Quick Summary
ABB 1SCA103287R1001 is a high-capacity three-pole manual change-over switch designed for reliable mains switching in industrial plants. Engineers often face downtime and unsafe manual transfers; this unit provides door interlocks and padlockable positioning to prevent unintentional operation. It carries CE conformity, a DNV certificate for OT16-2500_C, and RoHS/Reach declarations, affirming compliance across regulatory and environmental standards. By combining robust mechanical design with straightforward installation, this solution reduces maintenance overhead and extends equipment life, delivering predictable performance. With compatibility for ABB EcoSolutions, base mounting, and screw-terminal wiring, it also supports efficient panel build-outs and safer, compliant switchgear in demanding applications.
Product Information
Extended Description
1SCA103287R1001 ABB: 1000A, 3 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
End Of Life Disassembling Instructions
OT1000-1600_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
400 mm | 15.75 in
Product Net Height
306 mm | 12.05 in
Product Net Depth / Length
309 mm | 12.17 in
Product Net Weight
48 kg | 105.82 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
500 mm | 19.69 in
Package Level 1 Depth / Length
600 mm | 23.62 in
Package Level 1 Height
550 mm | 21.65 in
Package Level 1 Gross Weight
49 kg | 108.03 lb
Package Level 1 EAN
6417019378008
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1000 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 19 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1000 A | (500 V) 1000 A | (690 V) 1000 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 1000 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 1000 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 560 kW | (500 V) 710 kW | (690 V) 1000 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 12 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
50 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
1000 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT1000_C, OT1250_C, OT1600_C, OT800U_C, OT1200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3600153
Feature 1000 A rating and 3P configuration enables handling heavy motor loads with minimal voltage drop, delivering consistent performance in power distribution. Business Impact This capability translates to reduced downtime during transfers and safer operation in high-demand environments. Application Use in central electrical distributions within industrial panels and switchgear enclosures. Feature Padlockable in 0-position and door interlock in I- and II-positions supports lockout/tagout practices and prevents accidental operation, protecting maintenance personnel and preserving system integrity. Business Impact Improves safety compliance and minimizes risk of unexpected switching, leading to fewer incident investigations and faster maintenance cycles. Application Suitable for regulated facilities requiring formalized access control during service windows. Feature Base mounting and screw-terminal wiring with 50 mm terminal width simplifies installation and field wiring, reducing wiring errors and ensuring robust connections. Business Impact Shortens panel assembly time and improves wiring reliability, cutting commissioning costs. Application Ideal for panel builders and retrofit projects where steady, repeatable installation is essential. Feature High-level protection and electrical ratings including 1000 V rated insulation, 12 kV impulse withstand, and 50 kA short-time withstand support reliable performance under fault conditions. Business Impact Enhances safety margins and compliance with international standards, reducing risk of arc flash and device failure. Application Suitable for critical processes and heavy-duty machines in manufacturing and process industries. Feature Environmental and compliance credentials such as CE Declaration, RoHS/Reach, and DNV certification provide regulatory assurance. Business Impact Lowers procurement risk and accelerates audits for customer projects, enabling faster project approvals. Application Useful for industries with stringent supplier qualification requirements. Feature Mechanical design includes 3P, front-operated operation with defined line terminal positions (Top In - Bottom Out, Bottom In - Top Out) for predictable installation. Business Impact Improves operability and inspection ease, supporting rapid maintenance planning. Application Fits standard switchgear assemblies and new builds alike.
Get a Quick Quote for a ABB 1SCA103287R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA103287R1001?
Enquire Now
FAQs
Plan for base mounting with screw terminals and 50 mm terminal width. Ensure proper torque per IEC 60947-1 (50–75 N·m) and secure line terminals. Use the 0-position padlock and door interlocks during service to comply with lockout/tagout procedures and prevent accidental switching during panel maintenance.
It supports 1000 A rated current across AC-21A, AC-22A, and AC-23A at voltages up to 1000 V. It provides a 12 kV rated impulse withstand voltage (Uimp) and a short-time withstand current of 50 kA for 1 s, suitable for high-demand motor and process applications.
Yes. The product carries CE Declaration of Conformity, RoHS information and status, and Reach declarations. It is also backed by a DNV certificate for related OT variants, providing regulatory assurance across key international standards.
Ideal for central electrical distribution, panel builders, and switchgear enclosures in manufacturing and process industries. It supports heavy loads (1000 A) with safe transfer, lockout capability, and straightforward wiring, enabling reliable supply switching in complex plant layouts.
Refer to ABB EcoSolutions EOIs and disassembly guidance (OT1000-1600_C). Regularly inspect padlockability, door interlocks, and tightening torque (IEC 60947-1). Use available manuals and data sheets to ensure compliance during service and maximize uptime by following the recommended lifecycle procedures.
