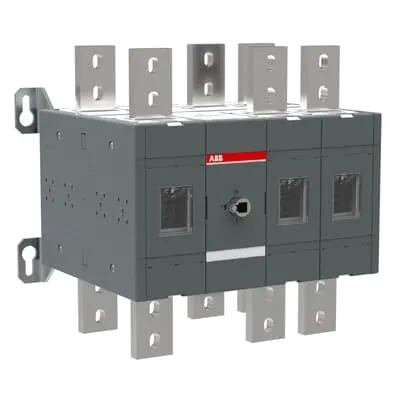

ABB 1SCA103292R1001 Change-Over Switch - IP20
Part Number: 1SCA103292R1001
Quick Summary
ABB 1SCA103292R1001 Change-Over Switch is a high-capacity, three-pole manual transfer device designed for industrial switchgear applications. It safely transfers power between sources, helping maintain uptime in critical processes and preventing arc-related outages. Engineers often struggle to find a unit that meets current-carrying demands without compromising safety or serviceability during maintenance. This model delivers CE conformity, RoHS compliance, and CMRT/REACH environmental declarations to support global regulatory requirements, while offering front IP20 protection for reliable operation in panel-mounted environments. With base mounting and a 3P configuration, it scales to growing installations and simplifies wiring, installation, and future upgrades in manufacturing lines, process plants, and data centers.
Product Information
Extended Description
1SCA103292R1001 ABB: 1600A, 3 pole manual change-over switch. Handle and shaft has to be ordered separately.
End Of Life Disassembling Instructions
OT1000-1600_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
400 mm | 15.75 in
Product Net Height
372 mm | 14.65 in
Product Net Depth / Length
309 mm | 12.17 in
Product Net Weight
37.37 kg | 82.39 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
394 mm | 15.51 in
Package Level 1 Depth / Length
534 mm | 21.02 in
Package Level 1 Height
368 mm | 14.49 in
Package Level 1 Gross Weight
39.62 kg | 87.35 lb
Package Level 1 EAN
6417019378053
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1600 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft not included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 48 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1600 A | (500 V) 1600 A | (690 V) 1600 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1600 A | (500 V) 1600 A | (690 V) 1600 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1600 A | (500 V) 1600 A | (690 V) 1600 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 1600 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 1600 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 710 kW | (500 V) 900 kW | (690 V) 1200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 12 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
50 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
1600 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT1000_C, OT1250_C, OT1600_C, OT800U_C, OT1200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
Feature → Business Impact → Application: The 1600 A conventional free-air thermal current (Ith) rating and 3P, front-operated design deliver robust switching capacity for high-demand switchgear, reducing the risk of overloads and facilitating safe, manual transfers in control panels. This translates to measurable uptime gains and fewer nuisance trips in heavy-usage environments. Application: Main switchboards and process plants requiring reliable high-current switching at up to 1000 V and 12 kV impulse withstand, with 50 mm terminal width for straightforward wiring and 50–75 N·m tightening torque for consistent terminations. Feature → Business Impact → Application: Front IP20 protection and base mounting streamline installation, improve dust protection during maintenance, and enable straightforward retrofits in existing enclosures. Application: Control cabinets and machine rooms where quick, service-friendly access is essential. Feature → Business Impact → Application: 3P operation with defined line terminal positions Top In – Bottom Out or Bottom In – Top Out supports flexible layouts and efficient cable management in multi-source transfer scenarios. Application: Industrial power distribution and emergency transfer systems. Feature → Business Impact → Application: Rated Operational Current AC-23A/AC-22A/AC-21A up to 1600 A across 380–690 V variants ensures consistent performance across common industrial voltages, reducing the need for multiple SKUs. Application: Mains distribution in manufacturing lines and process automation. Feature → Business Impact → Application: 12 kV rated impulse withstand and 1000 V insulation voltage improve safety margins and compliance with electrical safety standards, minimizing protective device coordination concerns. Application: High-energy environments where transient voltages are a concern, such as data centers and heavy industry.
