ABB 1SCA103293R1001 Change-Over Switch - 1600A, IP20 CE
Part Number: 1SCA103293R1001
Quick Summary
ABB 1SCA103293R1001 Change-Over Switch is a high-current switching solution for distribution panels and switchgear applications. Engineers often struggle with safe manual transfer during faults, limited space, and the need for robust interlocks. This unit carries CE conformity, RoHS and REACH compliance, plus an IP20 front protection rating to help you meet regulatory and safety requirements. With 3‑pole base mounting and a padlockable 0-position, it delivers reliable transfer performance while simplifying installation in OEM panels and retrofit projects. The combination supports easier procurement and reduced total cost of ownership through standardized, documented specifications.
Product Information
Extended Description

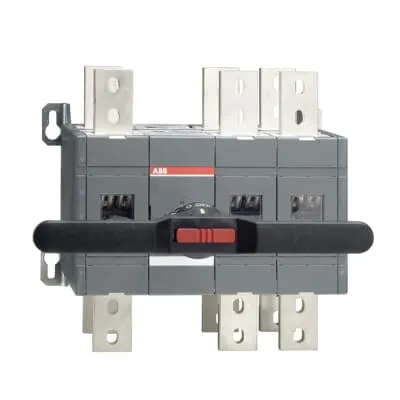

1SCA103293R1001 ABB: 1600A, 3 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
End Of Life Disassembling Instructions
OT1000-1600_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
400 mm | 15.75 in
Product Net Height
372 mm | 14.65 in
Product Net Depth / Length
309 mm | 12.17 in
Product Net Weight
38.22 kg | 84.26 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
394 mm | 15.51 in
Package Level 1 Depth / Length
534 mm | 21.02 in
Package Level 1 Height
368 mm | 14.49 in
Package Level 1 Gross Weight
40.32 kg | 88.89 lb
Package Level 1 EAN
6417019378060
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1600 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
3P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 48 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1600 A | (500 V) 1600 A | (690 V) 1600 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1600 A | (500 V) 1600 A | (690 V) 1600 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1600 A | (500 V) 1600 A | (690 V) 1600 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 1600 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 1600 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 710 kW | (500 V) 900 kW | (690 V) 1200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 12 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
50 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
1600 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT1000_C, OT1250_C, OT1600_C, OT800U_C, OT1200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3600165
Three-pole manual change-over mechanism with shaft and bolt set enables secure hand-operated transfers; the padlockable 0-position and door interlock reduce the risk of accidental switching during maintenance. This translates to safer lockout scenarios and improved operator confidence, enabling compliant maintenance in MCCs and panel boards. High current rating of 1600 A at 380–415 V (and 500/690 V variants) delivers greater feeder capacity without paralleling multiple devices; the result is lower footprint and simpler wiring in large switchgear, data centers, and heavy industry installations. Front protection IP20, base mounting, and screw terminals with 50 mm width simplify mounting and termination; the result is faster installation and reduced wiring errors in control cabinets and switchgear enclosures. Comprehensive compliance data, including CE Declaration of Conformity, RoHS, REACH, and CMRT, supports regulatory audits and supplier QA. Dimensions and weight details—400 mm width, 372 mm height, 309 mm depth and 38.22 kg net weight—facilitate accurate space planning and logistics for OEMs and installers.
