ABB 1SCA103303R1001 OT1600E22CP Change-Over - IP65 Handle
Part Number: 1SCA103303R1001
Quick Summary
ABB 1SCA103303R1001 OT1600E22CP Change-Over Switch provides high-current power transfer for reliable distribution in industrial plants. Engineers often struggle with safe transfer sequences, lockout compliance, and downtime during switching. This solution aligns CE conformity, RoHS compliance, and IP65-rated handling to European standards while tolerating harsh environments. By integrating a 1600 A four-pole design with base mounting, it streamlines procurement, improves downtime metrics, and supports scalable protection in modern switchgear installations.
Product Information
Extended Description

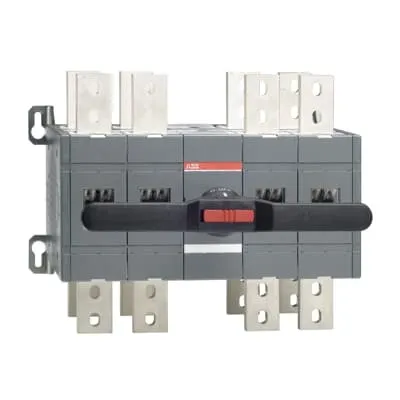

1SCA103303R1001 ABB: 1600A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
End Of Life Disassembling Instructions
OT1000-1600_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
480 mm | 18.9 in
Product Net Height
372 mm | 14.65 in
Product Net Depth / Length
309 mm | 12.17 in
Product Net Weight
47.66 kg | 105.07 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
394 mm | 15.51 in
Package Level 1 Depth / Length
534 mm | 21.02 in
Package Level 1 Height
368 mm | 14.49 in
Package Level 1 Gross Weight
50.1 kg | 110.45 lb
Package Level 1 EAN
6417019378084
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1600 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 48 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1600 A | (500 V) 1600 A | (690 V) 1600 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1600 A | (500 V) 1600 A | (690 V) 1600 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1600 A | (500 V) 1600 A | (690 V) 1600 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 1600 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 1600 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 710 kW | (500 V) 900 kW | (690 V) 1200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 22 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
50 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
1600 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT1000_C, OT1250_C, OT1600_C, OT800U_C, OT1200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641575
Feature → Business Impact → Application: Four-pole, 1600 A rating enables safe, high-load transfer for large motors and heavy loads, reducing voltage drop and equipment wear in main feeders. This translates to fewer unscheduled shutdowns and lower maintenance costs in continuous-process industries. Application: large manufacturing lines and district cooling systems requiring robust power transfer. Feature → Lockout-enabled safety: Padlockable in the 0-position with door interlock in I and II positions, reducing operator error and improving compliance with lockout-tagout programs. Application: critical maintenance windows and safe sequence operations in electrical rooms. Feature → Base mounting and screw terminals with 50 mm terminal width deliver straightforward installation and reliable connections, minimizing field wiring issues. Application: retrofit projects and OEM panel builds seeking fast commissioning. Feature → 48 W per pole power loss under rated conditions supports thermal management planning and energy accounting. Application: systemic efficiency tracking in high-current switchgear. Feature → Compliance and environmental data including CE, RoHS, CMRT, Reach, and 1SCC303050D0201 provide regulatory assurance. Application: procurement audits and supplier qualification for regulated industries. Feature → Mechanical design with front-operated action and a robust 4P configuration enables easy integration with existing control systems. Application: space-constrained panels and centralized control schemes in automation corridors.
Get a Quick Quote for a ABB 1SCA103303R1001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in ABB 1SCA103303R1001?
Enquire Now
FAQs
Installation uses base mounting with screw terminals spaced at 50 mm. Torque should be tightened to 50–75 N·m per IEC 60947-1, ensuring tight, vibration-resistant connections. The device supports top-in/bottom-out terminal orientation and features a padlockable 0-position handle with door interlock to prevent accidental transfer during maintenance.
The switch is rated for 1600 A Ith, with a main circuit insulation voltage of 1000 V. It supports AC-23A, AC-22A, and AC-33B operating currents at 380–415 V, 500 V, and 690 V, respectively, and provides a 12 kV rated impulse withstand. These specs make it suitable for high-current distribution and motor-start applications.
Yes. With 4P configuration, 1600 A rating, and 710 kW to 1200 kW nominal reach depending on voltage, the OT1600E22CP is well-suited for motor switching and power transfer in large plant sections. The front-operated mechanism and lockout features support safe, reliable operation in drive and line sections with frequent transfer needs.
The OT1600 series includes a CE Declaration of Conformity and RoHS compliance, with CMRT and Reach environmental declarations. A DNV certificate exists for related OT16-2500_C variants, and the design supports RoHS and WEEE considerations, facilitating regulatory alignment and supplier qualification for regulated industries.
Maintenance benefits include a padlockable 0-position handle and door interlock for safe lockout, documented disassembly instructions in ABB EcoSolutions, and a modular nature with base mounting and screw terminals simplifying field adjustments. These features reduce downtime, extend service life, and ease spare-part planning in long-term asset management.
