ABB 1SCA103306R1001 Change-Over Switch - CE Declaration
Part Number: 1SCA103306R1001
Quick Summary
ABB 1SCA103306R1001 change-over switch provides reliable 4-pole main-circuit switching for industrial power distribution. Maintenance teams face challenges with safe hand-off and lockout during transitions. It carries CE conformity, RoHS and Reach declarations, plus a Front IP20 rating to meet global safety and environmental standards. Designed for base mounting in control panels and ABB EcoSolutions environments, it enables fast installation, reduces downtime, and ensures consistent performance under heavy loads. With a 480 mm width and 309 mm depth, it facilitates scalable, rugged panel designs and straightforward integration into existing switchgear.
Product Information
Extended Description

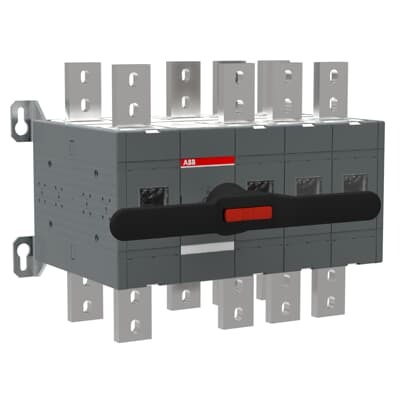

1SCA103306R1001 ABB: 1600A, 4 pole manual change-over switch including a black plastic IP65 I-0-II pistol type handle (see the table below), shaft and bolt set for the cable connection. Handle padlockable in the 0-position, door interlock in the I- and II- positions and when padlocked.
End Of Life Disassembling Instructions
OT1000-1600_C Disassembly Instructions
Environmental Information
1SCC303050D0201
Conflict Minerals Reporting Template (CMRT)
CMRT - Conflict Minerals Reporting Template
REACH Declaration
Reach Declaration / AC Switches and Fusegear
RoHS Information
RoHs Declaration / AC Switches and Fusegear
RoHS Status
Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
Data Sheet, Technical Information
Transfer, change-over and bypass switches. Catalogue OTC1GB 23-04
Instructions and Manuals
Manual change-over and transfer switches OT-C
Degree of Protection
Front IP20
Environmental Information
1SCC303050D0201
Pollution Degree
3
Minimum Order Quantity
1 piece
Customs Tariff Number
85365080
Country of Origin
Finland (FI)
Product Net Width
480 mm | 18.9 in
Product Net Height
372 mm | 14.65 in
Product Net Depth / Length
309 mm | 12.17 in
Product Net Weight
47.66 kg | 105.07 lb
Package Level 1 Units
box 1 box
Package Level 1 Width
394 mm | 15.51 in
Package Level 1 Depth / Length
534 mm | 21.02 in
Package Level 1 Height
368 mm | 14.49 in
Package Level 1 Gross Weight
50.1 kg | 110.45 lb
Package Level 1 EAN
6417019378206
Conventional Free-air Thermal Current (Ith)
Θ = 40 °C 1600 A
Degree of Protection
Front IP20
Distance Between Phases
Standard
Fourth Pole Position
Right Side
Fourth Pole Type
Switched - Simultaneous Function
Handle Color
Black
Handle Type
Handle and shaft included
Mounting Type
Base mounting
Number of Poles
4P
Operating Mode
Front operated
Pollution Degree
3
Position of Line Terminals
Top In - Bottom Out, Bottom In - Top Out
Power Loss
at Rated Operating Conditions per Pole 48 W
Rated Impulse Withstand Voltage (Uimp)
12 kV
Rated Insulation Voltage (Ui)
1000 V
Rated Operational Current AC-21A (Ie)
(380 ... 415 V) 1600 A | (500 V) 1600 A | (690 V) 1600 A
Rated Operational Current AC-22A (Ie)
(380 ... 415 V) 1600 A | (500 V) 1600 A | (690 V) 1600 A
Rated Operational Current AC-23A (Ie)
(380 ... 415 V) 1600 A | (500 V) 1600 A | (690 V) 1600 A
Rated Operational Current AC-31B (Ie)
(380 ... 415 V) 1600 A
Rated Operational Current AC-33B (Ie)
(380 ... 415 V) 1600 A
Rated Operational Power AC-23A (Pe)
(380 ... 415 V) 710 kW | (500 V) 900 kW | (690 V) 1200 kW
Rated Operational Voltage
Main Circuit 1000 V
Rated Short-time Withstand Current Low Voltage (Icw)
for 1 s 50 kiloampere rms
Switches Operating Mechanism
Mechanism Between the Poles | 13 (Between the Poles)
Terminal Type
Screw Terminals
Terminal Width
50 mm
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Transition Type
Open
Ampere Rating
1600 A
Tightening Torque
acc. IEC 60947-1 50 ... 75 N·m
Declaration of Conformity - CE
Declaration of Conformity / OT1000_C, OT1250_C, OT1600_C, OT800U_C, OT1200U_C
DNV Certificate
DNV Certificate / OT16-2500_C
Object Classification Code
Q
ETIM 8
EC000216 - Switch disconnector
ETIM 9
EC000216 - Switch disconnector (low voltage)
eClass
V11.1 : 27371403
WEEE Category
5. Small Equipment (No External Dimension More Than 50 cm)
E-Number (Finland)
3641572
Feature: High current capability with 4P design and 1600 A rating → Business Impact: Enables reliable switching for large motors and feeders, reducing voltage drop and improving efficiency in high-load applications. Application: Main switchgear in production lines and processing plants. Feature: Padlockable 0-position and door interlock in I- and II- positions → Business Impact: Enhances maintenance safety by preventing accidental energization and enabling secure lockout, lowering the risk of injury. Application: Safe maintenance in live equipment areas. Feature: Front IP20 protection and robust mechanical construction → Business Impact: Provides enclosure safety and durability in standard indoor environments, reducing unscheduled downtime due to contamination or dust ingress. Application: Control panels and switchgear assemblies in factories. Feature: Base mounting with 50 mm terminal width and screw terminals → Business Impact: Simplifies installation, wiring, and torque control, speeding up panel assembly and service replacements. Application: New builds and retrofit projects in electrical rooms. Feature: Compliance and declarations (CE, RoHS, Reach) → Business Impact: Ensures regulatory alignment, supplier risk reduction, and easier customer audits. Application: Global deployments requiring traceable environmental and safety compliance. Feature: Detailed electrical ratings (U i 1000 V, U imp 12 kV, I cw 50 kA for 1 s) → Business Impact: Supports high-energy switching with reliable transient withstand and insulation margins, increasing system reliability. Application: Heavy-duty transfer and control circuits in process industries.
